Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the air cleaner outlet duct clamps from the throttle body.
  2. Loosen the air cleaner outlet duct clamps from the mass airflow sensor.
  3. Remove the air cleaner outlet duct.

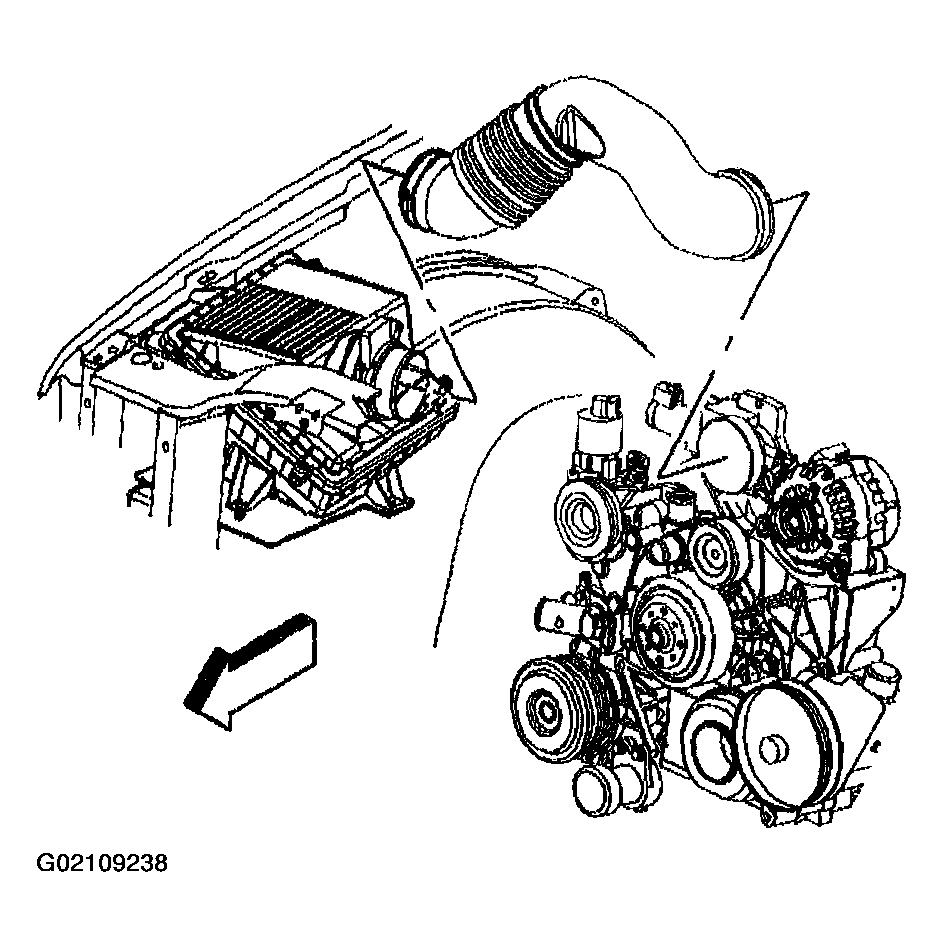

    Fig 1: Remove Air Cleaner Outlet Duct
    G02109238Courtesy of GENERAL MOTORS CORP.
  4. If equipped remove the throttle body heater hose retainer from the fan shroud.
  5. If equipped remove the inlet radiator hose retainer from the fan shroud.
  6. Remove the fan shroud retainers.
    Fig 2: Remove Fan Shroud Retainers
    G02109239Courtesy of GENERAL MOTORS CORP.
  7. Remove the fan shroud bolts
  8. Remove the upper fan shroud.

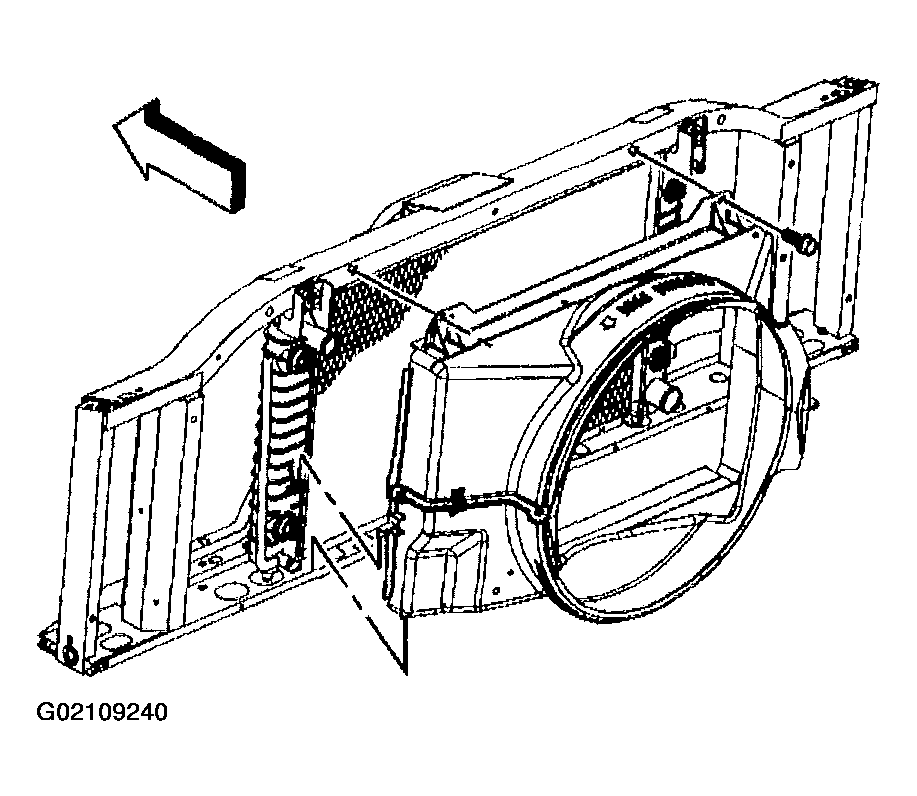

    Fig 3: Remove Upper Fan Shroud & Bolts
    G02109240Courtesy of GENERAL MOTORS CORP.
