Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.
  1. Remove the engine mount-to-engine mount bracket bolts. (Right side shown, left side similar).

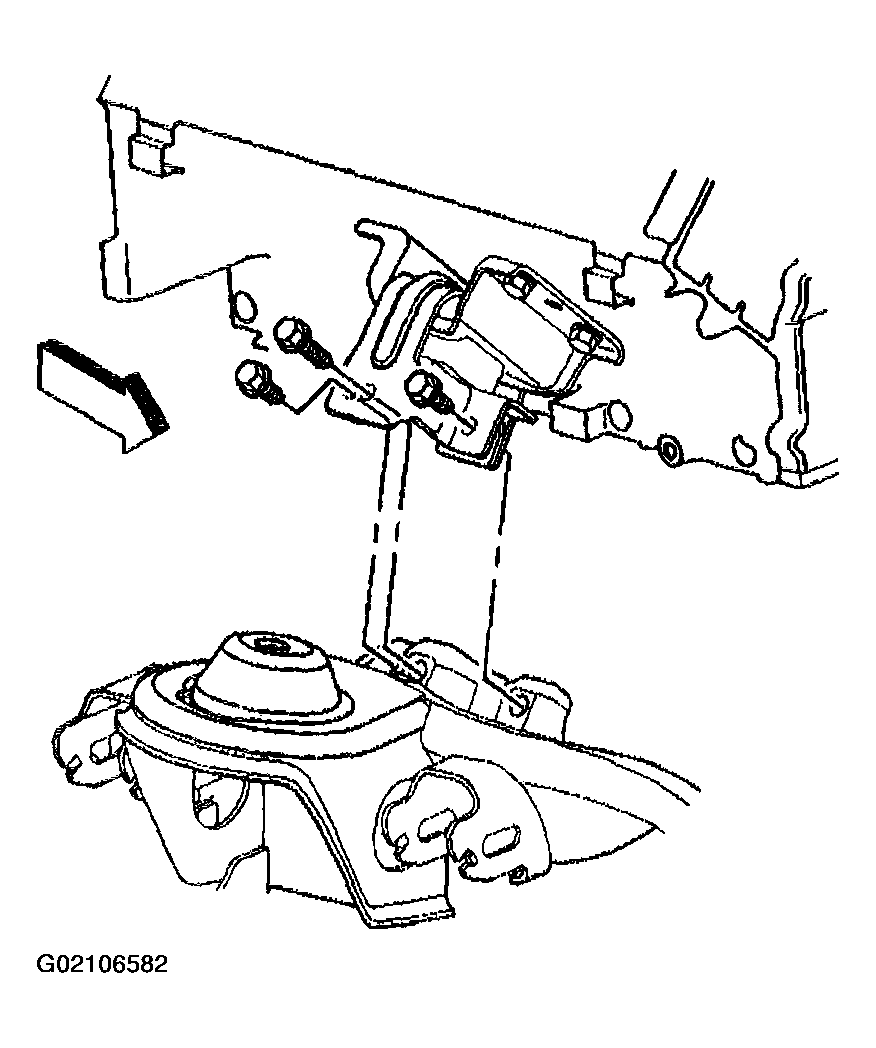

    Fig 1: Removing Engine Mount-To-Engine Mount Bracket Bolts
    G02106582Courtesy of GENERAL MOTORS CORP.
  2. If vehicle is a 2 wheel drive (2WD), raise the vehicle to a height to work through the front wheelhouse opening.
  3. If vehicle is a 4 wheel drive (4WD), raise the vehicle in order to remove the front tires and wheels.
  4. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Remove the wheelhouse inner panel push pin retainers (2).
  6. Remove the wheelhouse inner panel (1).

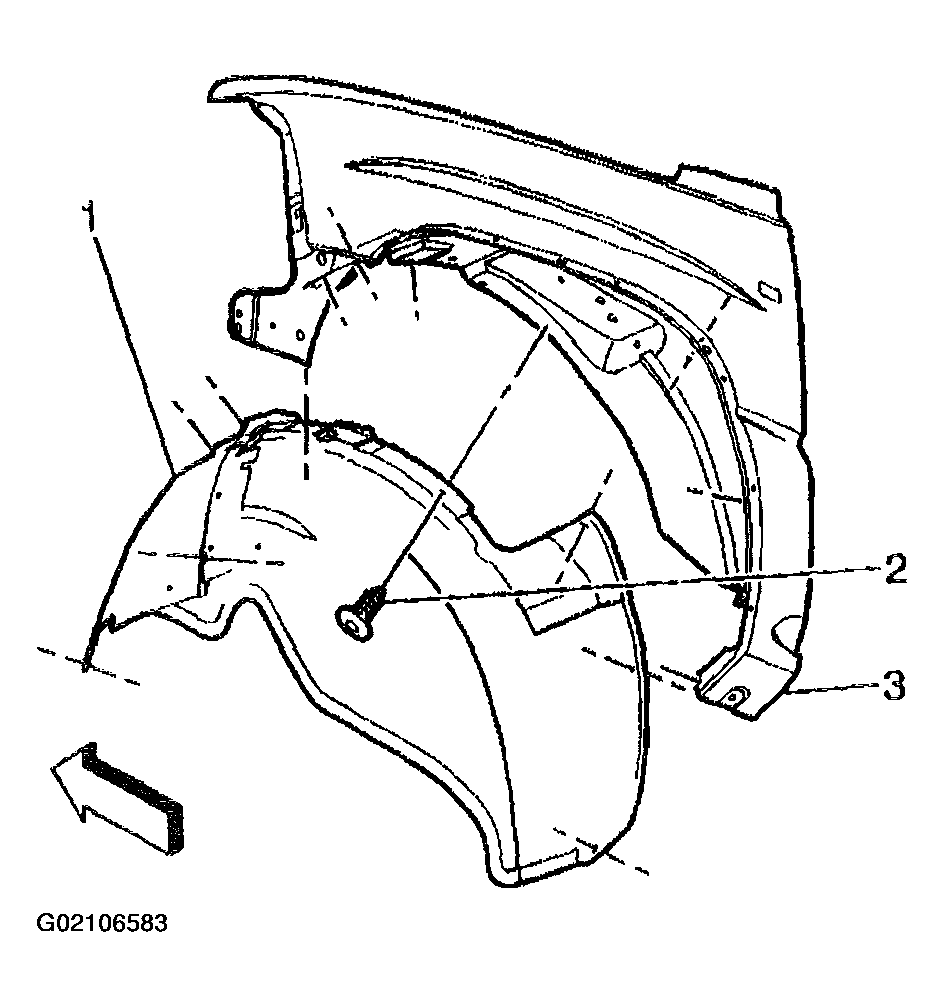

    Fig 2: Removing Wheelhouse Inner Panel & Push Pin Retainers
    G02106583Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine shield bolts.
  8. Remove the engine shield.
    IMPORTANT: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.
  9. Raise and suitably support the engine using adjustable (screw type) jack stands.

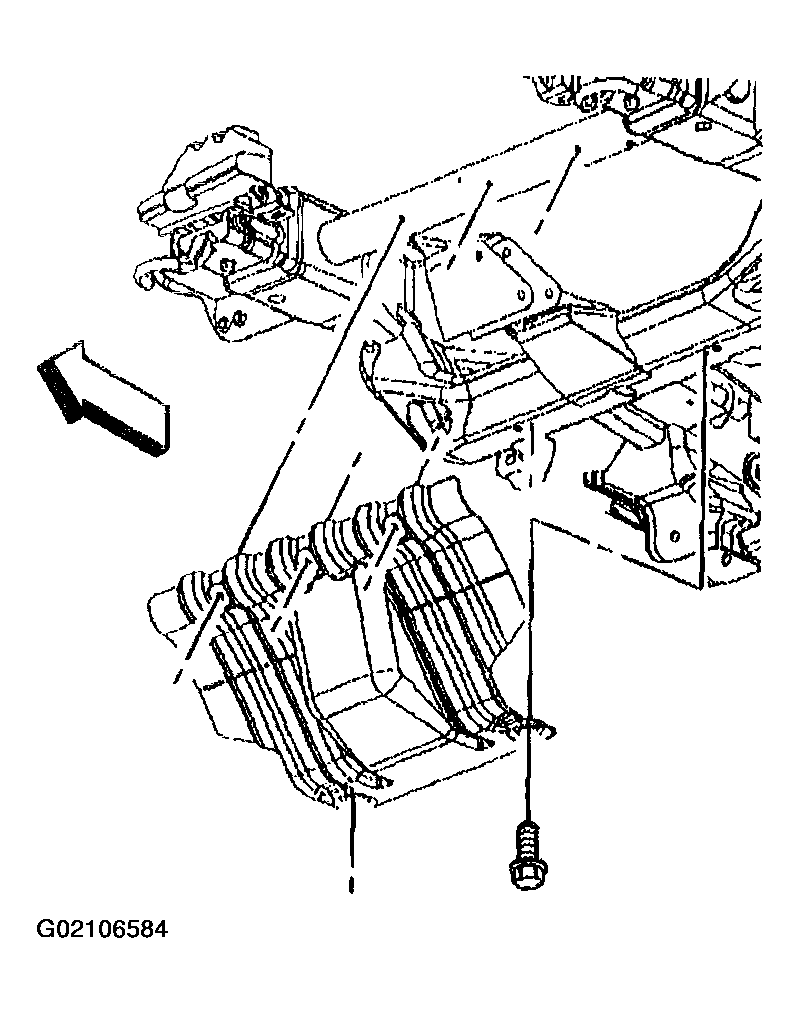

    Fig 3: Removing Engine Shield & Bolts
    G02106584Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine mount bolts.
  11. For vehicles with 4WD, remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .
  12. Remove the left engine mount.

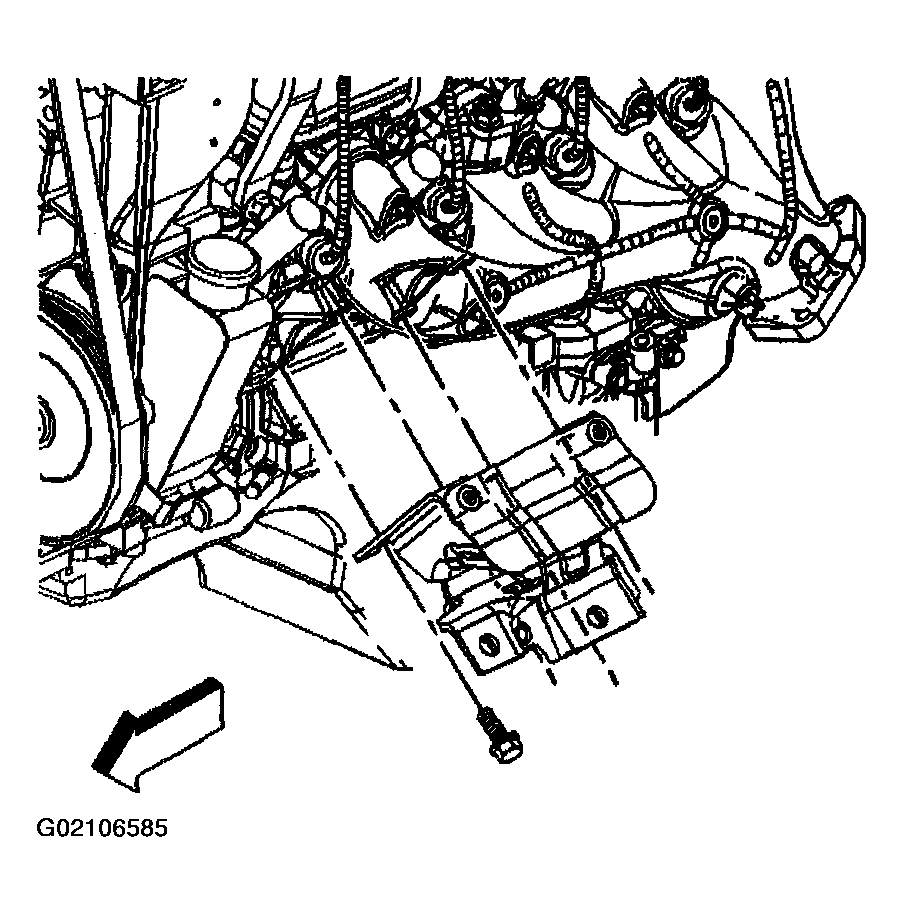

    Fig 4: Removing Left Engine Mount & Bolts
    G02106585Courtesy of GENERAL MOTORS CORP.
