Engine Flywheel Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a 3 stage tightening process.
  1. Remove the engine flywheel bolts.
  2. Remove the automatic transmission engine flywheel.

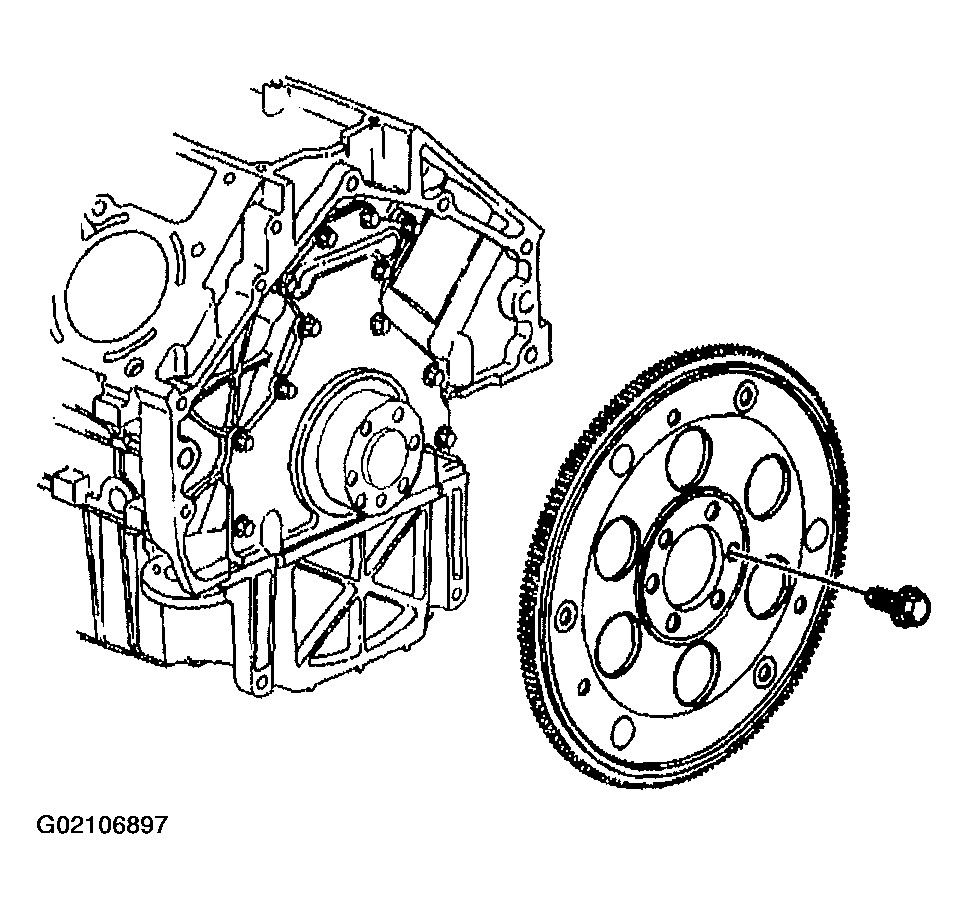

    Fig 1: Removing Engine Flywheel & Bolts
    G02106897Courtesy of GENERAL MOTORS CORP.
  3. Install 2 M11x1.5 mm bolts (1) into the threaded holes of the spacer, if applicable.
  4. Rotate the bolts clockwise to remove the spacer.

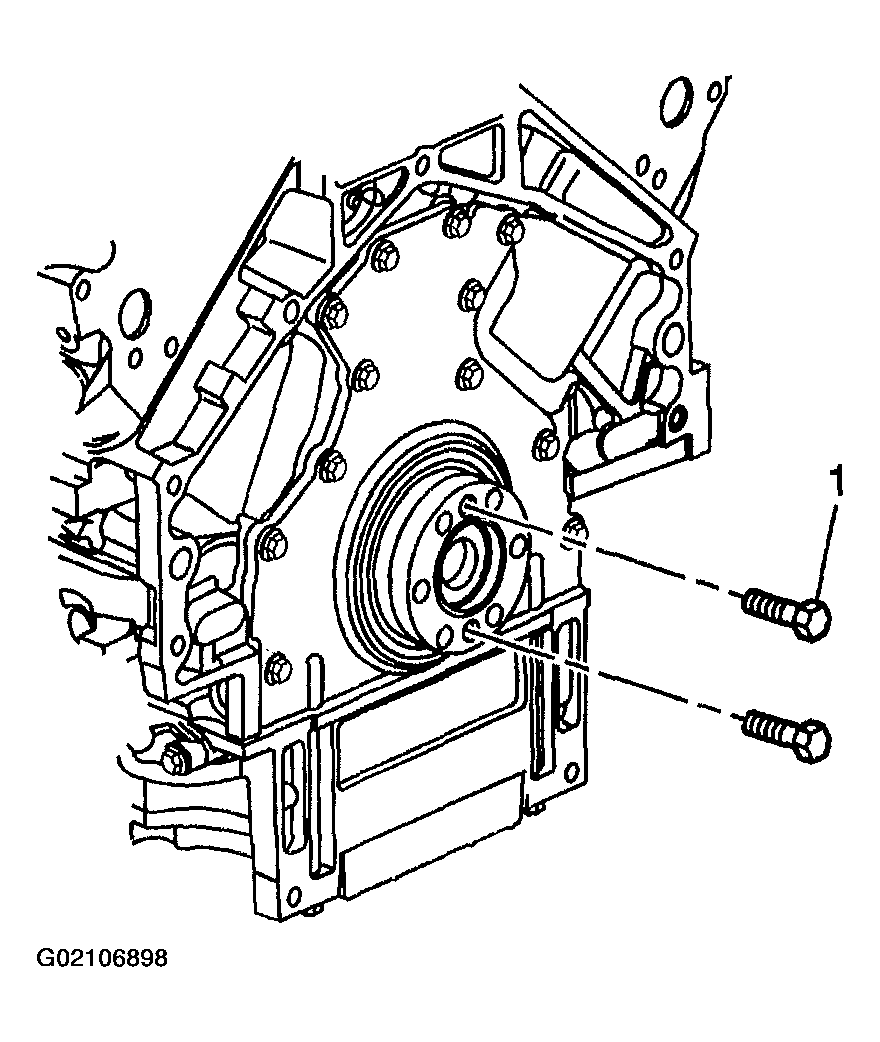

    Fig 2: Installing Bolts
    G02106898Courtesy of GENERAL MOTORS CORP.
  5. Remove the spacer from the rear of the crankshaft, if applicable.

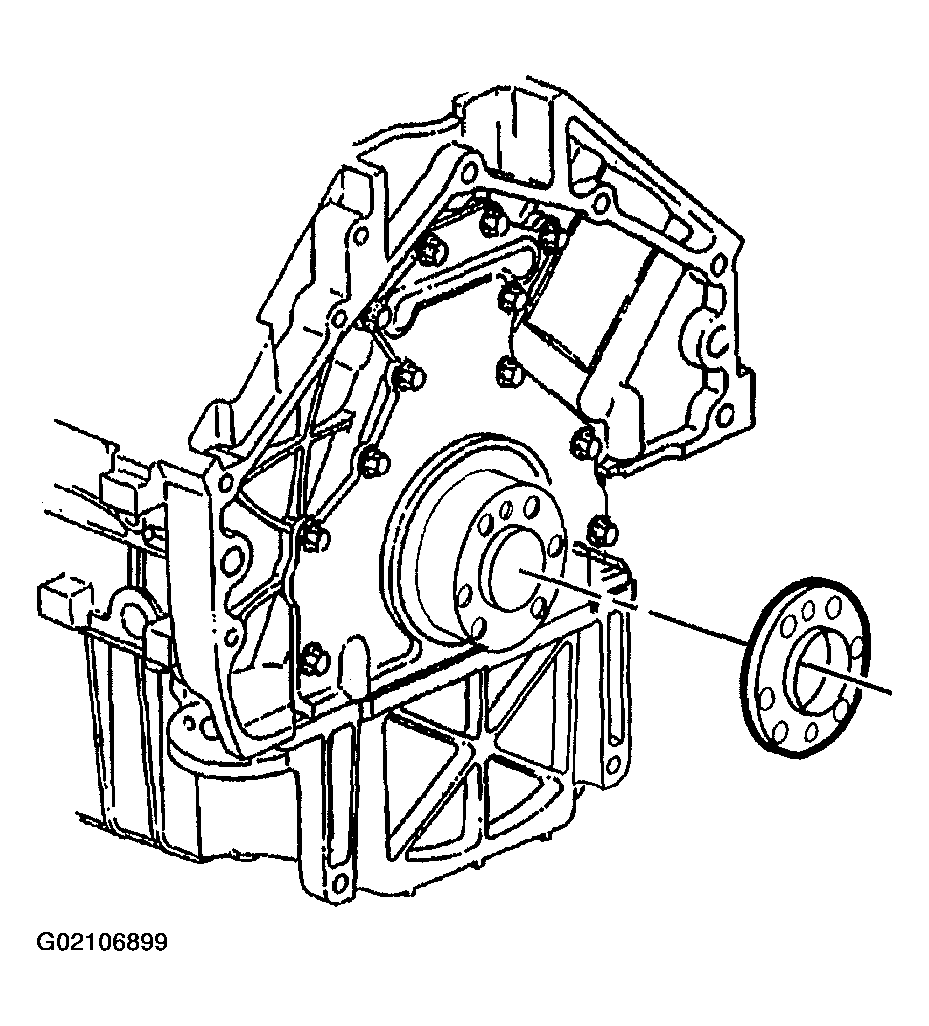

    Fig 3: Removing Spacer
    G02106899Courtesy of GENERAL MOTORS CORP.
