Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  2. Use a suitable seal puller, remove the crankshaft front oil seal.
  3. Inspect the engine front cover seal bore area for damage.

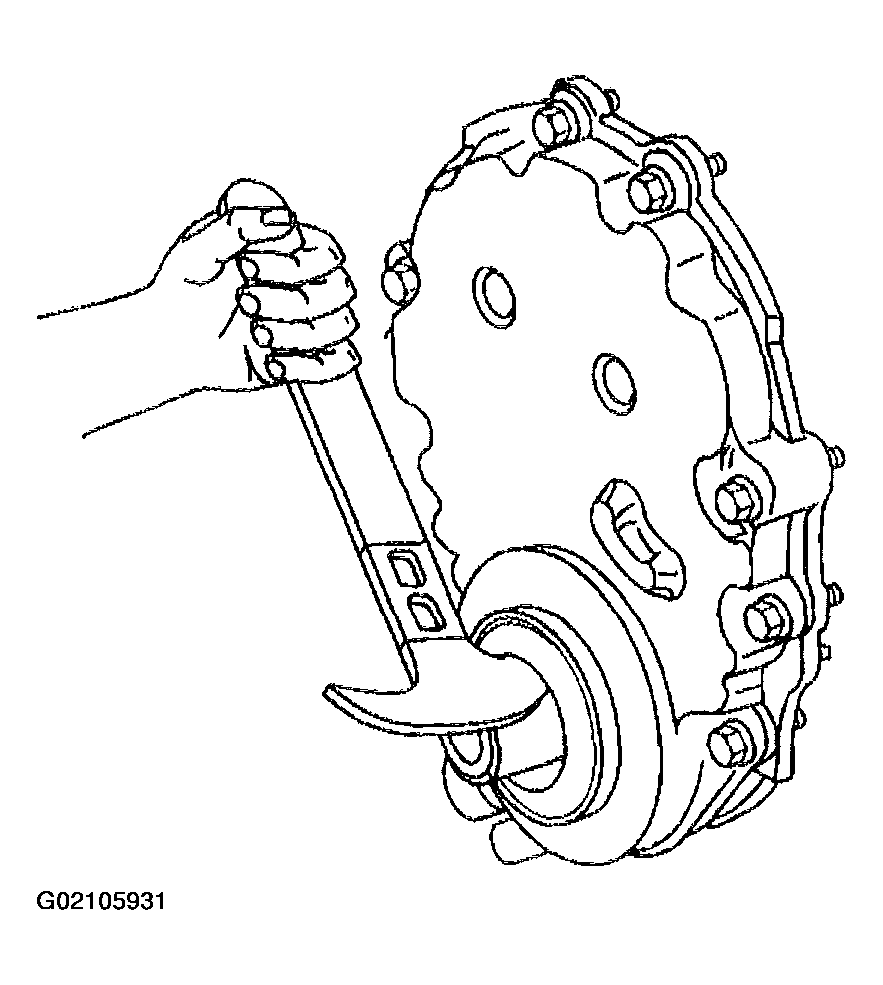

    Fig 1: Removing Crankshaft Front Oil Seal
    G02105931Courtesy of GENERAL MOTORS CORP.
