Clutch Pilot Bearing Installation

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SAFETY GLASSES CAUTION .
  1. Install the NEW clutch pilot bearing using a suitable clutch pilot bearing installation tool.
  2. Measure to ensure the proper installation depth is obtained.

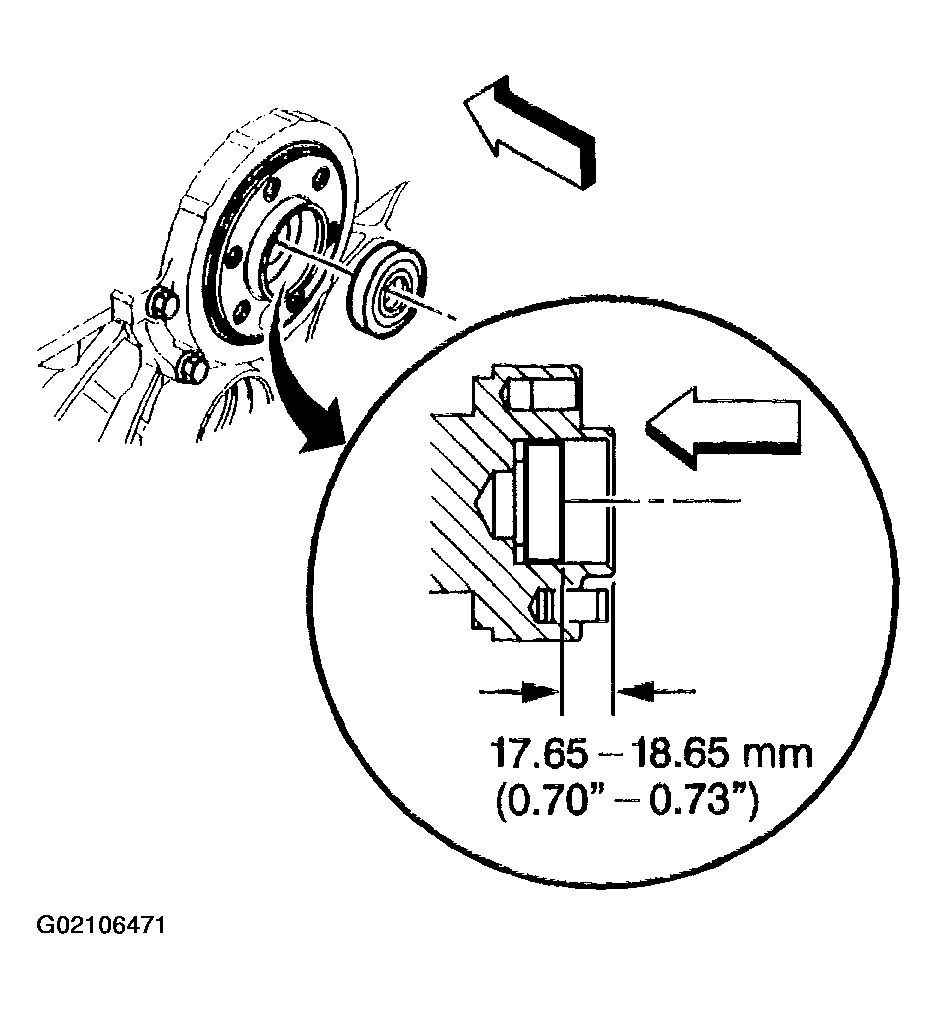

    Fig 1: Installing Clutch Pilot Bearing
    G02106471Courtesy of GENERAL MOTORS CORP.
