Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. Measure the resistance of the wheel speed sensor in order to determine if the sensor has a valid resistance value.
  2. 4. Ensures that the wheel speed sensor is generating a valid AC voltage output.
Fig 1: DTC C0221-C0227 (Steps 1-2)
G01481787Courtesy of GENERAL MOTORS CORP.

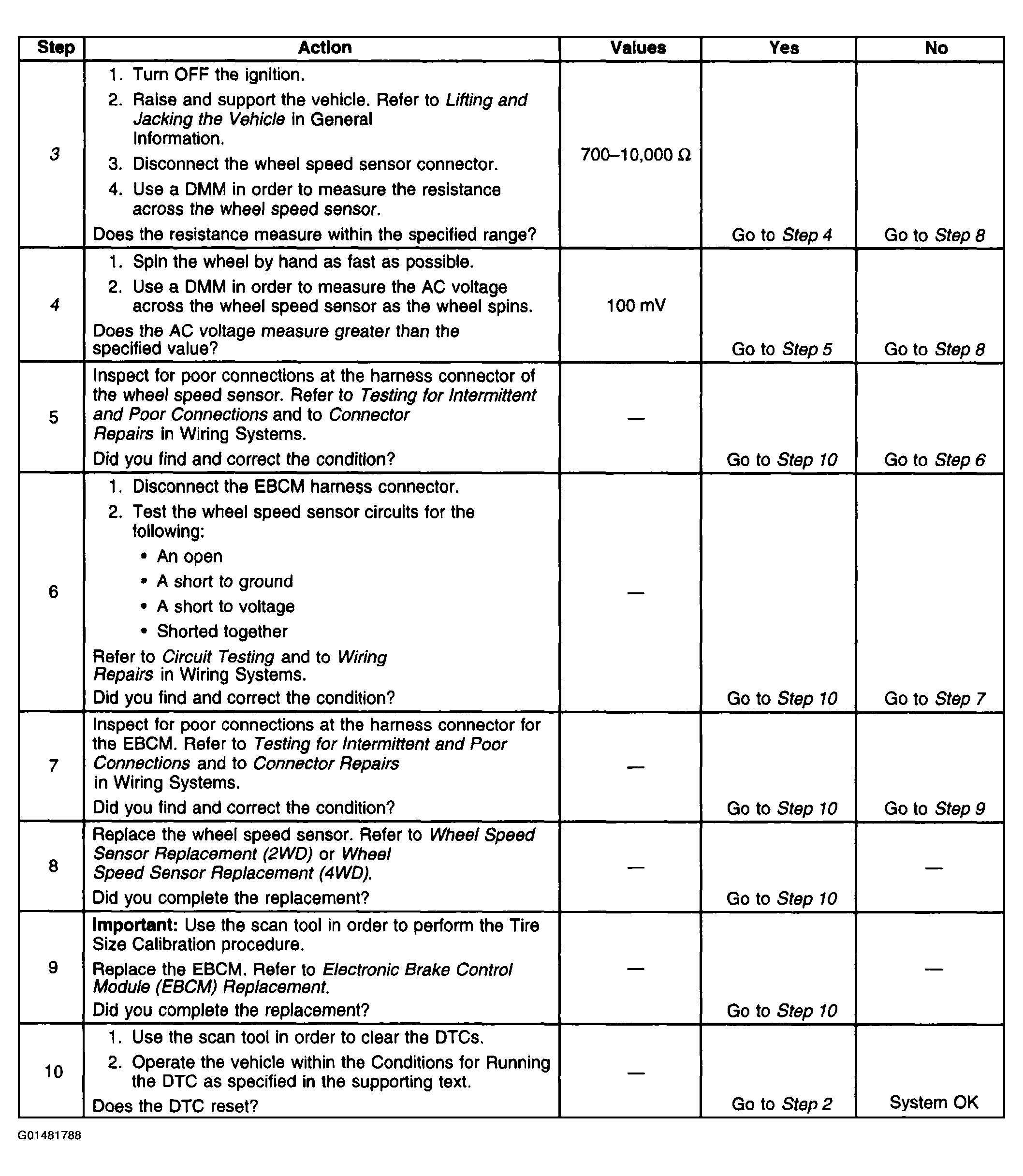

Fig 2: DTC C0221-C0227 (Steps 3-10)
G01481788Courtesy of GENERAL MOTORS CORP.
