Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43484  (2) to the J 8092  (1).
  2. Install the seal onto the J 43484  (2).
  3. Using the J 43484  (2) and the J 8092  (1), install the seal.
  4. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT  .
  5. Check the fluid level, add fluid if necessary.
  6. Install the transfer case shield, if equipped. Refer to Transfer Case Fluid Replacement .

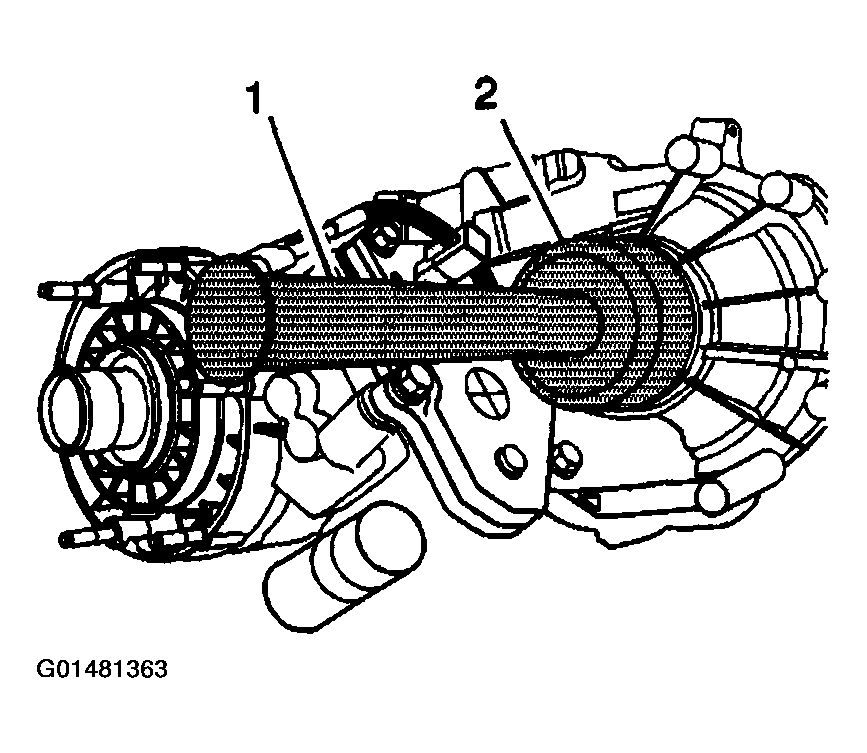

    Fig 1: Installing Seal Using Drive Handle, Out Put Shaft Seal Installer
    G01481363Courtesy of GENERAL MOTORS CORP.
