Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped.

    Refer to Transfer Case Shield Replacement .

  2. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT .
  3. Insert a flat-tipped screwdriver into the inner race.
  4. Pry the inner race back.

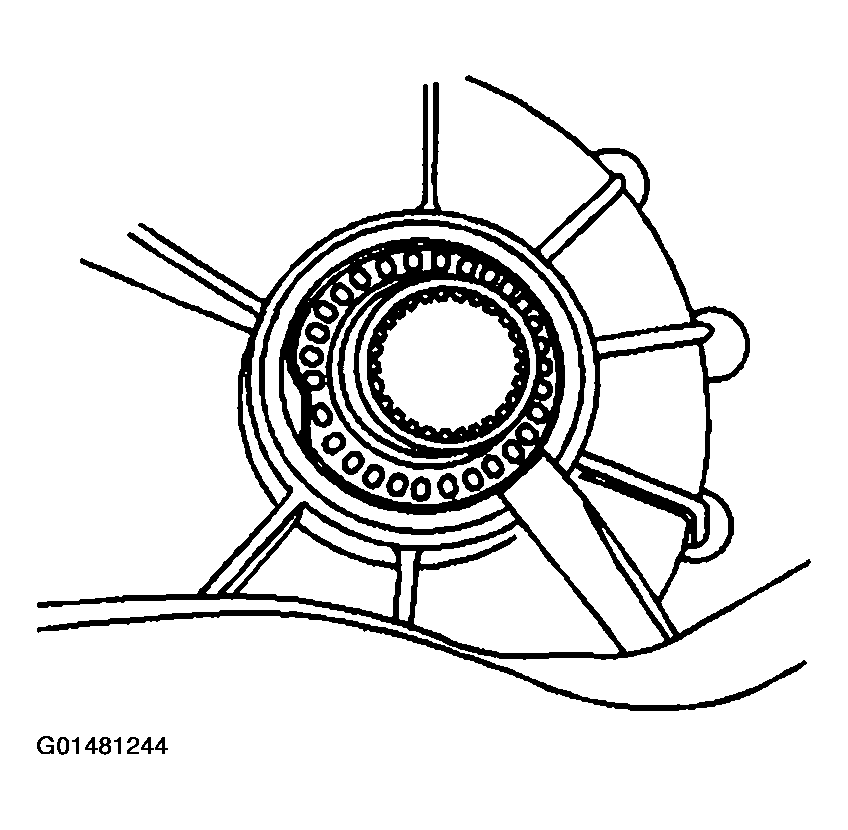

    5. Fig 1: Inner Race
    G01481244Courtesy of GENERAL MOTORS CORP.
  5. Insert a small pry bar into the inner race.

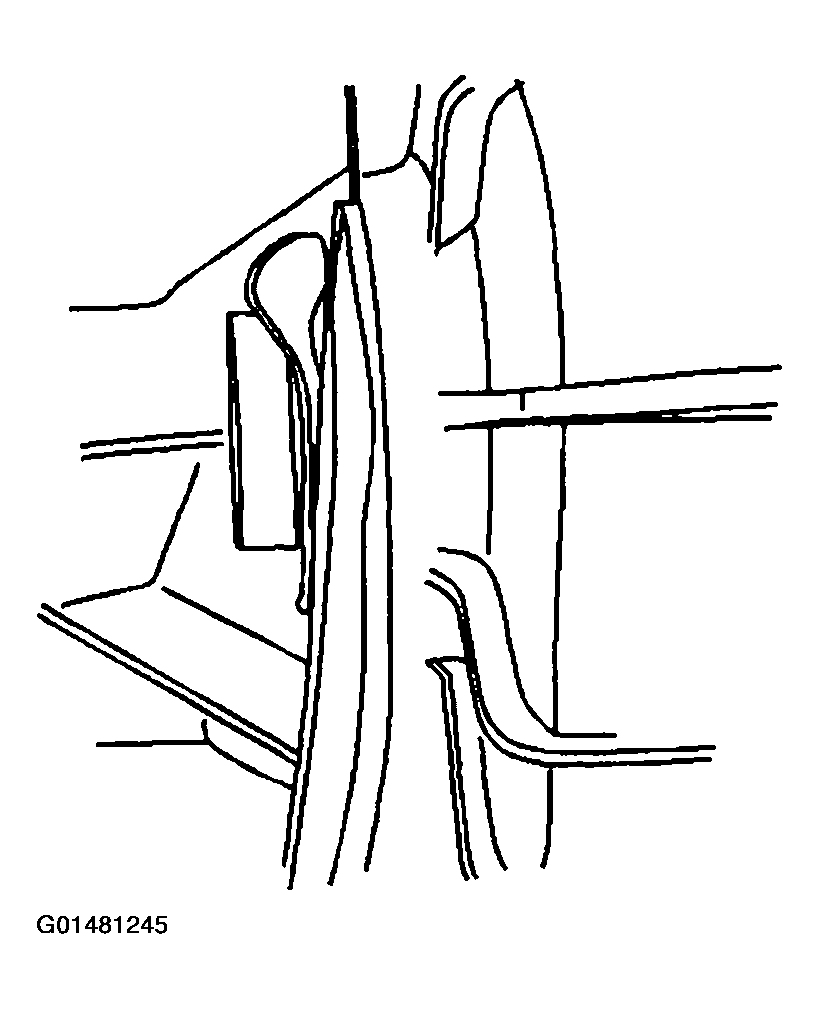

    Fig 2: Inserting Pry Bar Into Inner Race
    G01481245Courtesy of GENERAL MOTORS CORP.
  6. Remove the inner part of the seal.

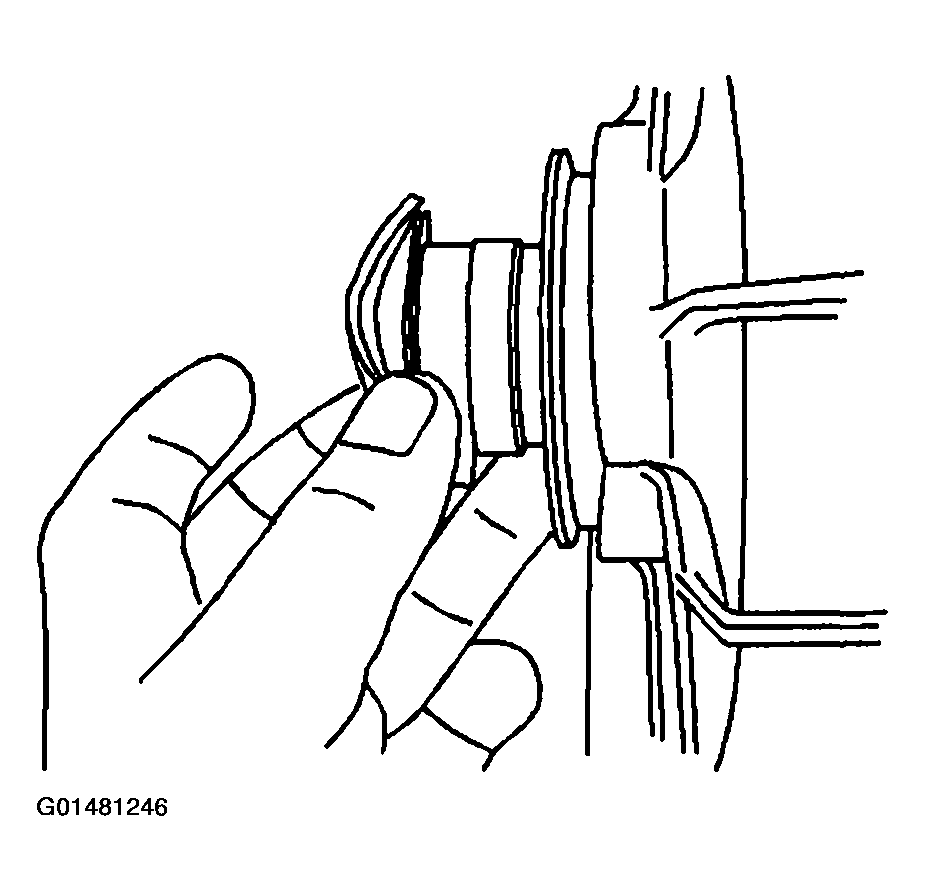

    Fig 3: Inner Part Of Seal
    G01481246Courtesy of GENERAL MOTORS CORP.
  7. Insert a flat-tipped screwdriver or a small pry bar in the space between the outer race of the seal and the transfer case.

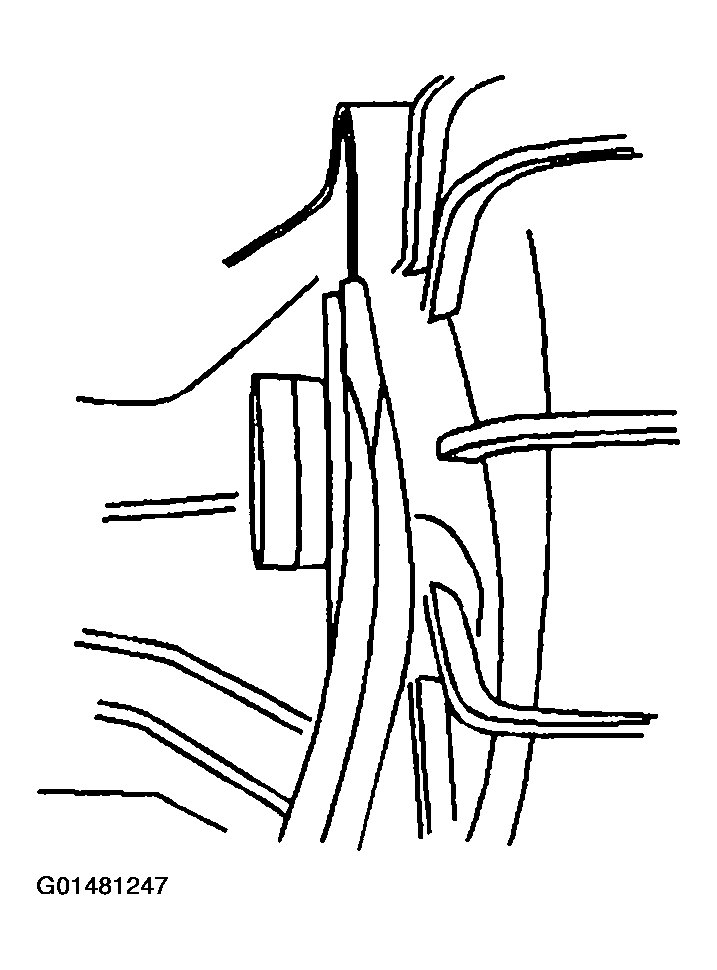

    Fig 4: Pry Outer Race Of Seal Out Of Transfer Case
    G01481247Courtesy of GENERAL MOTORS CORP.
  8. Remove the outer part of the seal.

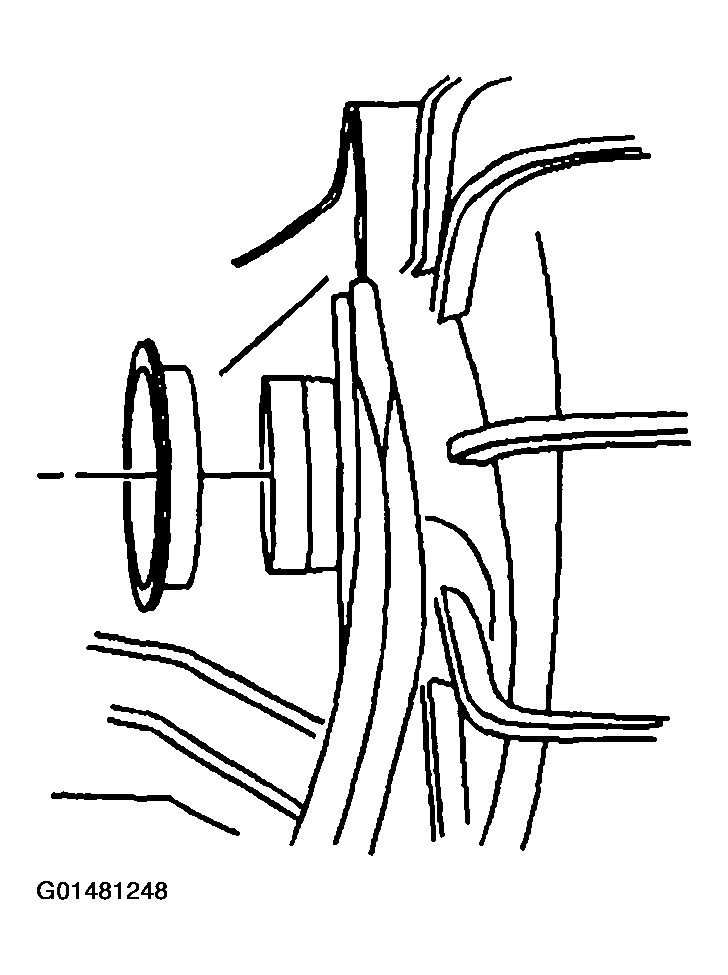

    Fig 5: Outer Part Of Seal
    G01481248Courtesy of GENERAL MOTORS CORP.
