Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The Number below refer to the step numbers on the diagnostic table.

  1. 2. Tests for an intermittent condition.
  2. 3. Determines whether the failure is the result of a faulty 4WD system.
  3. 4. Determines if the failure is the result of a faulty instrument cluster.
  4. 5. Determines if the failure is the result of a faulty PCM.

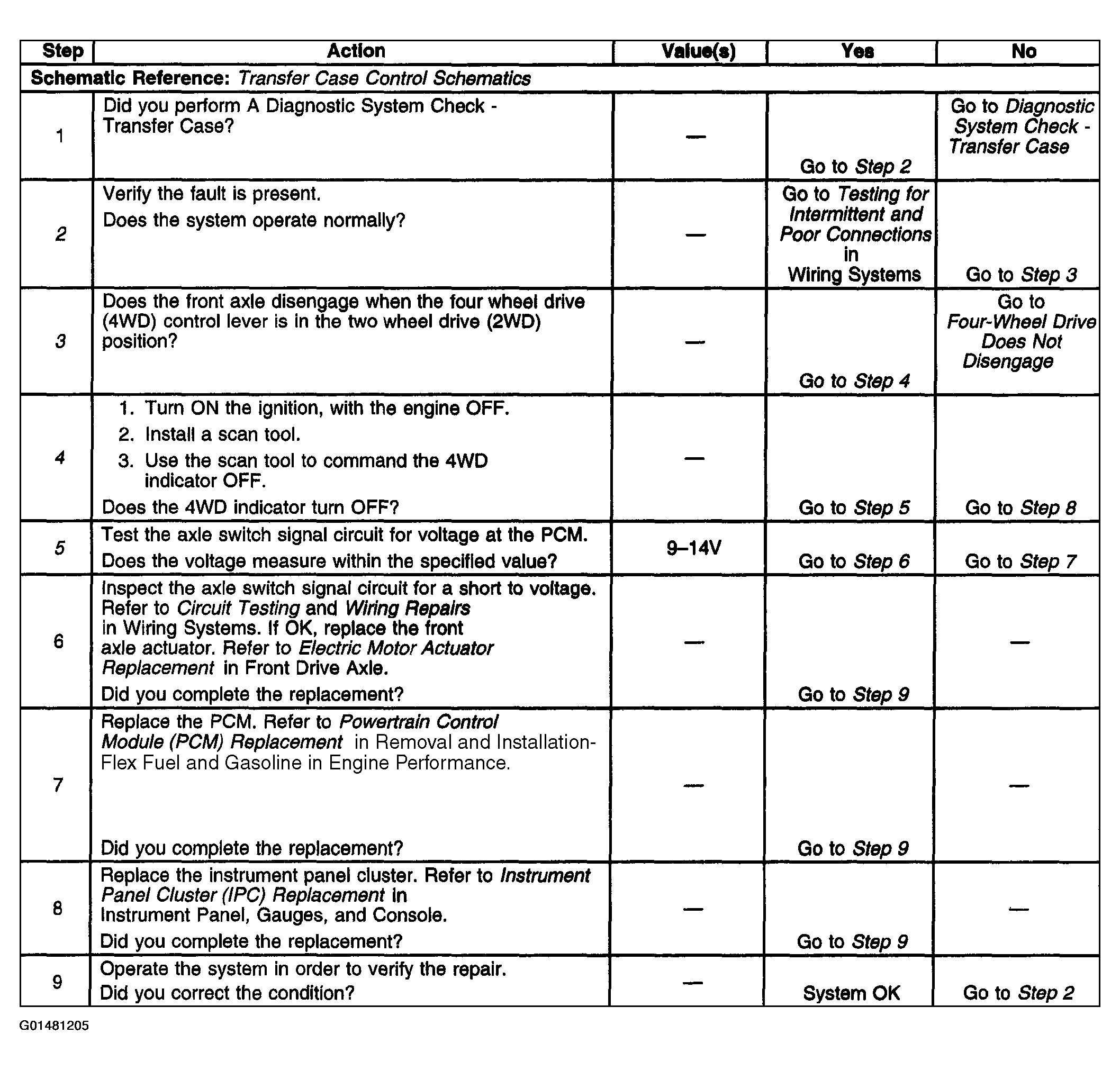

Fig 1: 4WD Indicator Always On
G01481205Courtesy of GENERAL MOTORS CORP.
