Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the hoist to the crossmember.
NOTE: Refer to FASTENER NOTICE .
Install the bolt.
Tighten

Tighten the bolt to 40 N.m (30 lb ft).

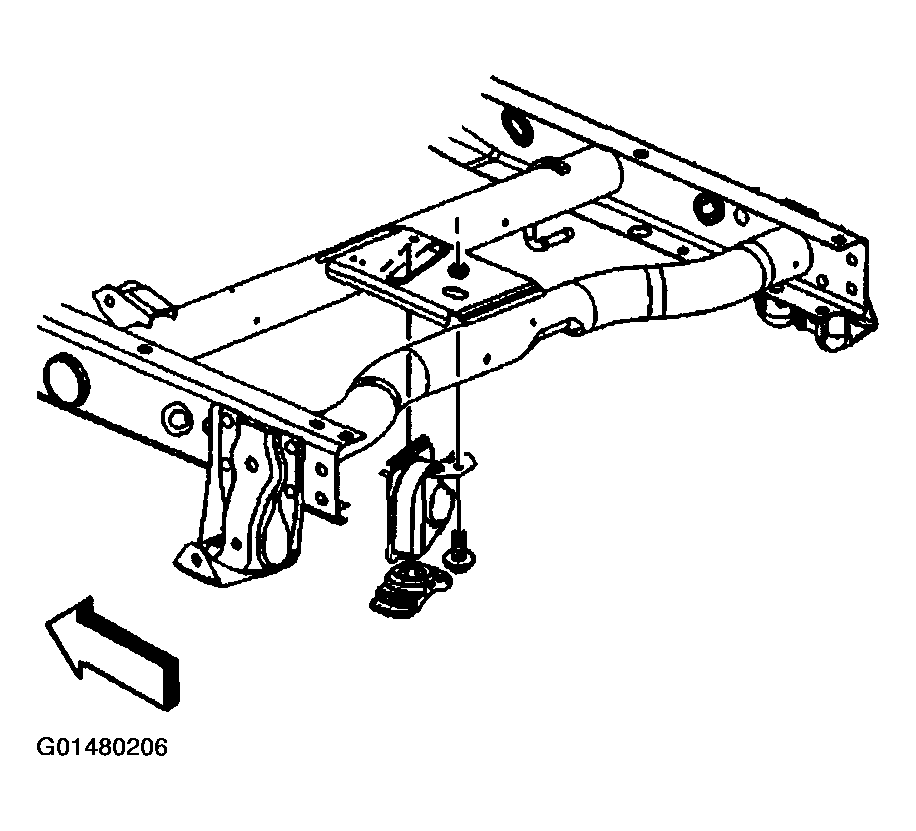

Fig 1: Install Hoist & Bolt
Courtesy of GENERAL MOTORS CORP.
Install the spare tire hoist shaft guide from the spare tire hoist.

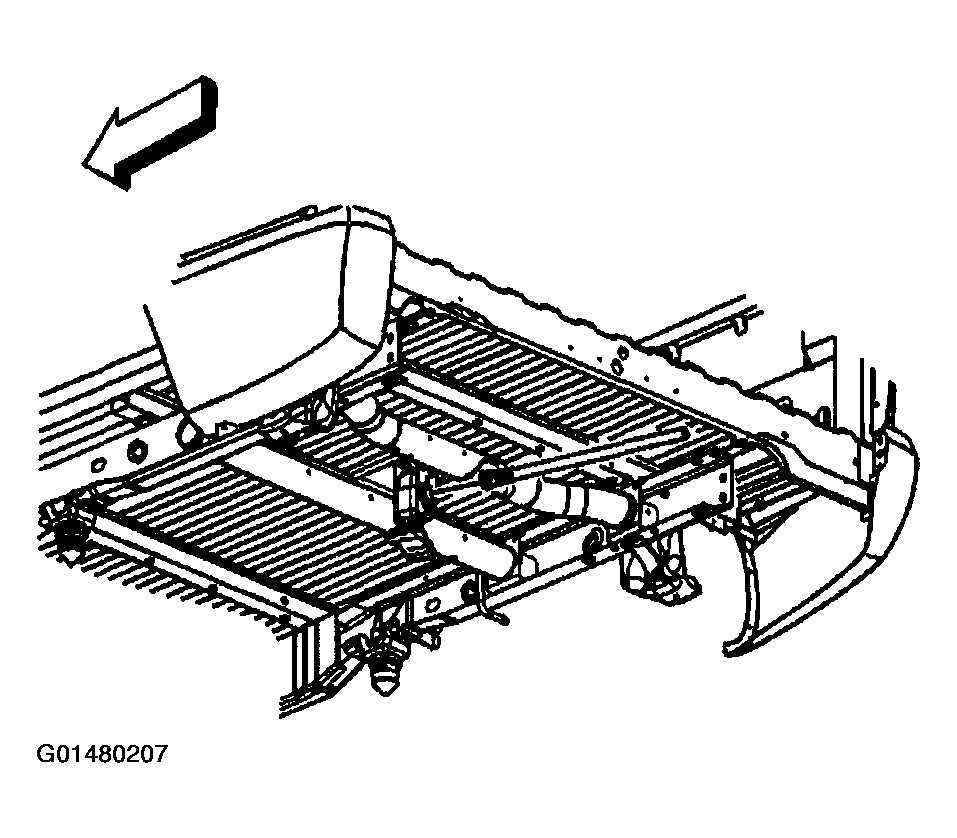

Fig 2: Install Spare Tire Hoist Shaft Guide
Courtesy of GENERAL MOTORS CORP.
Install the spare tire hoist shaft guide (2) to the bumper.

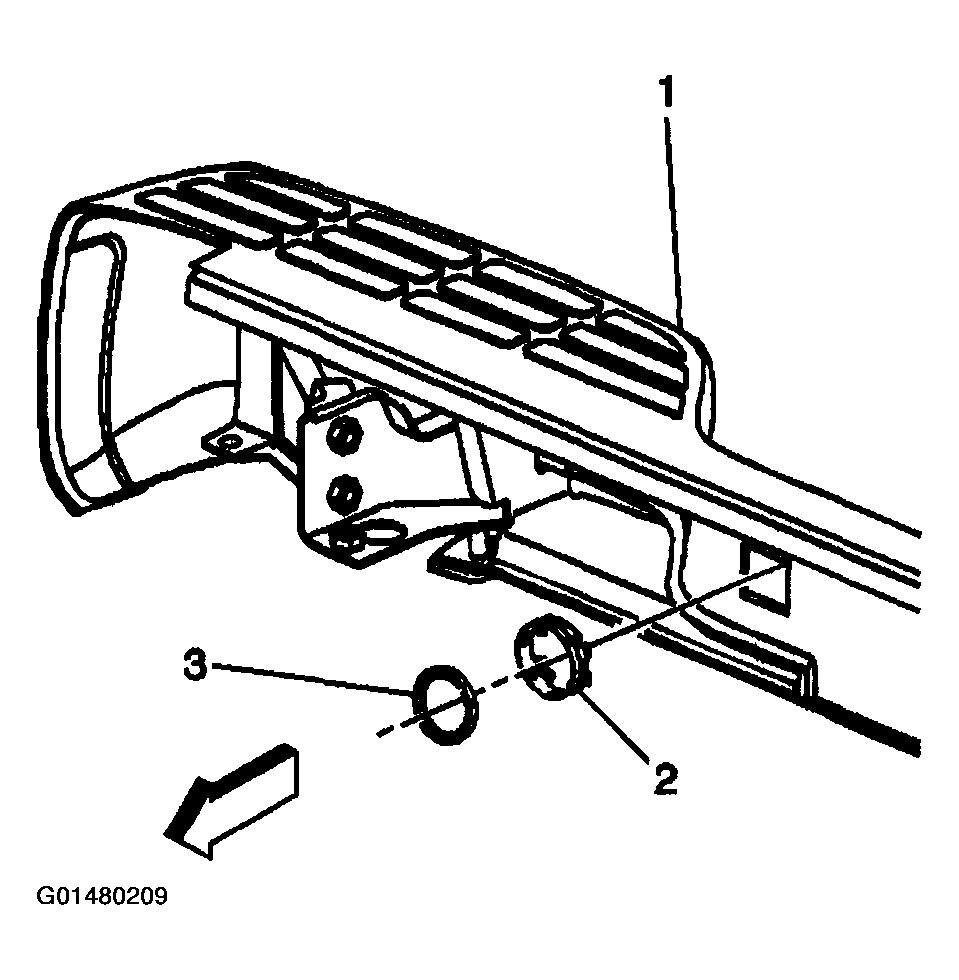

Fig 3: Install Spare Tire Hoist Shaft Guide To Bumper
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Inspect the retaining clips to make sure they are not damaged. Replace if necessary.
Install the spare tire hoist shaft guide retaining clips to the bumper (1).

Fig 4: Install Spare Tire Hoist Shaft Guide Retaining Clips To Bumper
Courtesy of GENERAL MOTORS CORP.
Install the spare tire to the hoist.
NOTE: Use only hand tools to lower and raise the spare tire hoist assembly. Do not use air tools. The use of air tools. The use of air tools at high speeds will damage the spare tire hoist assembly.
Turn the hoist shaft clockwise until the spare tire is in position and the hoist clicks 2 times or it skips twice. You cannot overtighten the cable.

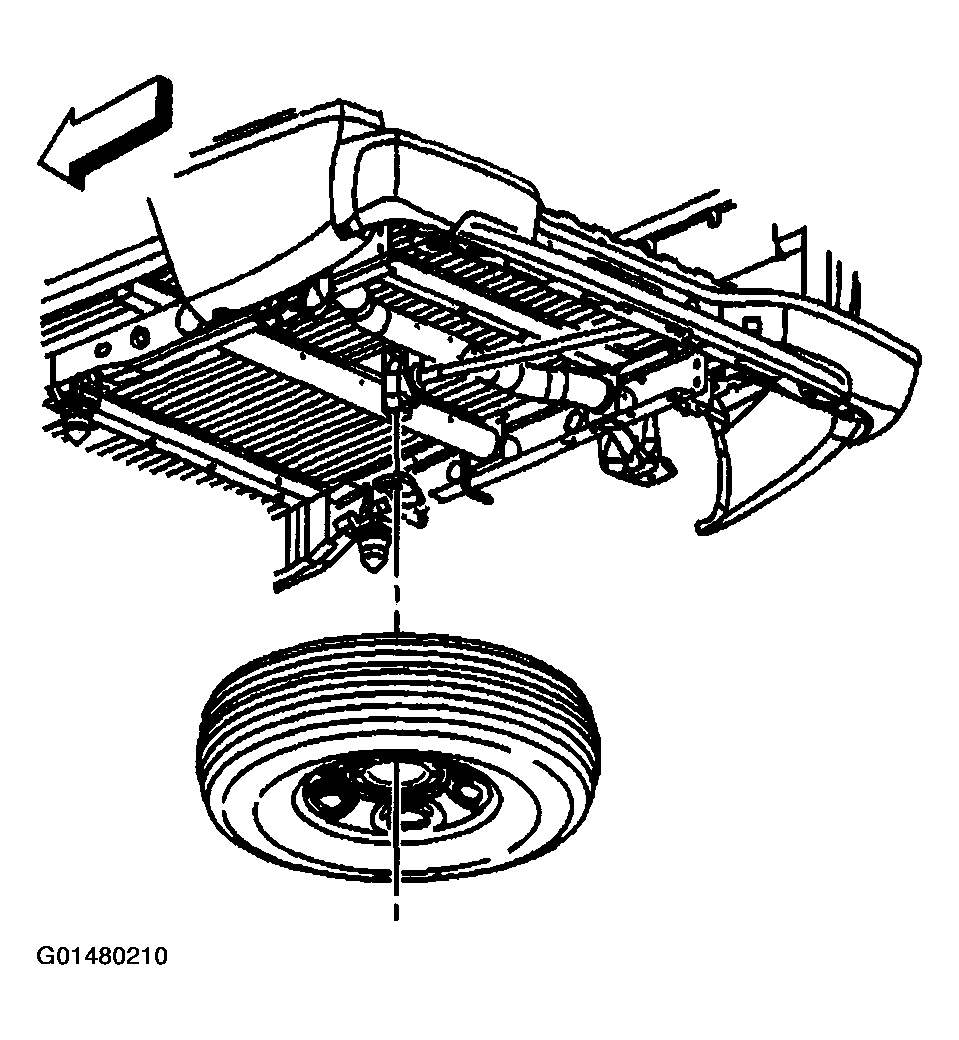

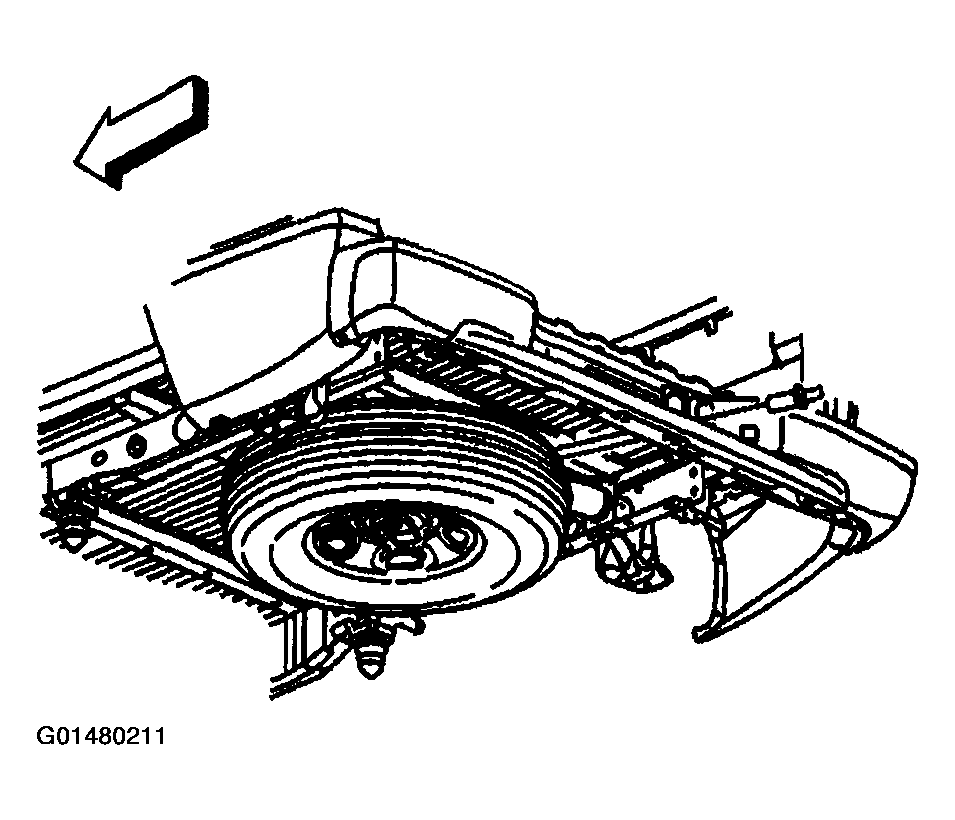

Fig 5: Install Spare Tire To Hoist
Courtesy of GENERAL MOTORS CORP.
Remove the safety stands.
Lower the vehicle.
Install the spare tire stowage lock cylinder.

Fig 6: Install Spare Tire Stowage Lock Cylinder
Courtesy of GENERAL MOTORS CORP.
