Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper end of the intermediate shaft into the upper shaft.
  2. Install the lower end of the intermediate shaft coupler.
    1. 2.1. If you are reinstalling the same shaft, align the marks made during the removal procedure.
    2. 2.2. Install the lower end of the intermediate shaft coupler onto the steering gear worm shaft.
  3. Install the bolt to the lower shaft coupler.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the bolt to the upper end of the shaft.

    Tighten

    • Tighten the upper bolt to 47 N.m (35 lb ft)
    • Tighten the coupler pinch bolt to 47 N.m (35 lb ft)

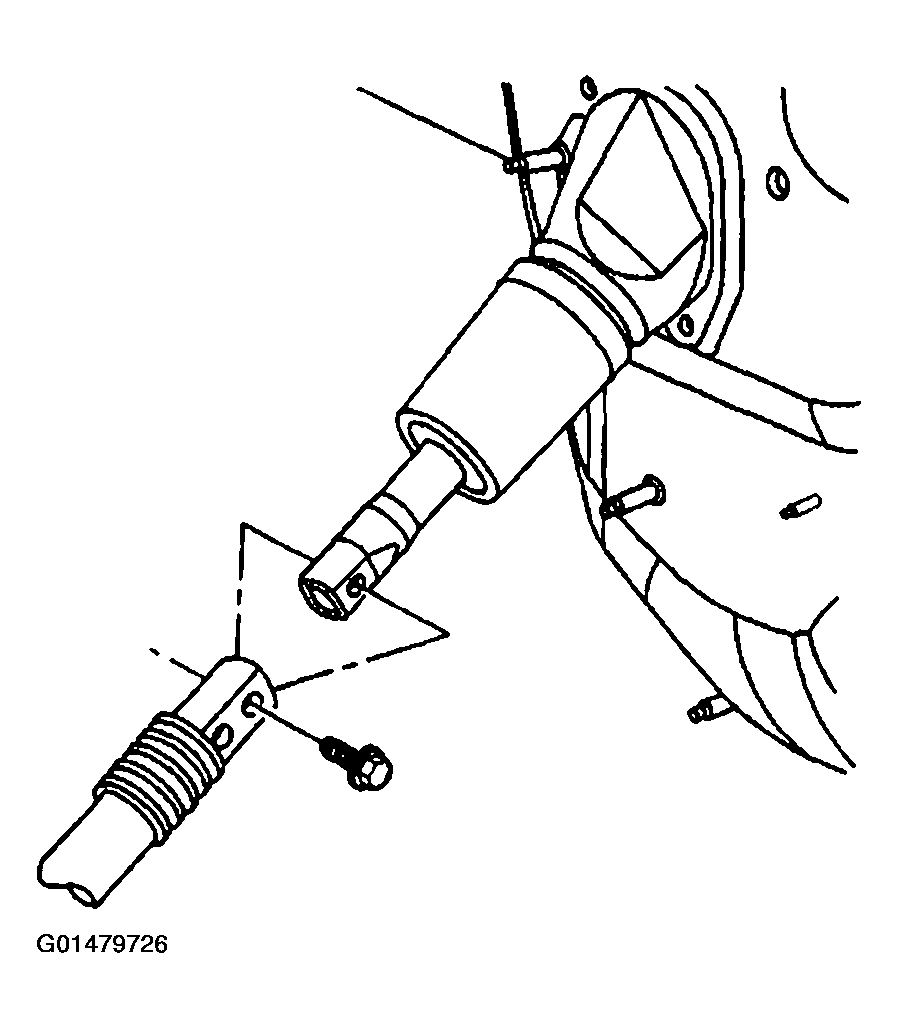

    Fig 1: Install Bolt To Upper End Of Shaft
    G01479726Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 42640  from the steering column lower access hole.

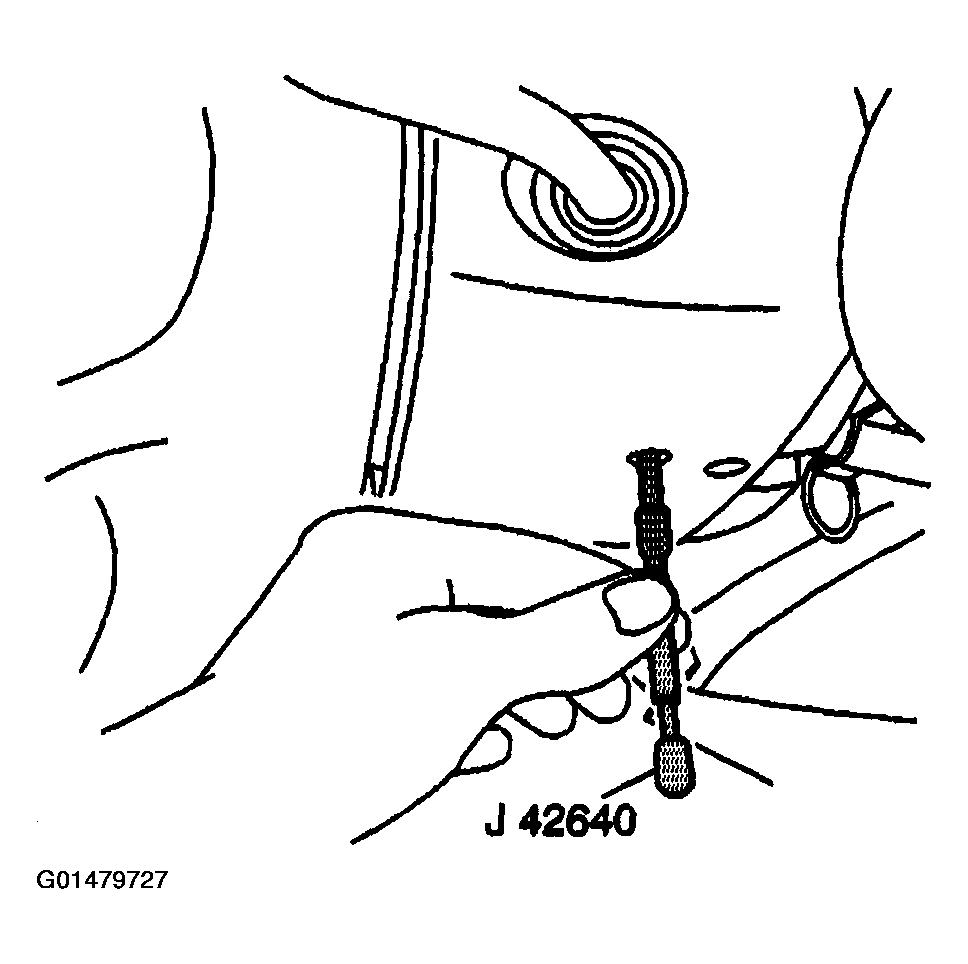

    Fig 2: Remove J 42640 From Steering Column Lower Access Hole
    G01479727Courtesy of GENERAL MOTORS CORP.
