Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the stub shaft back and forth in order to drain the power steering fluid.
  2. Remove the coupling shield retainer and the lock nut from the steering gear housing using J 43435  and a torque wrench.

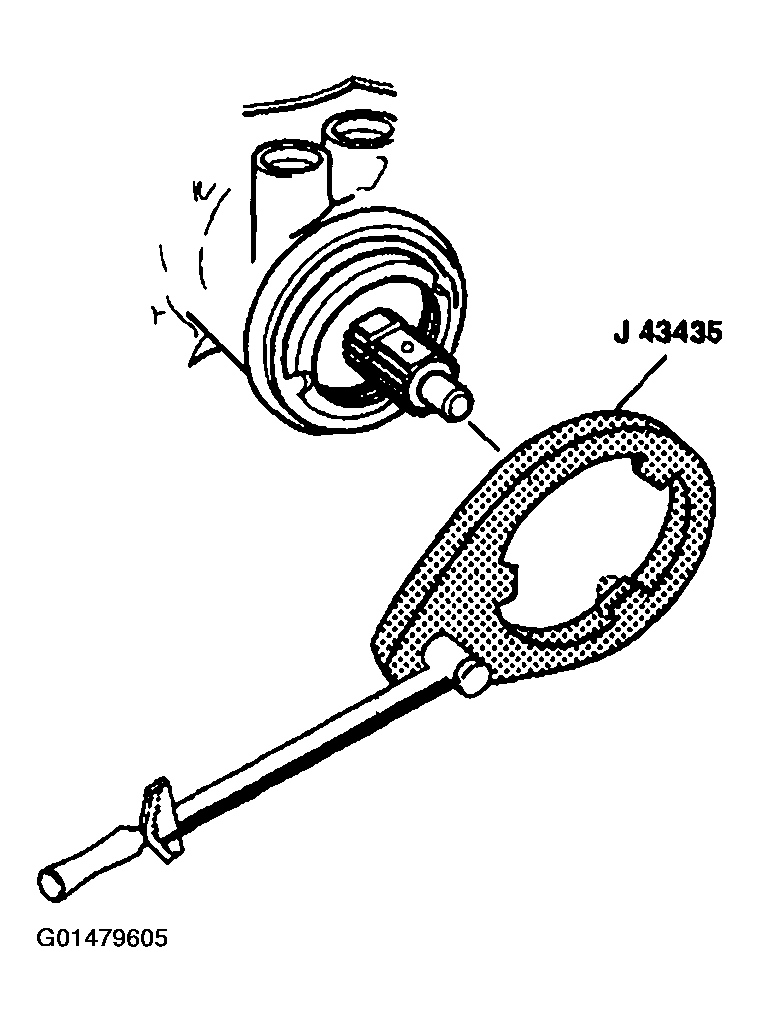

    Fig 1: Remove Coupling Shield Retainer & Lock Nut From Steering Gear Housing
    G01479605Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Turn the adjuster nut assembly (1) clockwise using J 42882  until the adjuster nut assembly (1) and the thrust support assembly (2) are firmly bottomed in the steering gear housing (3).

    Tighten

    Tighten the adjuster nut assembly (1) to 28-31 N.m (20-23 lb ft).

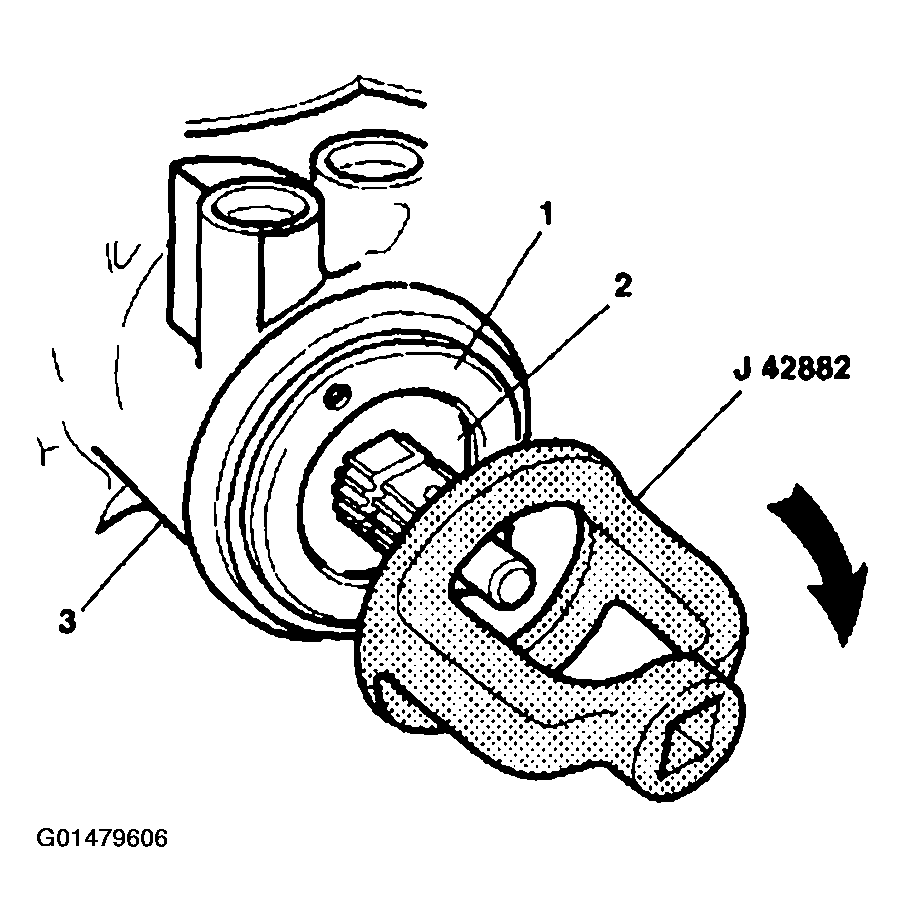

    4. Fig 2: Adjuster Nut Assembly
    G01479606Courtesy of GENERAL MOTORS CORP.
  4. Place an index mark (1) on the steering gear housing (4) parallel with one of the holes (3) in the adjuster nut assembly (2).

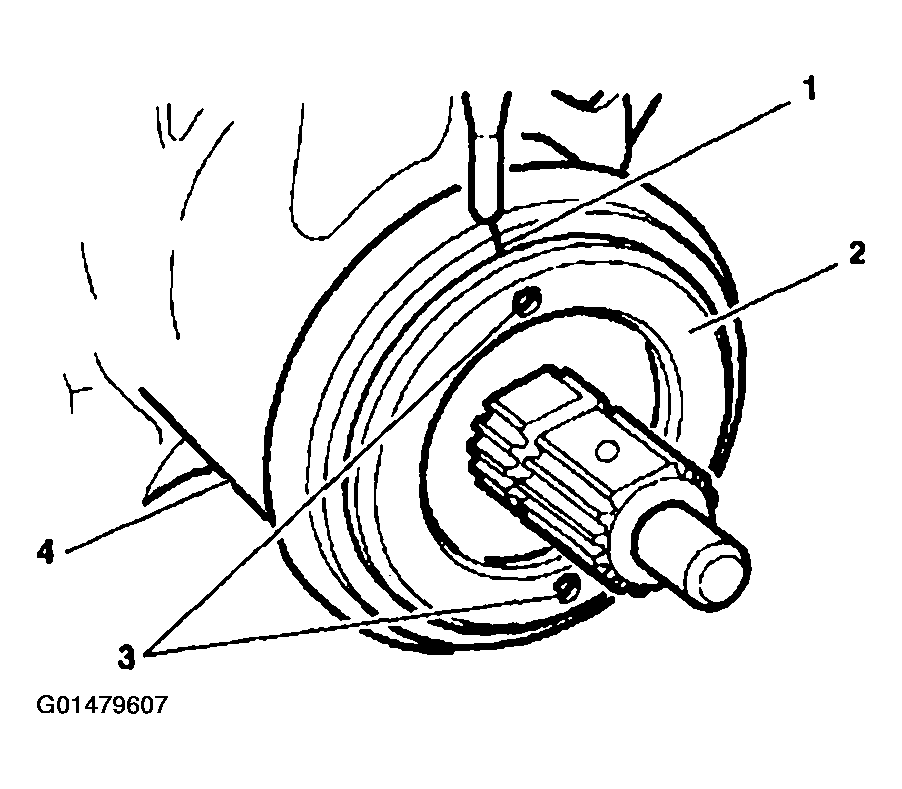

    Fig 3: Placing Index Mark On Steering Gear Housing
    G01479607Courtesy of GENERAL MOTORS CORP.
  5. Measure back counterclockwise 13 mm (1/2 in).
  6. Place a second mark (2) on the steering gear housing (1).

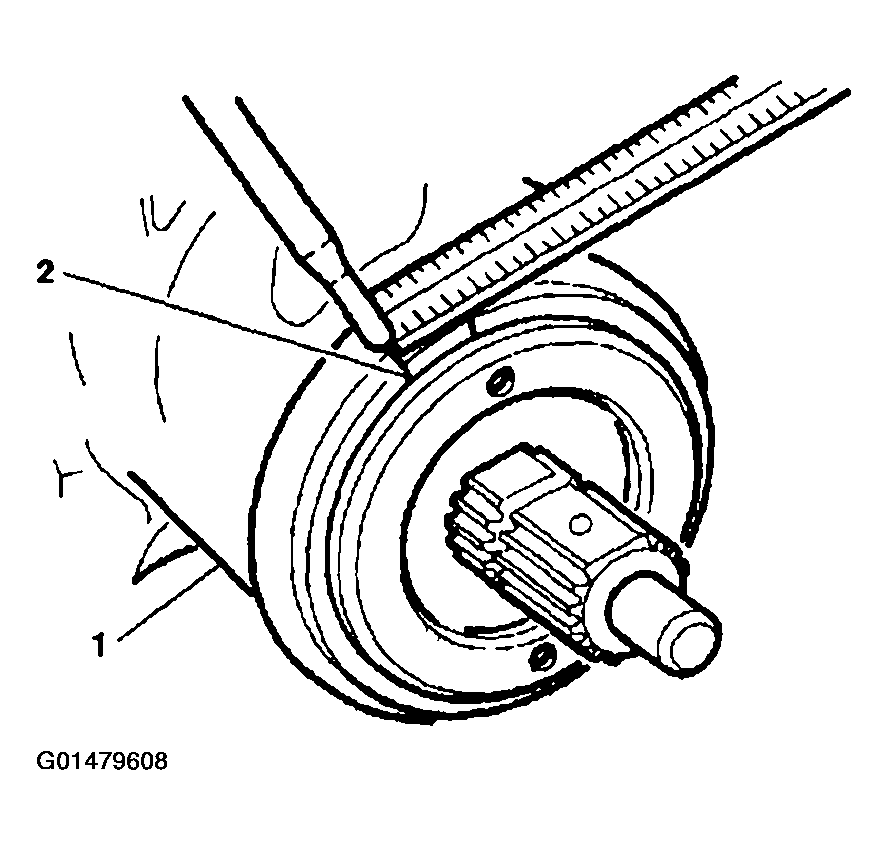

    Fig 4: Placing Second Mark On Steering Gear Housing
    G01479608Courtesy of GENERAL MOTORS CORP.
  7. Using J 42882  and a torque wrench, turn the adjuster nut assembly (1) counterclockwise 15-25 degrees to align the hole (2) in the adjuster nut assembly (1) with the second mark (4) on the steering gear housing (3).

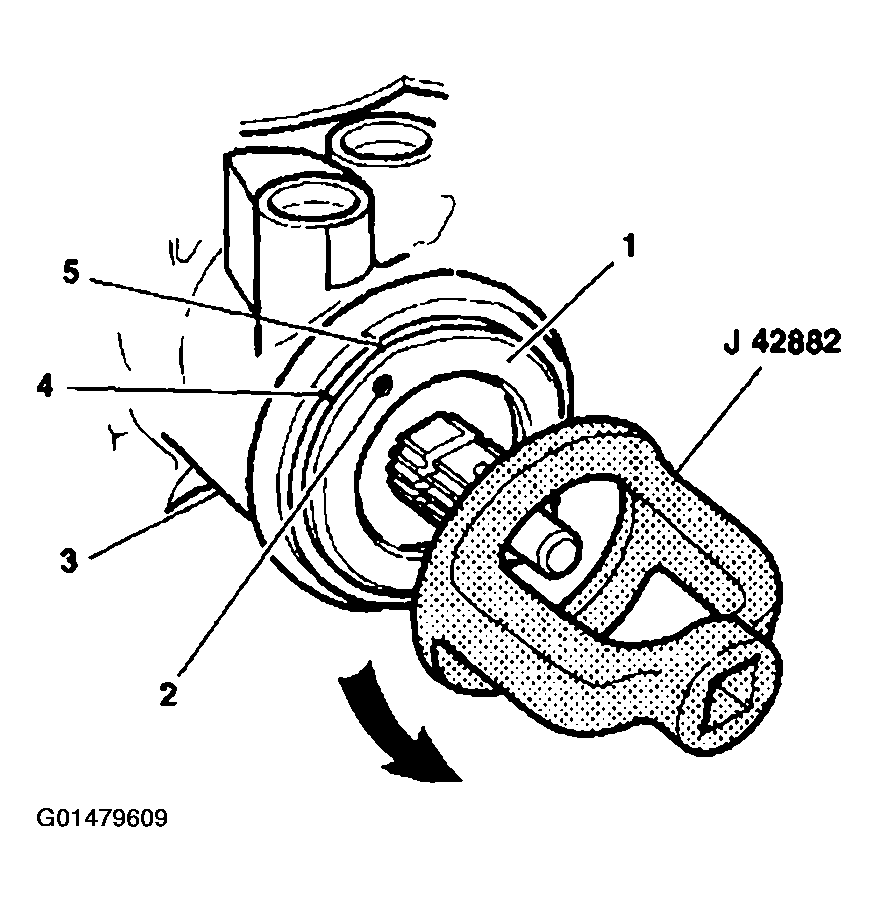

    Fig 5: Turning Adjuster Nut Assembly Counterclockwise
    G01479609Courtesy of GENERAL MOTORS CORP.
  8. Install the coupling shield retainer and the lock nut.
  9. Hold the adjuster nut assembly in position to maintain alignment of the marks.
  10. Tighten the coupling shield retainer and the lock nut using J 43435  and a torque wrench.

    Tighten

    Tighten the coupling shield retainer and the lock nut to 109 N.m (80 lb ft).

  11. To adjust the pitman shaft, refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle (700 Gear) .

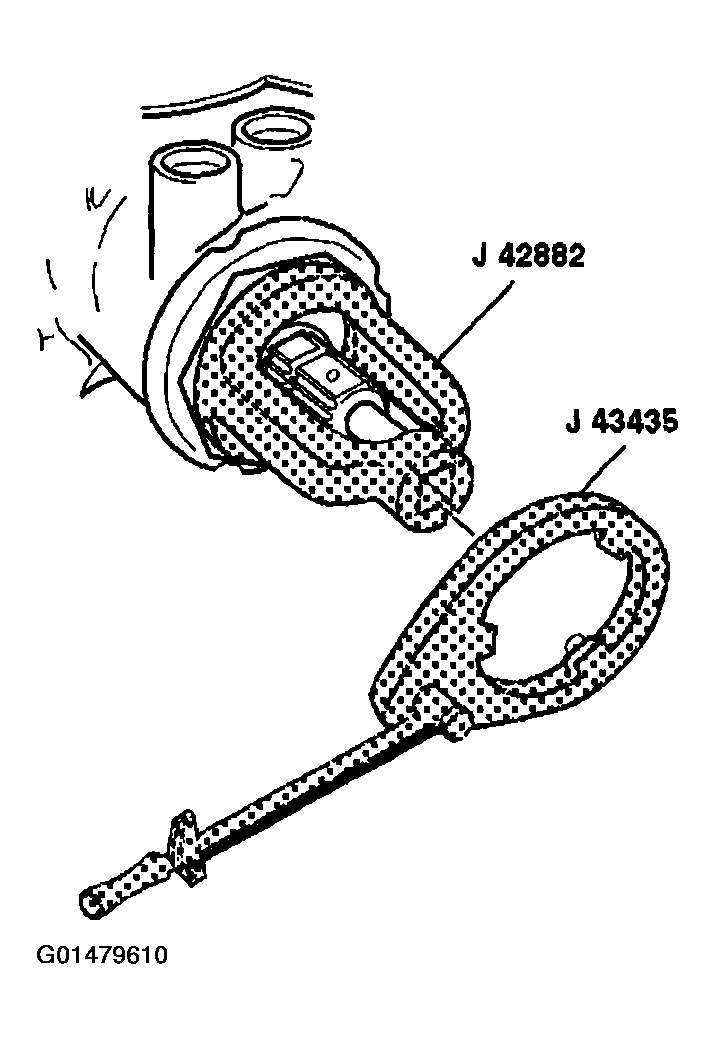

Fig 6: Installing Coupling Shield Retainer & Lock Nut
G01479610Courtesy of GENERAL MOTORS CORP.
