Disassembly Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Replace the housing if the stub shaft housing, seal or bearing are damaged.
  1. Remove the stub shaft housing bolts (4) from the stub shaft housing (3).
  2. Remove the stub shaft housing (3) from the steering gear.
  3. Remove the stub shaft housing O-rings (1) (2) from the steering gear.

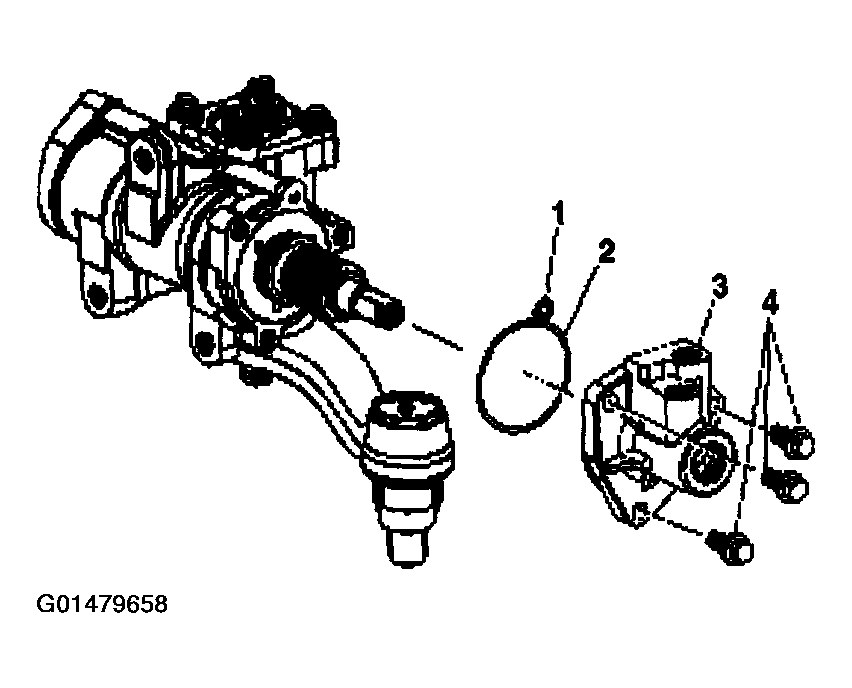

Fig 1: Stub Shaft Housing, Bolts & O-Rings
G01479658Courtesy of GENERAL MOTORS CORP.
