Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the power steering inlet hose (2) from the power steering pump (1).
  2. Remove the power steering inlet hose (2) from the power steering gear (3).

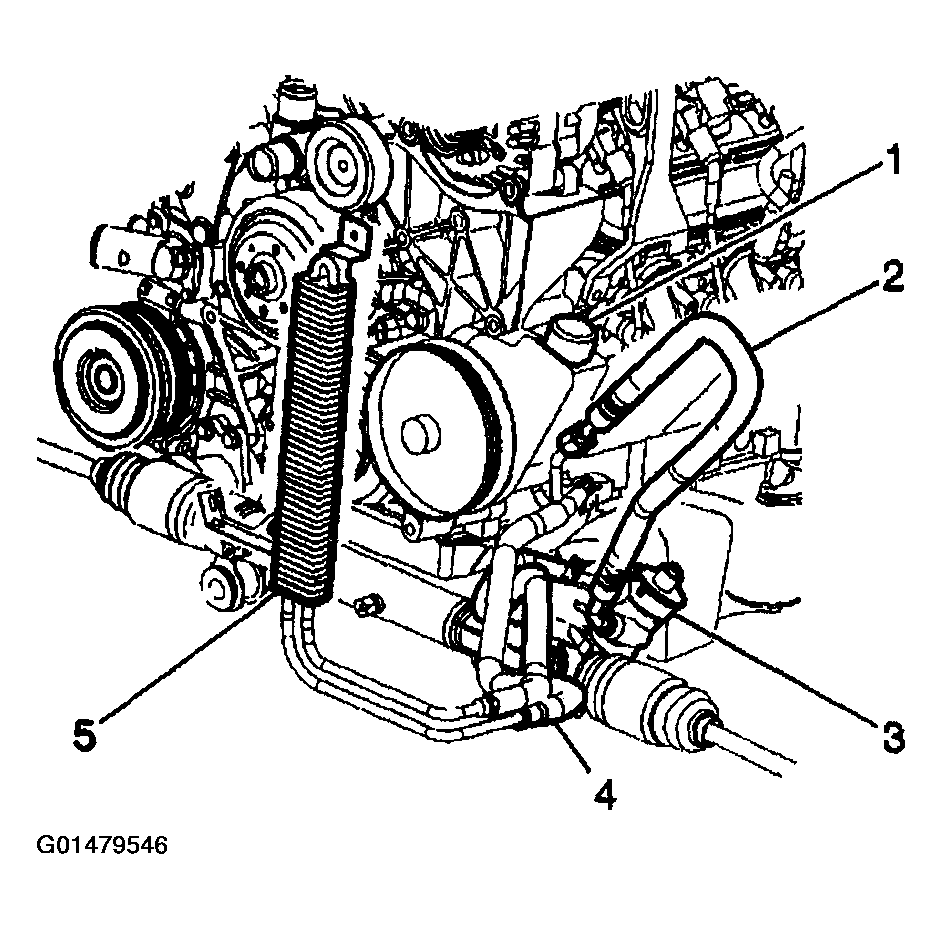

    Fig 1: Remove Power Steering Inlet Hoses
    G01479546Courtesy of GENERAL MOTORS CORP.
