Disassembly Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pitman shaft and the side cover.

    Refer to Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (670 Gear)  or Steering Gear Pitman Shaft and Housing Cover Replacement - Off Vehicle (700 Gear) .

  2. Remove the pitman arm (3) from the steering gear (1).
  3. Remove the pitman shaft boot (2).

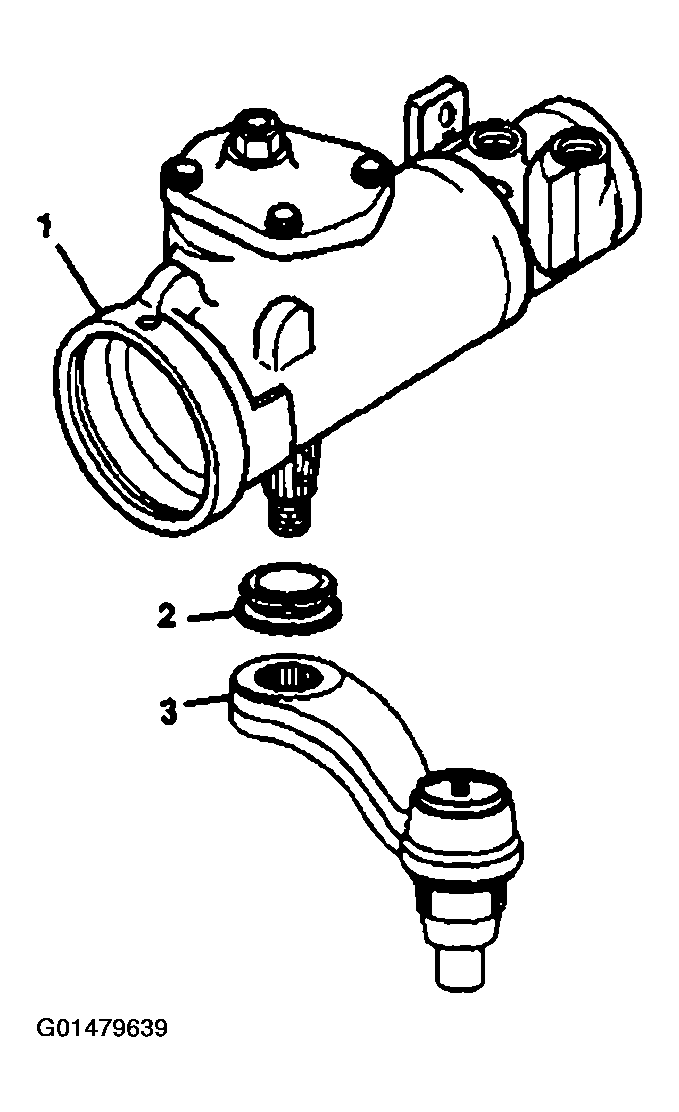

    4. Fig 1: Pitman Arm, Steering Gear & Pitman Shaft Boot
    G01479639Courtesy of GENERAL MOTORS CORP.
  4. Remove the dust seal (1).
  5. Remove the retaining ring using the J 4245  .
    Fig 2: Remove Dust Seal Using J 4245
    G01479640Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use care not to score the steering gear housing bore when prying out the seals and the washers.
  6. Use a screwdriver to pry the backup washer (3) and the double lip seal (2) from the steering gear housing (1).
  7. Inspect the steering gear housing (1) for burrs.
    8. Fig 3: Backup Washer, Double Lip Seal & Steering Gear Housing
    G01479641Courtesy of GENERAL MOTORS CORP.
  8. Insert J 6278  through the hole in the top of the steering gear housing (1).
  9. Drive out the needle bearing (2).

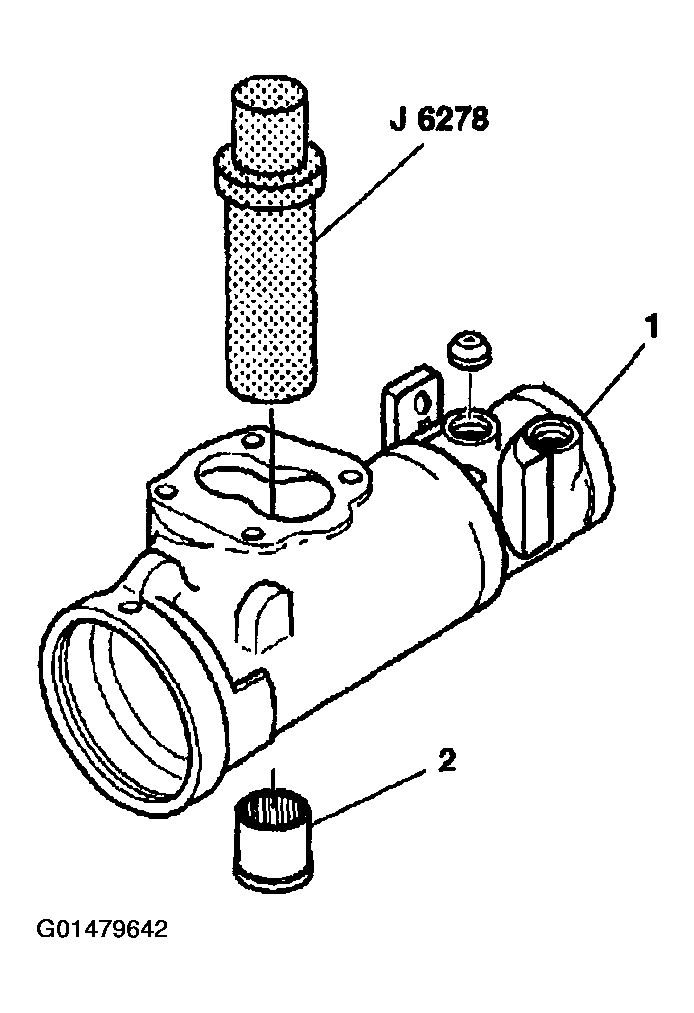

Fig 4: Needle Bearing, Steering Gear Housing & J 6278
G01479642Courtesy of GENERAL MOTORS CORP.
