Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor air outlet duct extension (1) from the floor duct (2).

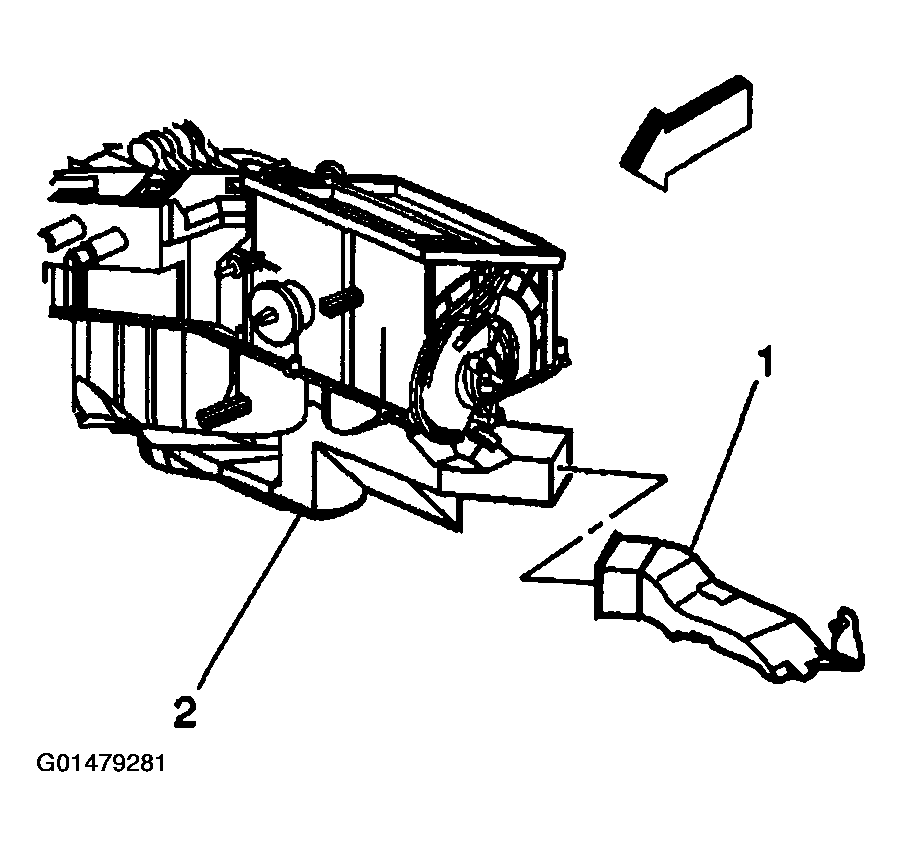

Fig 1: Remove Floor Air Outlet Duct Extension From Floor Duct

Courtesy of GENERAL MOTORS CORP.

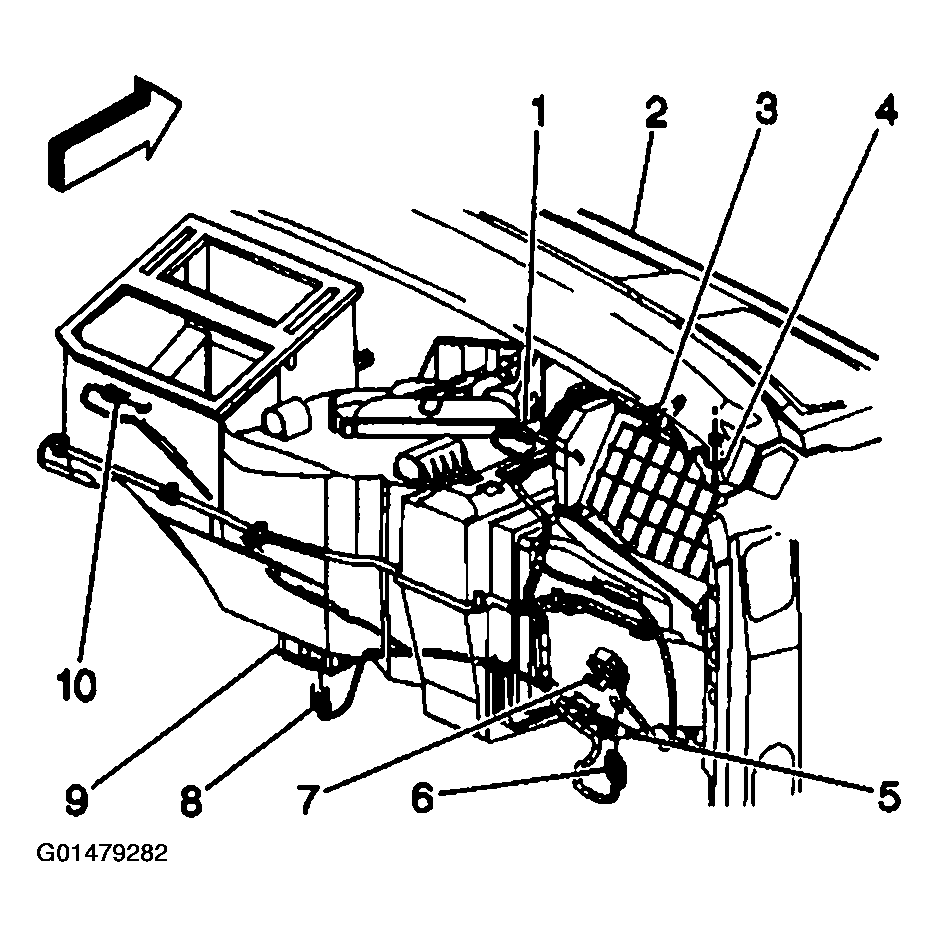

Disconnect the electrical connection at the mode actuator (10).

Fig 2: Disconnect Electrical Connection At Mode Actuator
Courtesy of GENERAL MOTORS CORP.
Remove the mode actuator mounting screws from the HVAC module.
Remove the mode actuator as an assembly with the actuator cam.

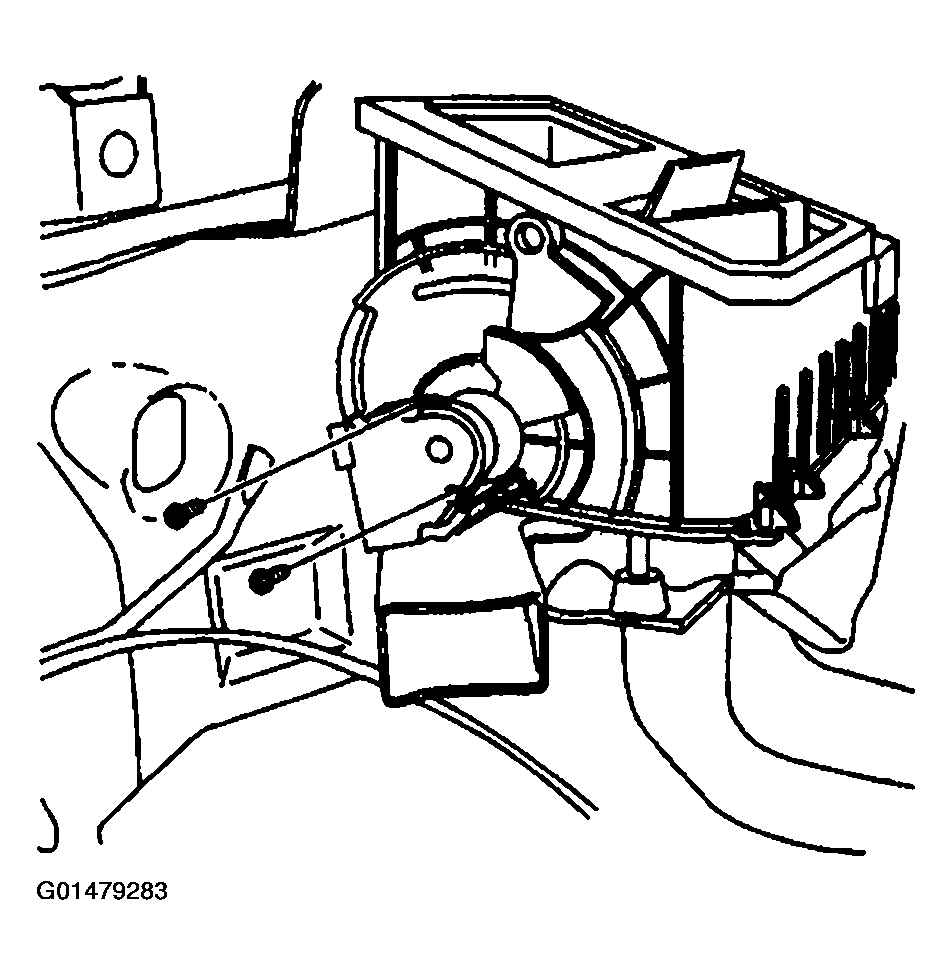

Fig 3: Removing Mode Actuator & Screws
Courtesy of GENERAL MOTORS CORP.
