Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
  2. Disconnect the electrical connector (3) from the mode actuator (4).
  3. Remove the screws from the mode actuator (4).
  4. Remove the mode actuator (4) from the HVAC module assembly (1).
    5. Fig 1: Electrical Connector, Mode Actuator & HVAC Module Assembly
    G01479146Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiring harness from the air distribution housing (1).
  6. Remove the screws from the air distribution housing (1).
  7. Remove the air distribution housing (1) from the HVAC module assembly (2).

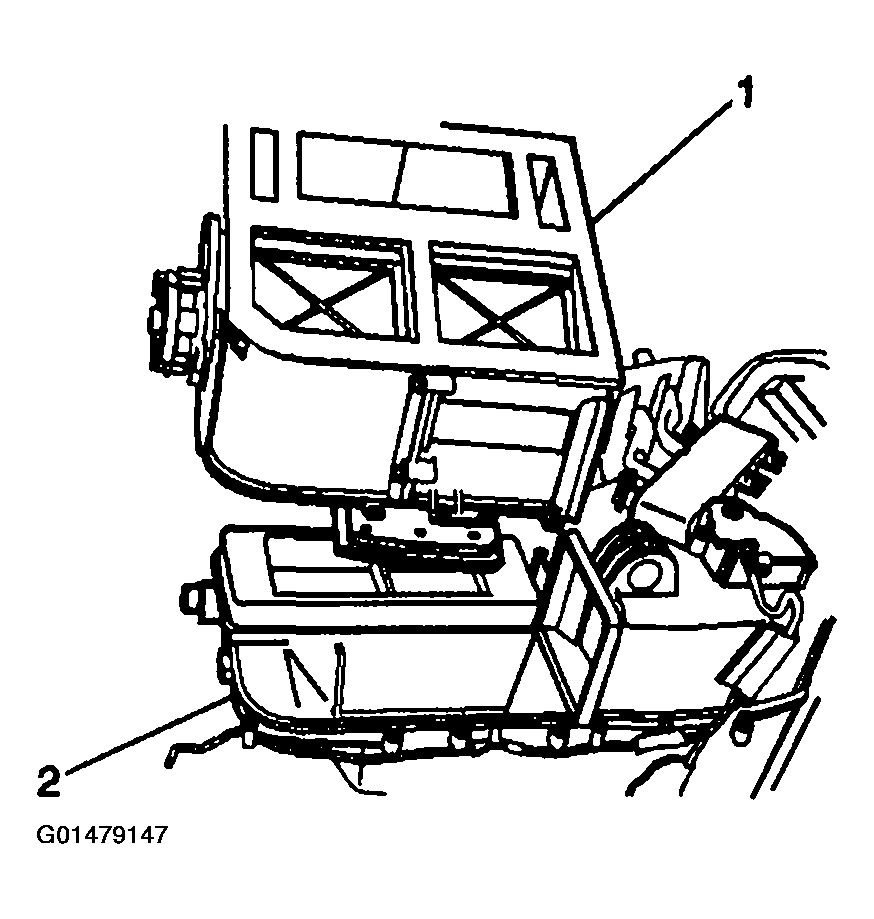

    8. Fig 2: Remove Air Distribution Housing From HVAC Module Assembly
    G01479147Courtesy of GENERAL MOTORS CORP.
  8. Remove the mode door (2) from the air distribution housing (1).

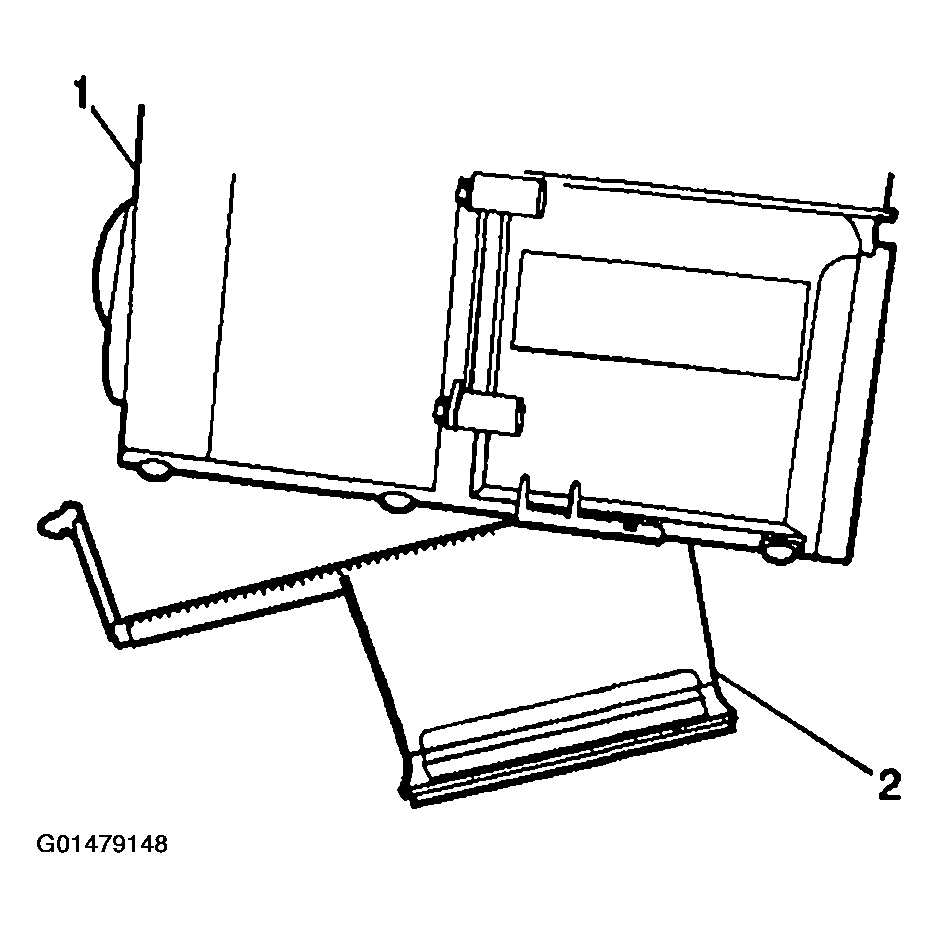

    Fig 3: Remove Mode Door From Air Distribution Housing
    G01479148Courtesy of GENERAL MOTORS CORP.
