Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster door (1).
  2. Install the defroster door lever (2).
  3. Install the mode actuator cam assembly (4).
  4. Install the mode actuator (3).
  5. Install the mode actuator screws.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the mode actuator screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  7. Install the HVAC module assembly halves.
  8. Install the screws to the HVAC module assembly.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  9. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .

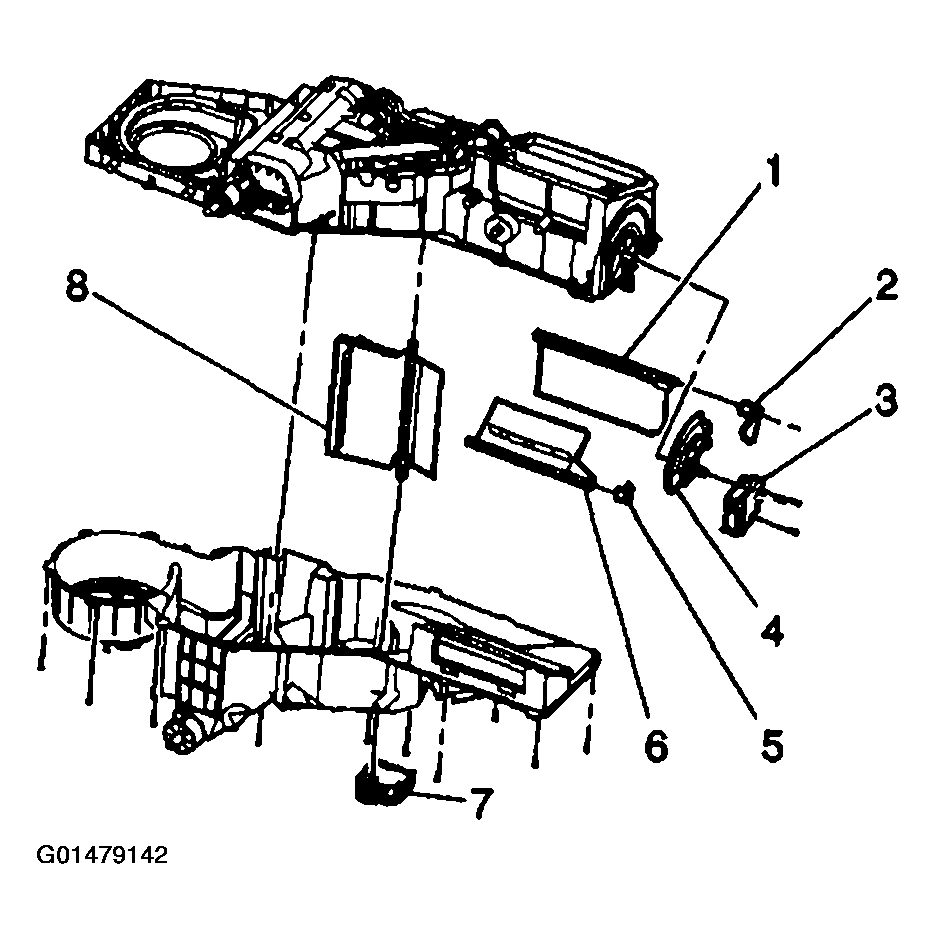

Fig 1: Install Defroster Door, Lever, Mode Actuator & Mode Actuator Cam Assembly
G01479142Courtesy of GENERAL MOTORS CORP.
