Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the deflector to the I/P.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the deflector mounting screws.

    Tighten

    Tighten the screw to 1.6 N.m (14 lb in).

  3. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER .
  4. Install the I/P bezel. Refer to BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER .

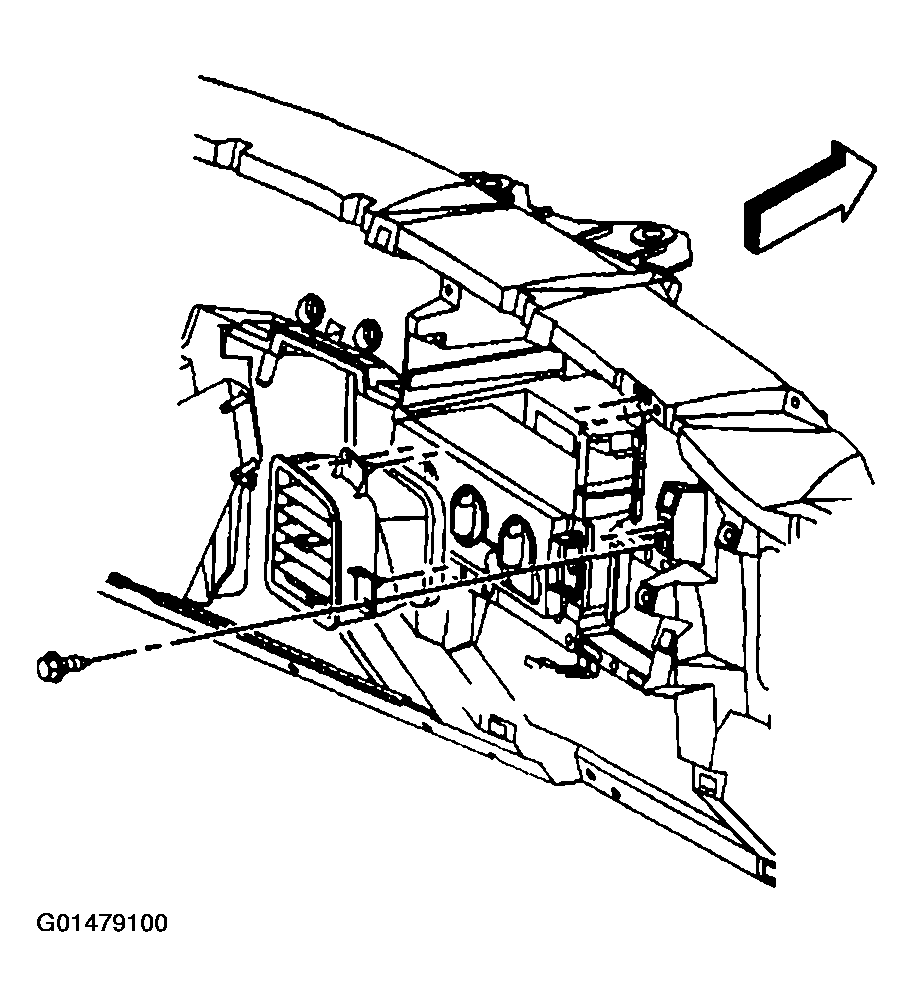

    Fig 1: Install Deflector & Mounting Screws
    G01479100Courtesy of GENERAL MOTORS CORP.
