Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left floor air outlet duct (1) to the HVAC module (2).
  2. Install the push pin (2) to the left floor air outlet duct.

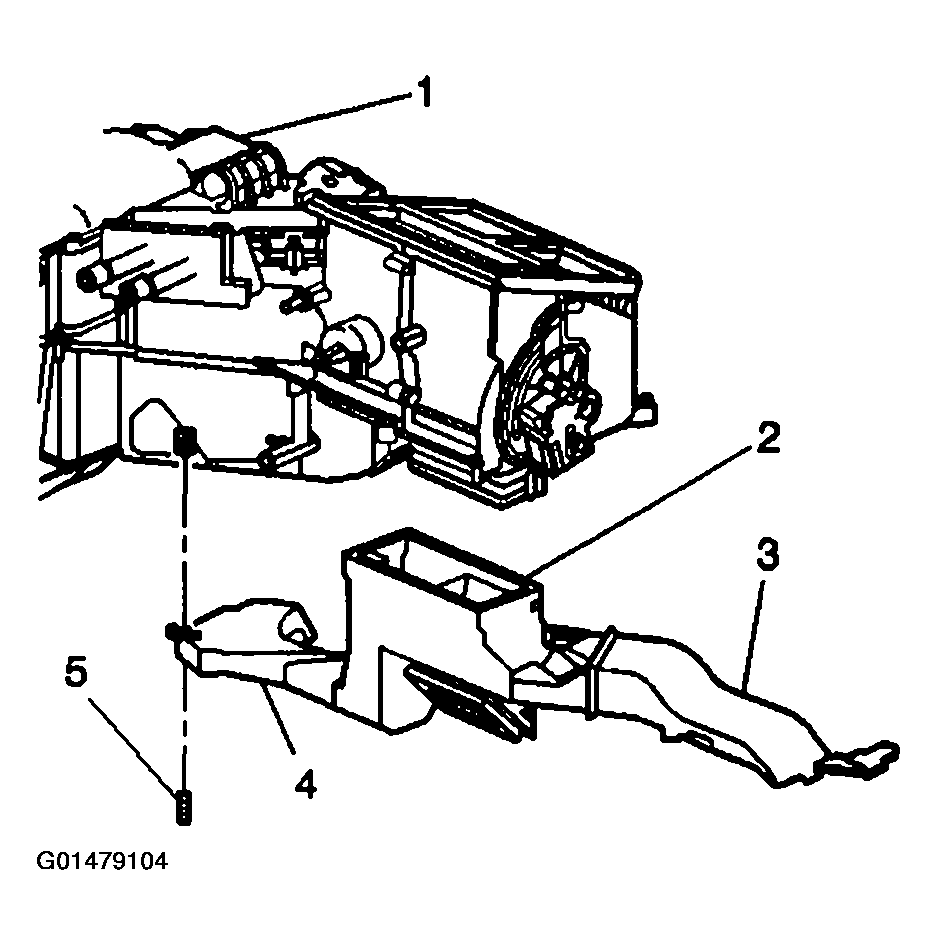

    Fig 1: Install Push Pin To Left Floor Air Outlet Duct
    G01479104Courtesy of GENERAL MOTORS CORP.
