Differential Carrier Covers
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the covers in solvent.
- Inspect the covers for the following:

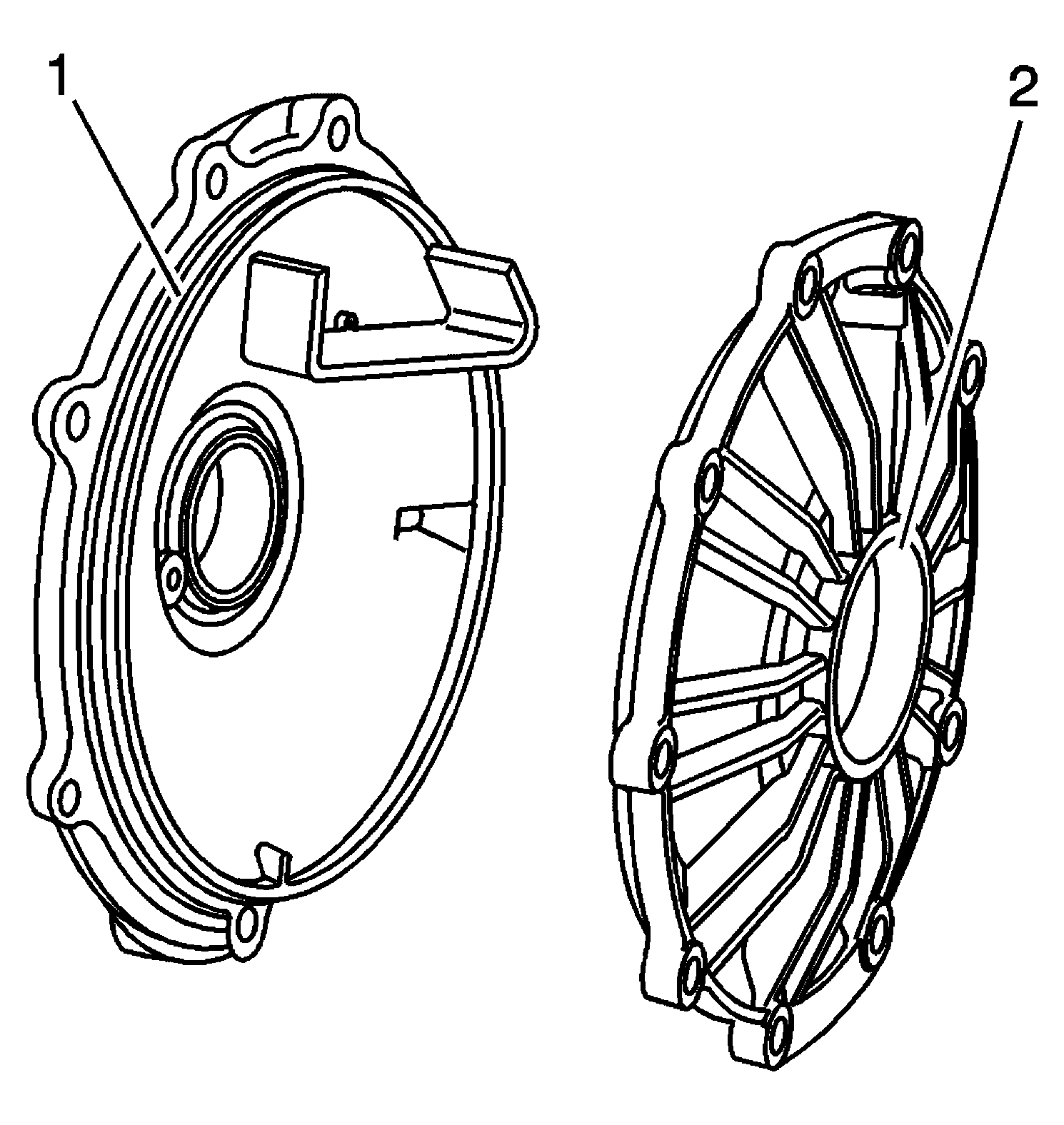

- Damage to the O-ring seal grooves (1)
- Damage to the axle shaft oil seal bores (2)
- Restrictions within the internal oil passages
- Porosity
- Dents or damage to the exterior of the cover - rear that may create interference with the pinion shaft
