Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

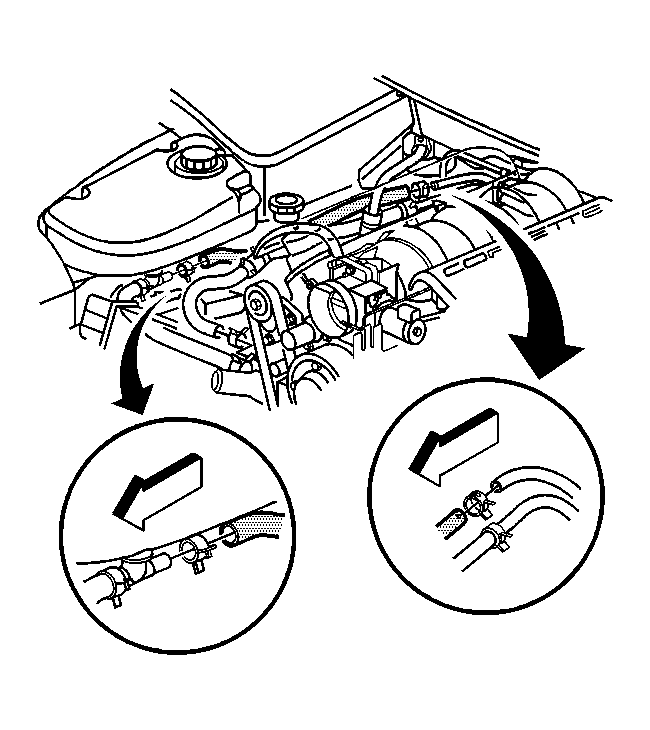

Fig 1: Inlet Heater Hose, Heater Pipe & Coolant Pump

Courtesy of GENERAL MOTORS CORP.

Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the heater outlet pipe end, and the coolant surge tank inlet.

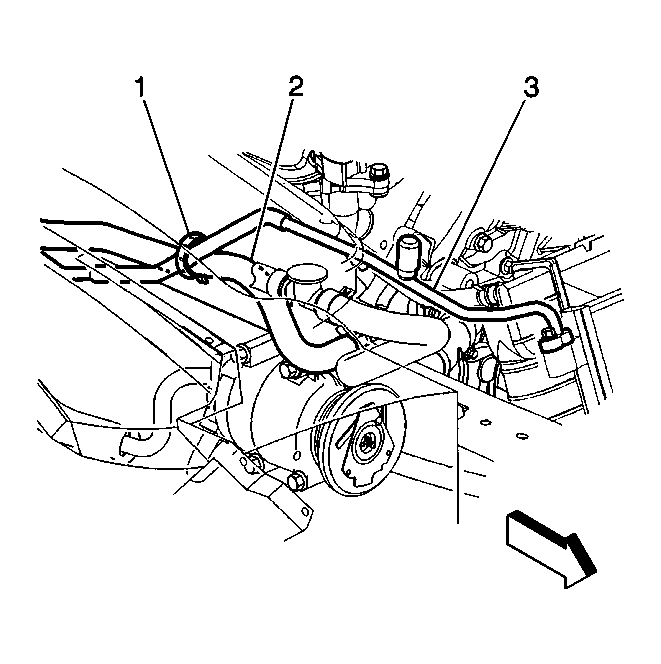

Fig 2: Front Evaporator Tube, Heater Inlet Hose & Retaining Strap

Courtesy of GENERAL MOTORS CORP.

Install a new retaining strap (1) to retain the heater inlet hose (2) to the evaporator tube - front.
Position the retaining strap as shown.

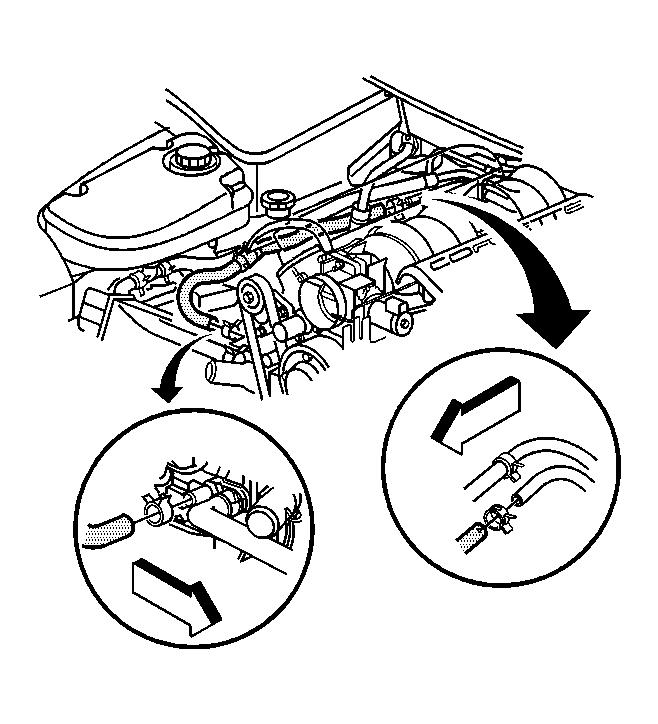

Fig 3: Engine Cooling Coolant

Courtesy of GENERAL MOTORS CORP.

Install the outlet heater hose to the heater outlet pipe.
Using the J 38185 , install the heater hose clamp.
Align the heater hose clamp as shown.
Install the outlet heater hose to the coolant surge tank.
Using the J 38185 , install the heater hose clamp.
Align the heater hose clamp as shown.
Refill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
