Removal (3.8L - Impala & Monte Carlo)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secondary Air Injection (AIR) pump is located under left front of vehicle. See Fig 1. Raise and support the vehicle. Remove the left wheel assembly. Remove the left front fender liner. See LEFT FRONT FENDER LINER  under MISCELLANEOUS.
  2. Loosen the AIR exhaust pipe hose pinch clamp. Disconnect the AIR exhaust hose from the AIR pump. Disconnect the AIR pump electrical connector. Remove the bolts securing the AIR pump bracket to the frame. Remove the AIR pump and bracket as an assembly.

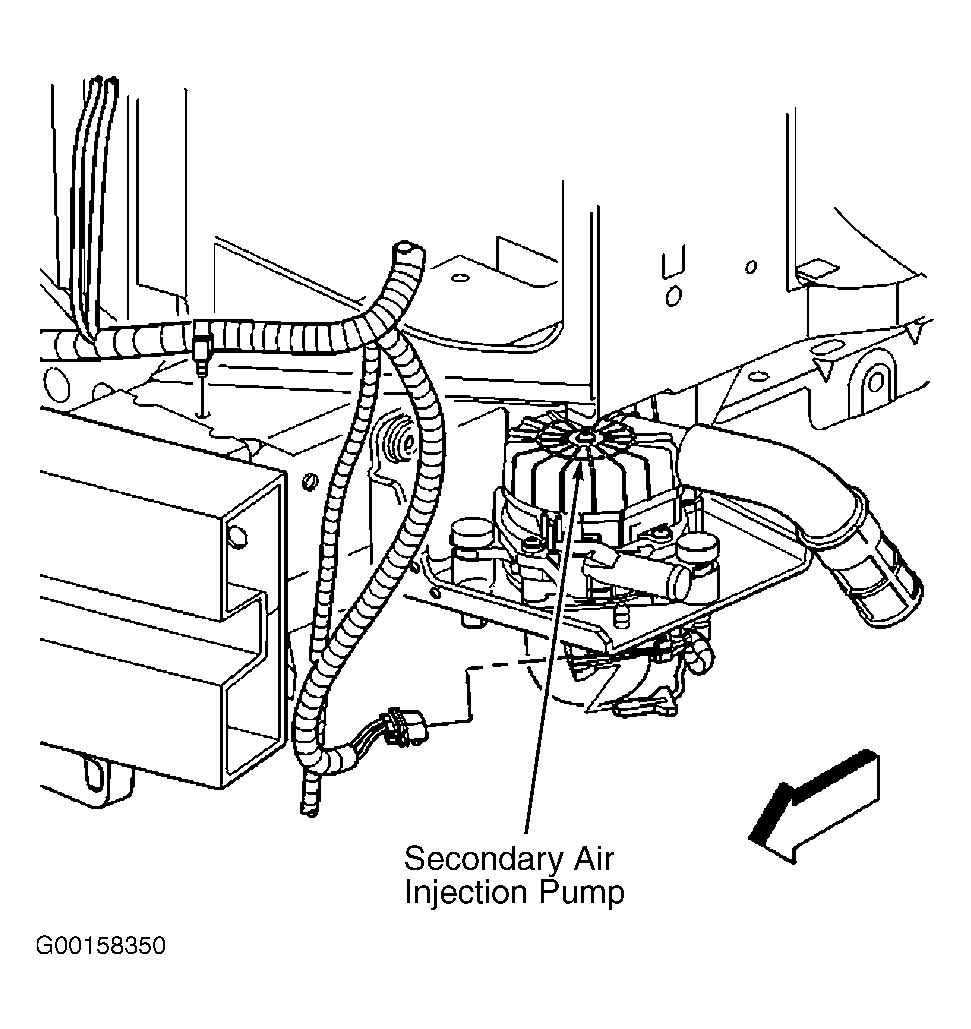

Fig 1: Locating Secondary Air Injection Pump (3.8L - Impala & Monte Carlo)
G00158350Courtesy of GENERAL MOTORS CORP.
