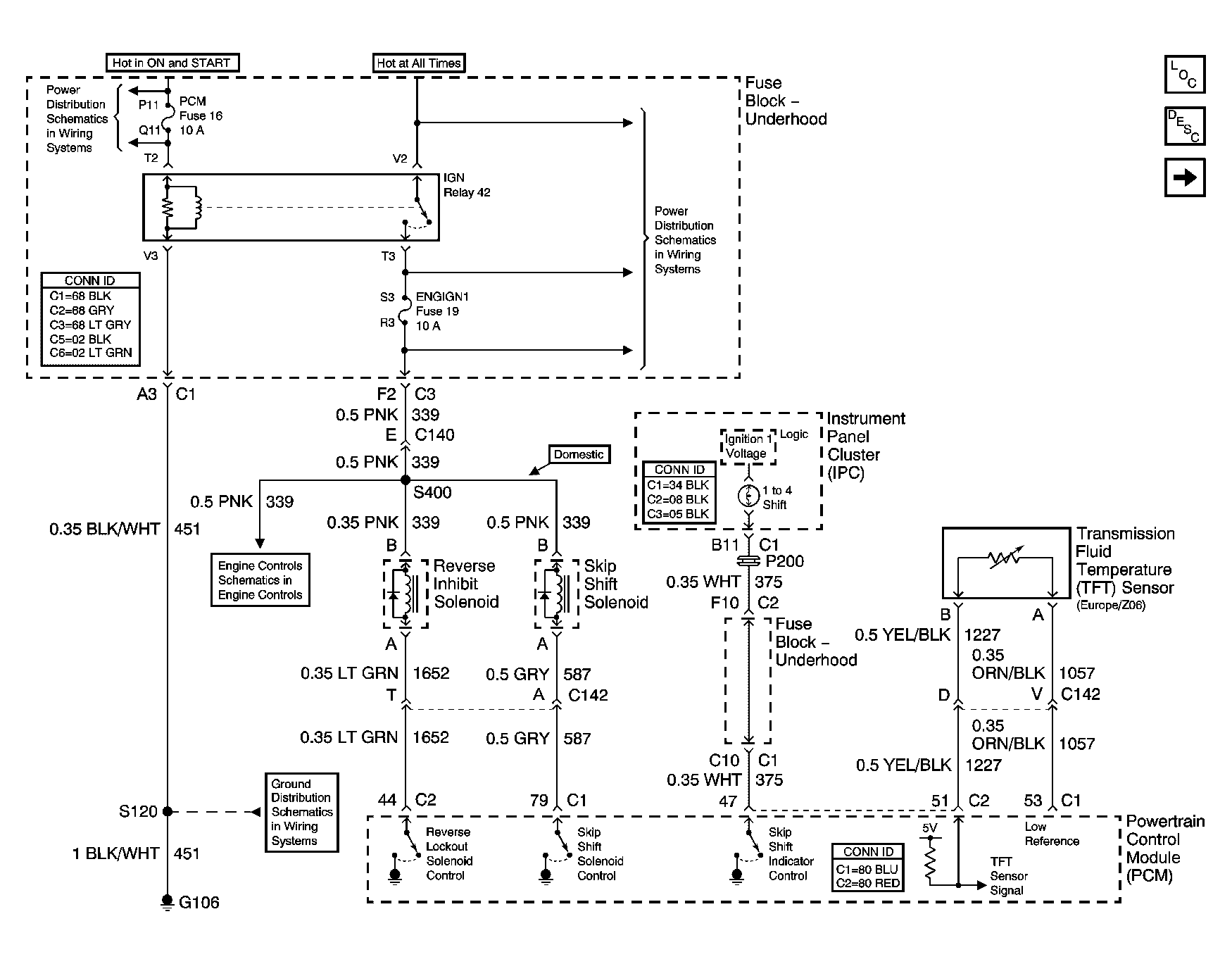

Fig 1: Solenoid Controls And TFT Sensor Schematics
Courtesy of GENERAL MOTORS CORP.

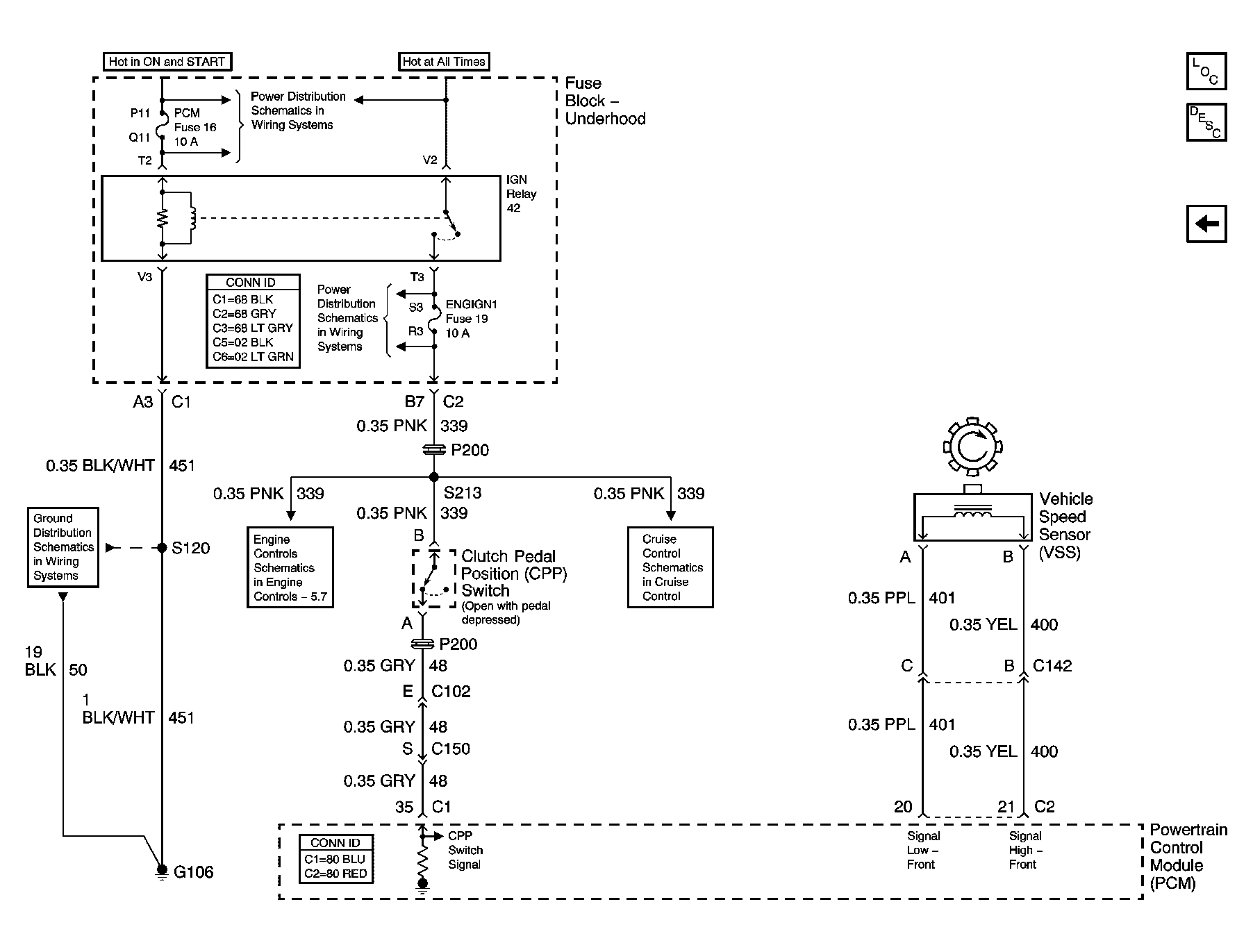

Fig 2: Clutch Pedal Position Schematics (CPP) Switch And Vehicle Speed Sensor (VSS)
