Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

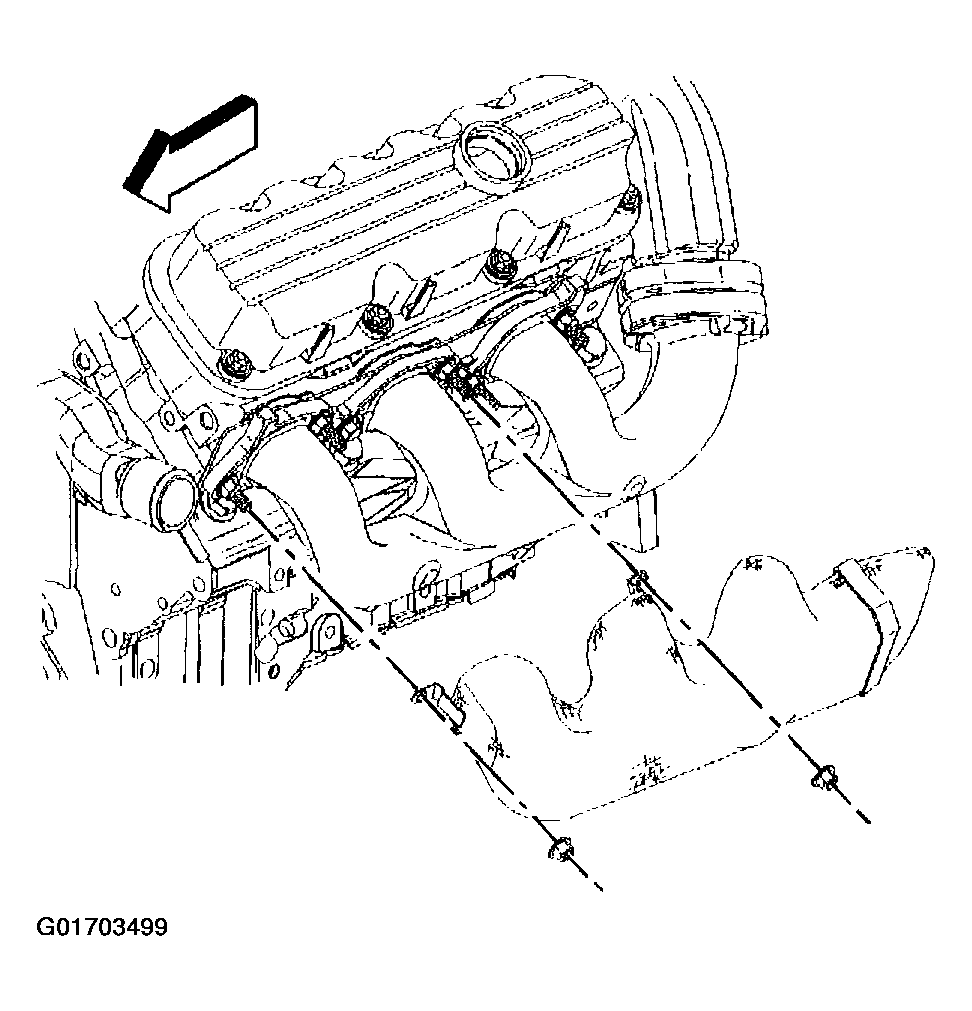

    Fig 1: Exhaust Manifold Heat Shield & Nuts
    G01703499Courtesy of GENERAL MOTORS CORP.
  3. Remove the left engine lift hook nut and bolt.
  4. Remove the left engine lift hook.
  5. Remove the left side spark plugs.

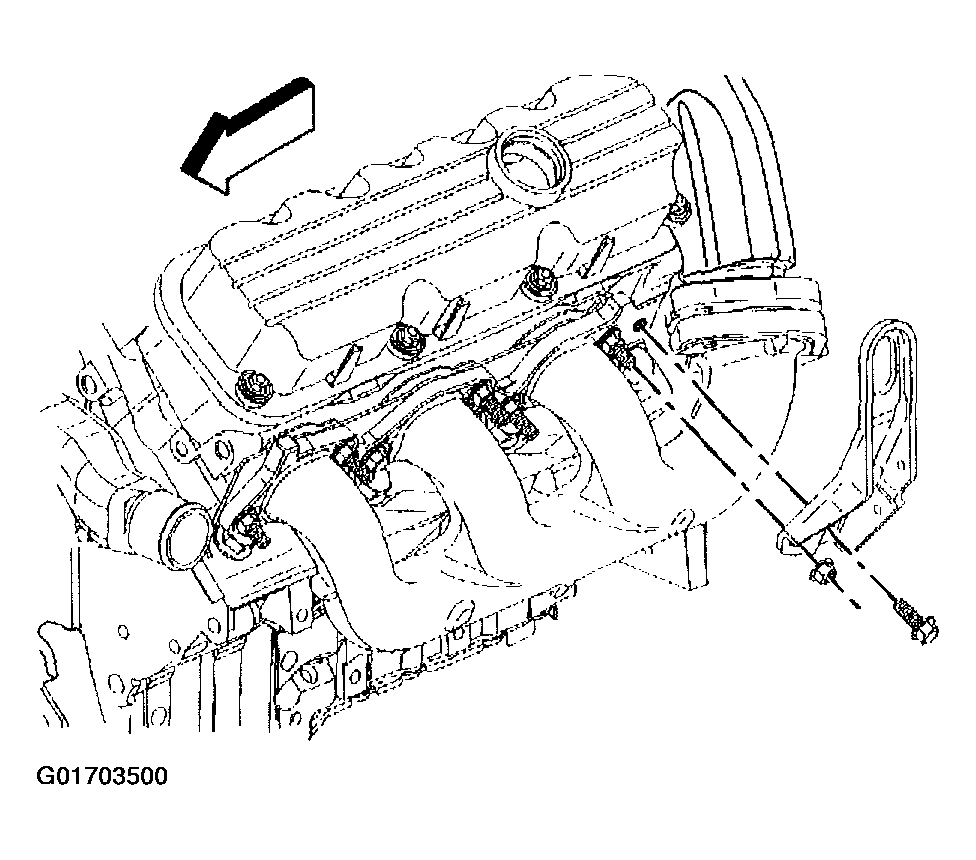

    Fig 2: Left Engine Lift Hook, Nut, Bolt & Left Side Spark Plugs
    G01703500Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold bolt and studs.
  7. Remove the exhaust manifold.
  8. Remove the exhaust manifold gasket.

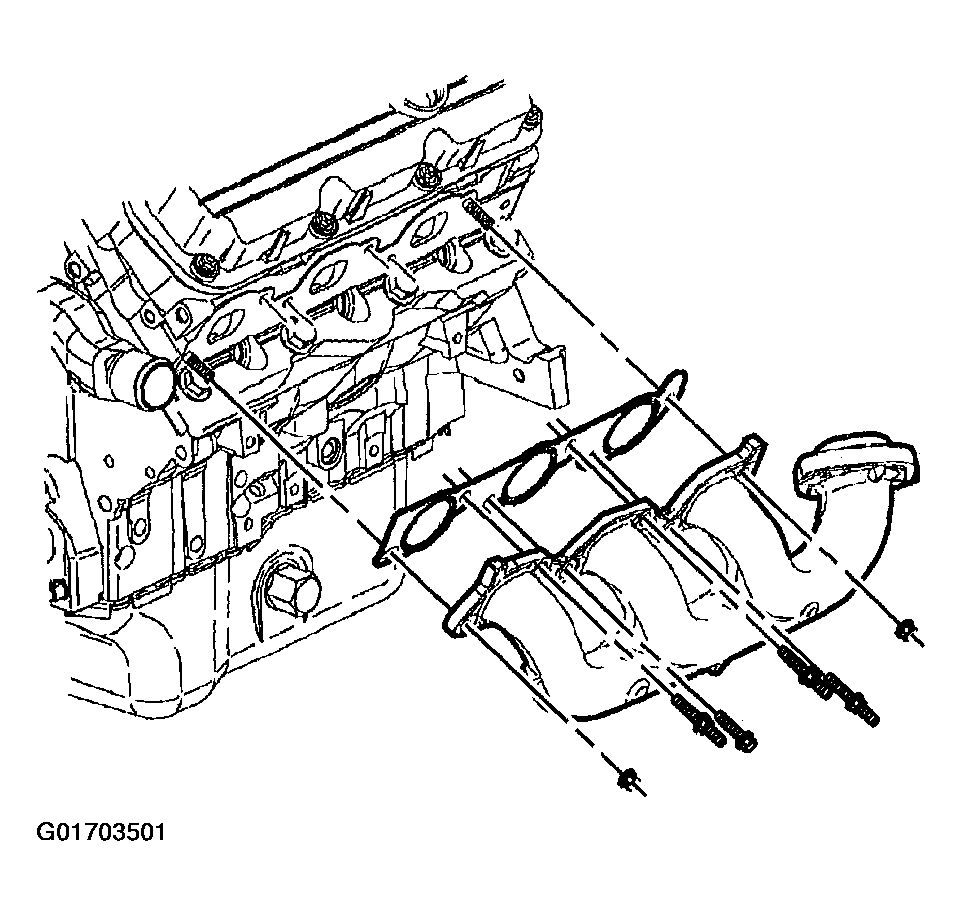

    Fig 3: Exhaust Manifold, Bolt, Studs & Gasket
    G01703501Courtesy of GENERAL MOTORS CORP.
  9. Remove the exhaust manifold studs.

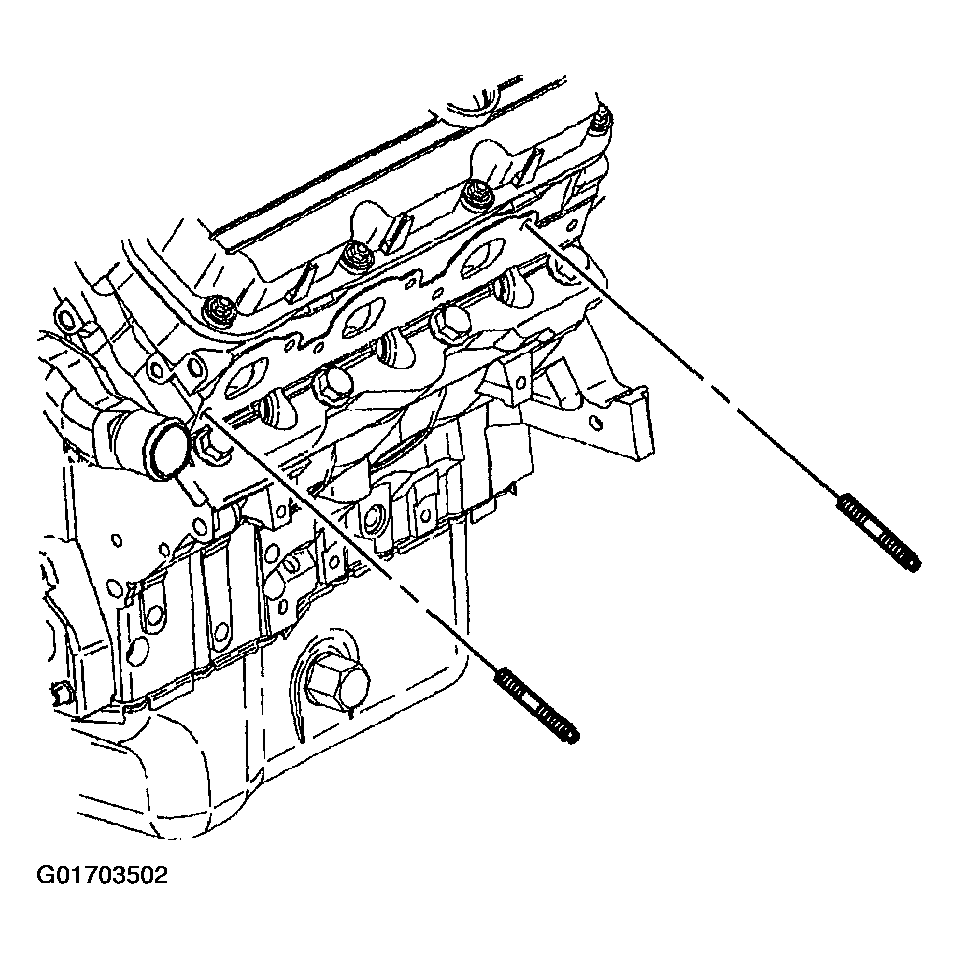

    Fig 4: Exhaust Manifold Studs
    G01703502Courtesy of GENERAL MOTORS CORP.
