Engine Front Cover Removal

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor shield.

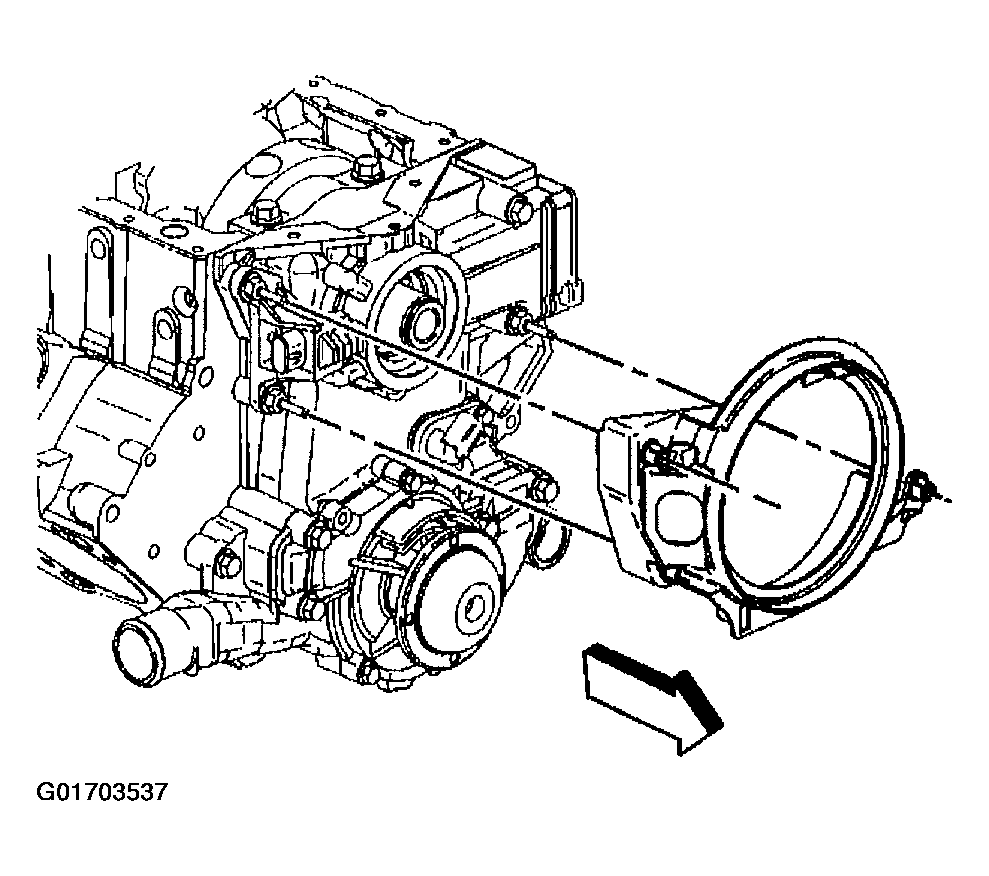

    Fig 1: Crankshaft Position Sensor Shield
    G01703537Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft position sensor studs.
  3. Remove the crankshaft position sensor.
  4. Remove the bolts connecting the oil pan to the engine front cover.

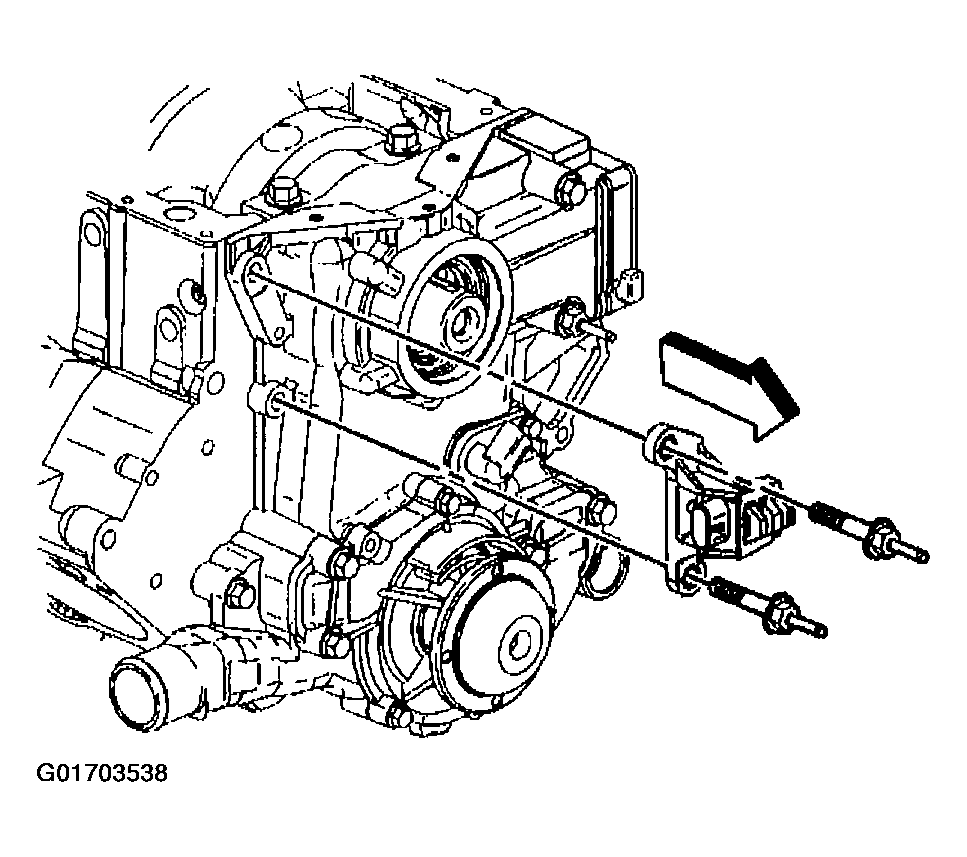

    Fig 2: Crankshaft Position Sensor, Studs & Oil Pan-To-Engine Front Cover Bolts
    G01703538Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts and stud.
  6. Remove the engine front cover.

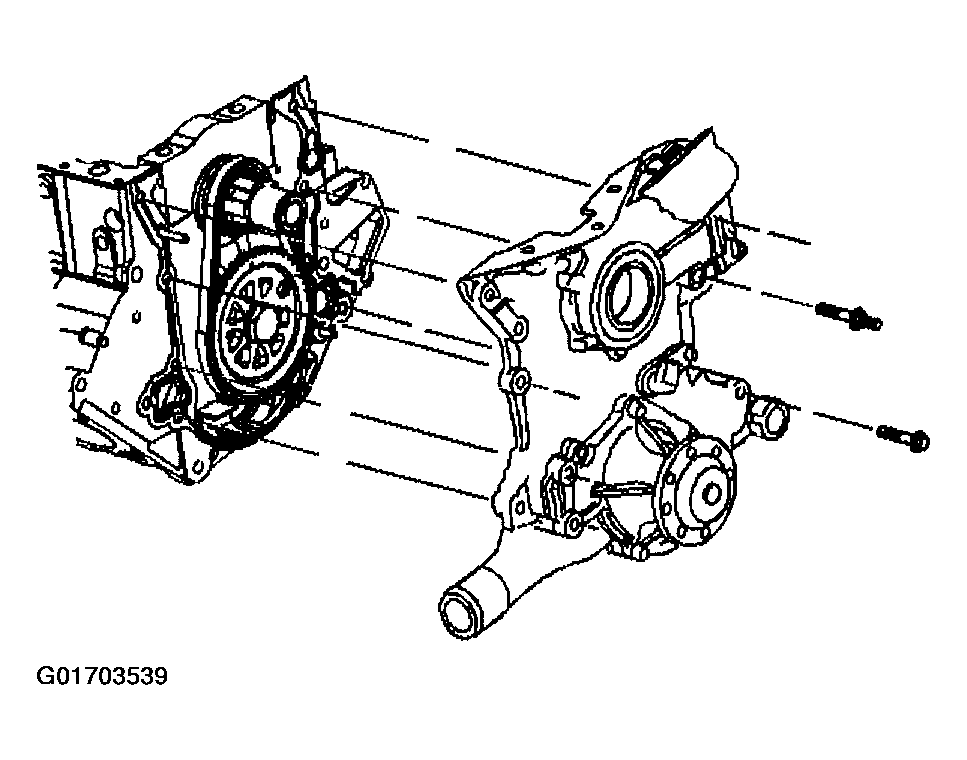

    Fig 3: Engine Front Cover, Bolts & Stud
    G01703539Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine front cover gasket.

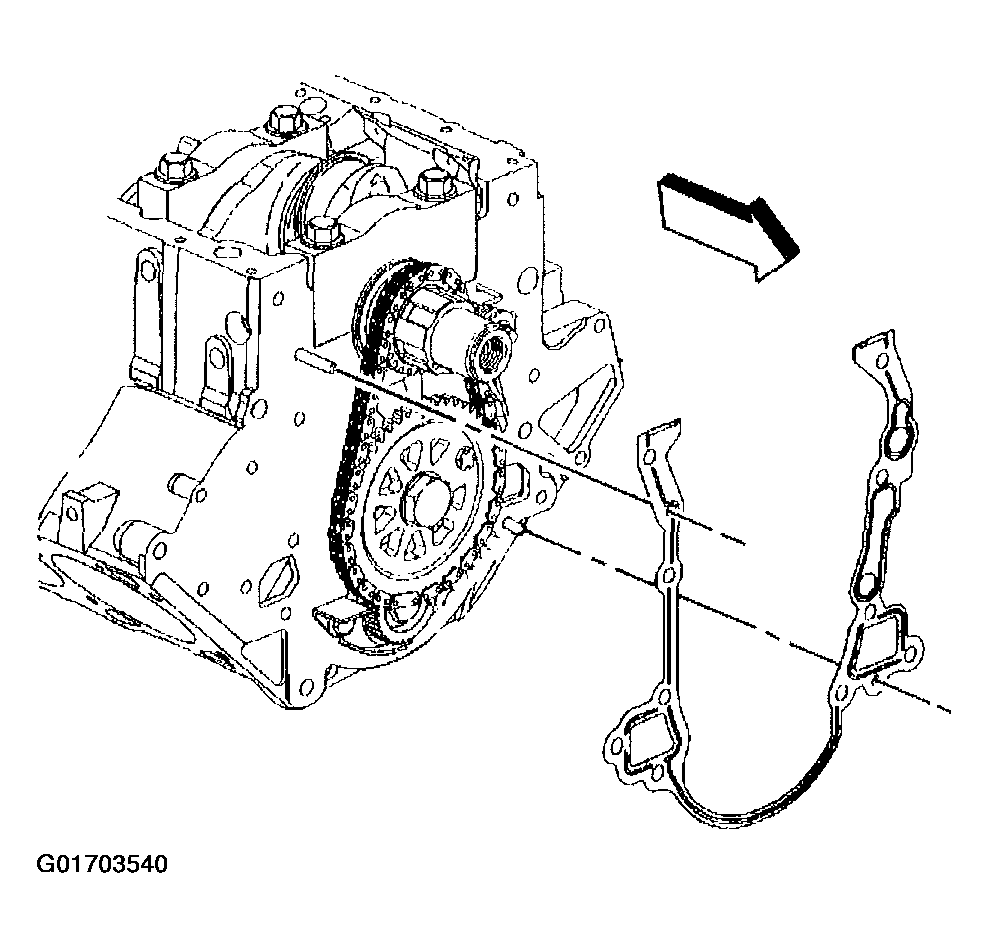

    Fig 4: Engine Front Cover Gasket
    G01703540Courtesy of GENERAL MOTORS CORP.
