Drive Belt idler Pulley Bracket Installation (L67)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt idler pulley bracket bolts.

    Tighten

    Tighten the drive belt idler pulley bracket bolts to 30 N.m (22 Ib. ft).

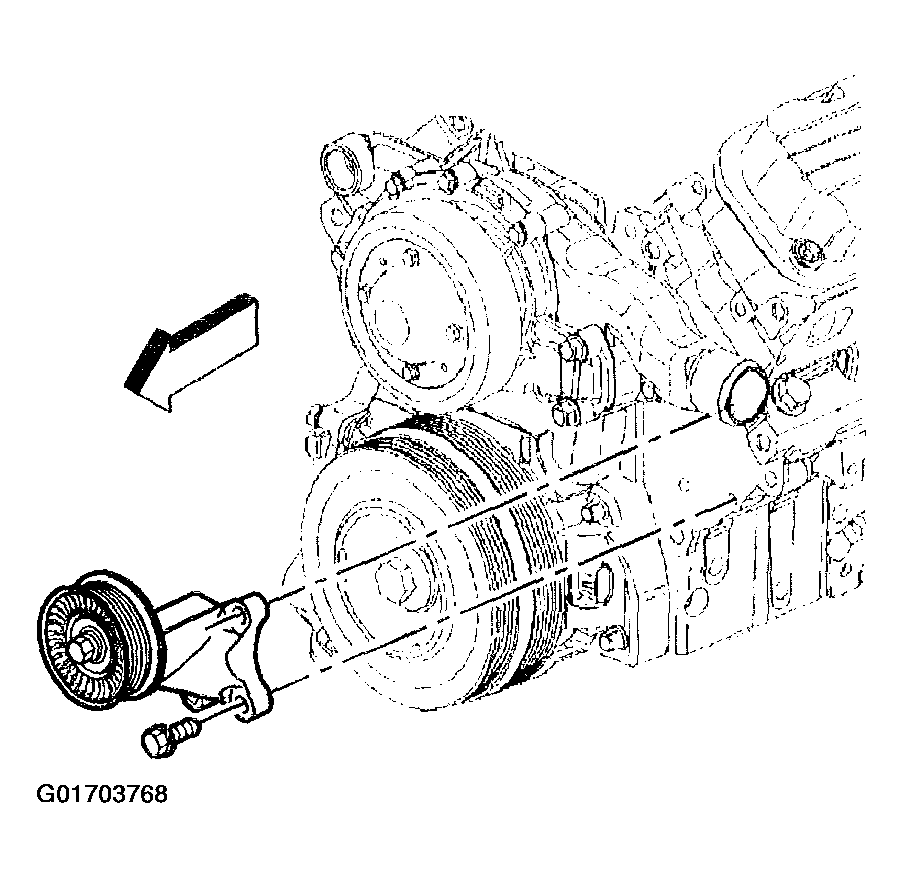

    Fig 1: Drive Belt Idler Pulley Bracket & Bolts
    G01703768Courtesy of GENERAL MOTORS CORP.
