Drive Belt Idler Pulley Removal (L67)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt idler pulley bolt.
  2. Remove the drive belt idler pulley.

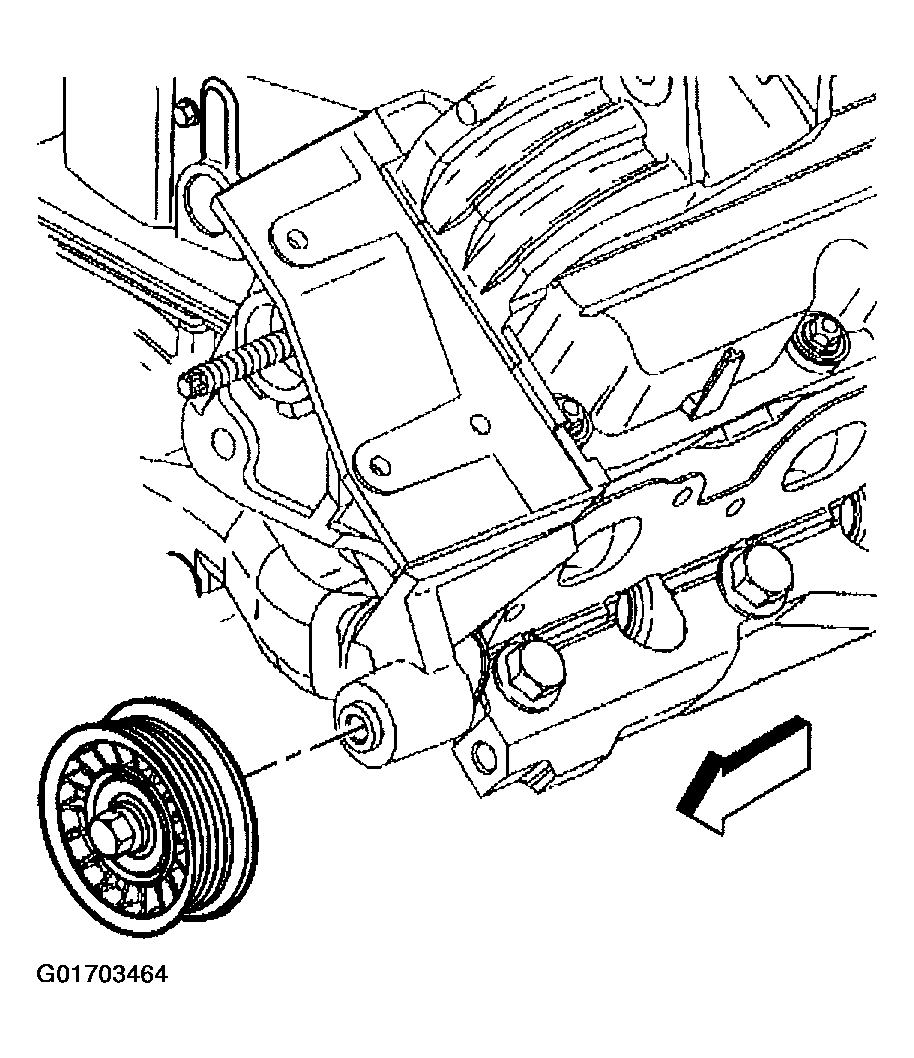

    Fig 1: Drive Belt Idler Pulley & Bolt
    G01703464Courtesy of GENERAL MOTORS CORP.
