Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C- pillar retaining screw.
  2. Use the J 38778  in order to release the fasteners that retain the panel to the vehicle.

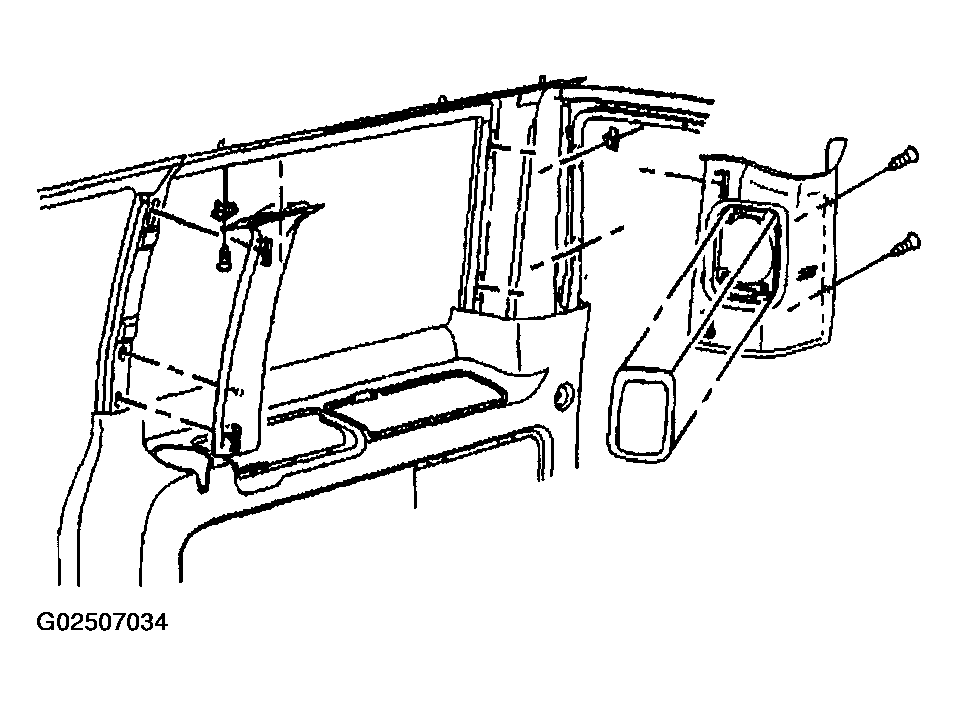

    Fig 1: Removing Third Pillar Right Trim Panel
    G02507034Courtesy of GENERAL MOTORS CORP.
