Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the panel to the vehicle:
    1. 1.1. Align the C- pillar retaining clips with the holes in the body.
    2. 1.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. 2. Install the C - pillar retaining screw.

    Tighten

    Tighten the C- pillar retaining screw to 2 N.m (18 in. lb.).

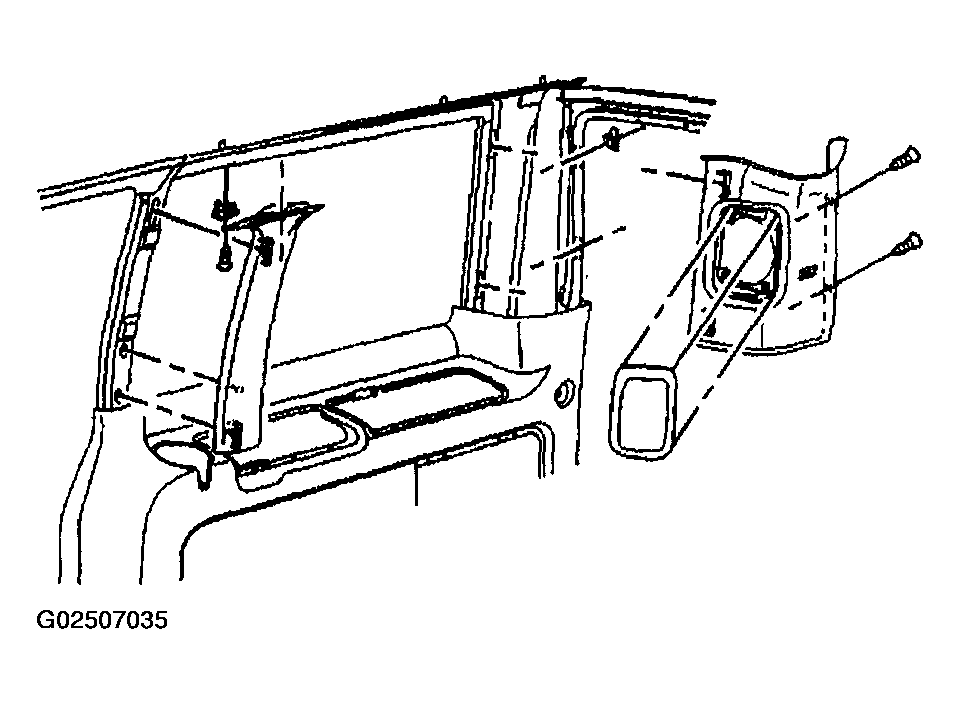

    Fig 1: Installing Third Pillar Right Trim Panel
    G02507035Courtesy of GENERAL MOTORS CORP.
