Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door(s).
  2. Remove the screws from the panel in the rear door opening.
  3. Use J 38778  in order to release the fasteners that retain the panel to the vehicle.
  4. Disconnect the speaker electrical connector, if equipped.

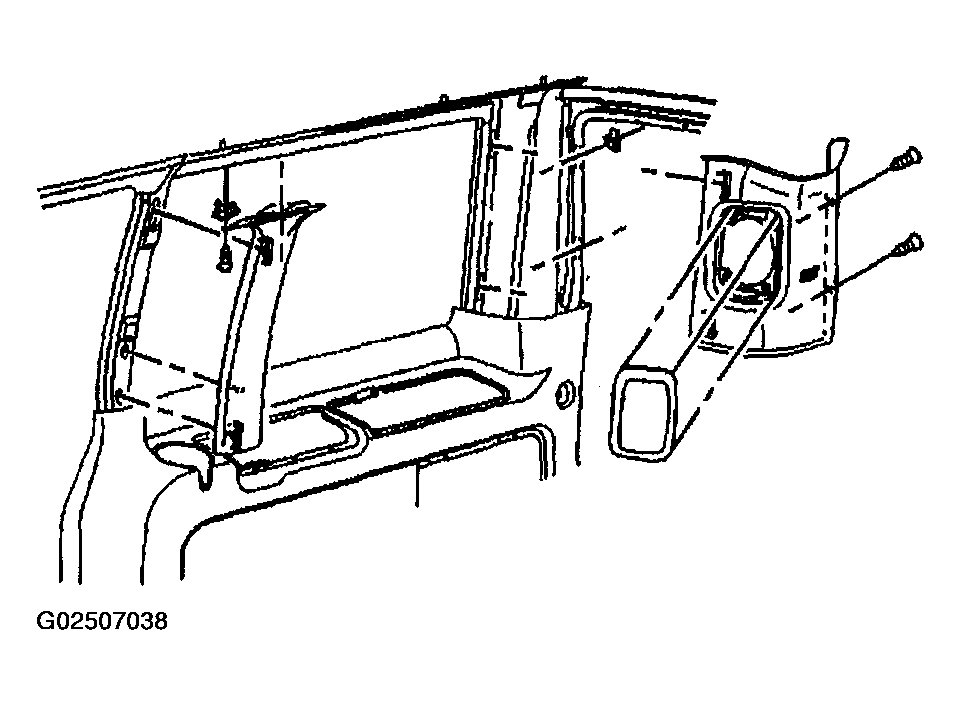

    Fig 1: Removing Fourth Pillar Right Trim Panel
    G02507038Courtesy of GENERAL MOTORS CORP.
