Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C and the D pillar trim. Refer to Trim Replacement - Third Pillar Right  and Trim Replacement - Fourth Pillar Left  .
  2. Remove the jack access panel.
  3. Remove the upper and the lower belt anchors. Refer to SEAT BELT RETRACTOR REPLACEMENT - NO. 2 LEFT and SEAT BELT RETRACTOR REPLACEMENT - NO. 2 RIGHT in Seat Belts.
  4. Remove the cargo net bolt.
  5. Remove the screw that retains the panel to the C pillar.
  6. Use the J 38778  in order to release the fasteners that retain the panel to the vehicle.

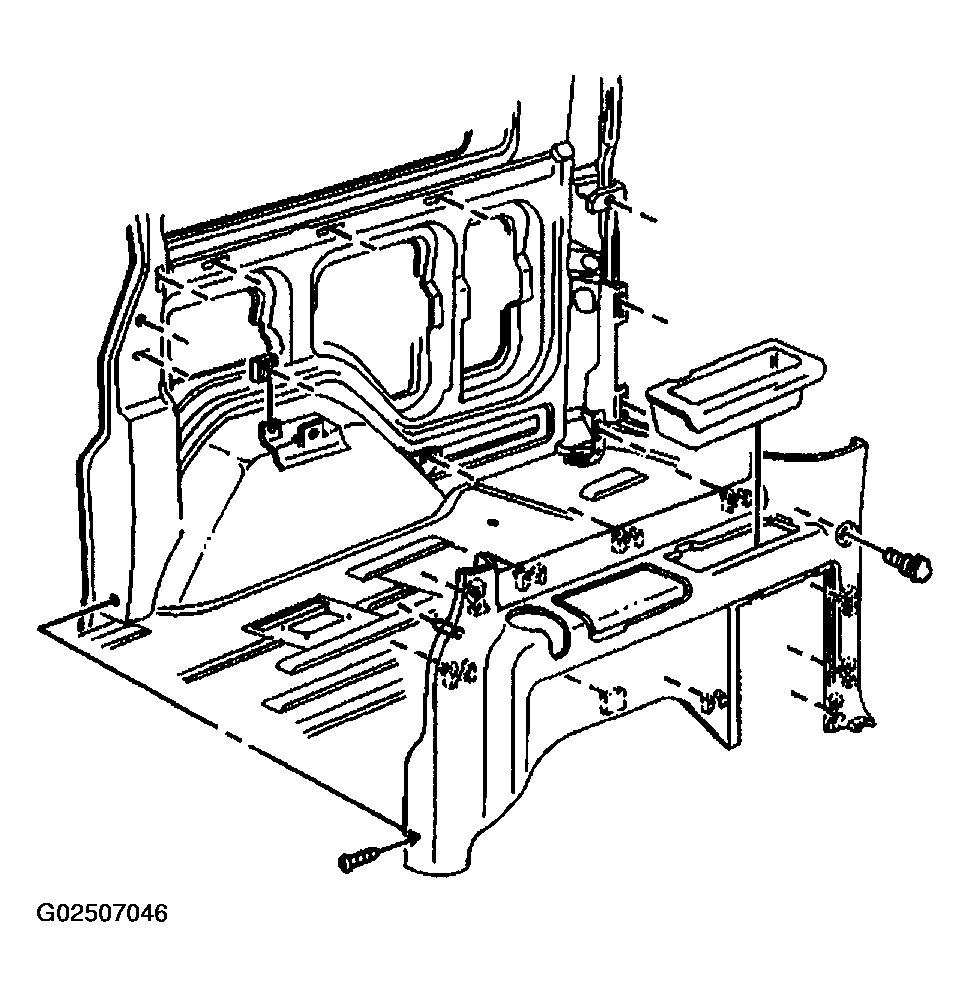

    Fig 1: Removing Right Body Side Trim Panel
    G02507046Courtesy of GENERAL MOTORS CORP.
