Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's or the passenger's knee bolster. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .
  2. Remove the screws that retain the panel to the cowl side.
  3. Remove the trim panel from the vehicle.

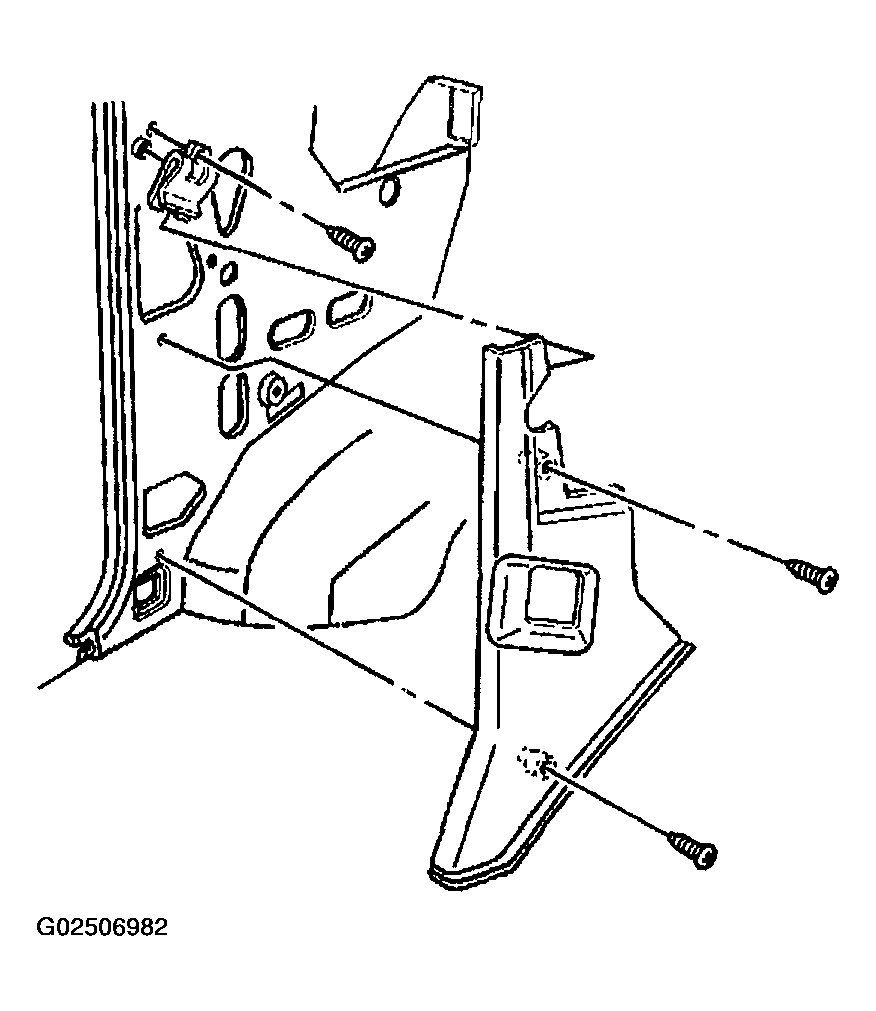

    Fig 1: Removing Cowl Side Trim Panel
    G02506982Courtesy of GENERAL MOTORS CORP.
