Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screws that retain the trim panel to the cowl side.

    Tighten

    Tighten the screws that retain the trim panel to the cowl side to 2 N.m (18 in. lb.).

  3. Install the driver's or the passenger's knee bolster. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .

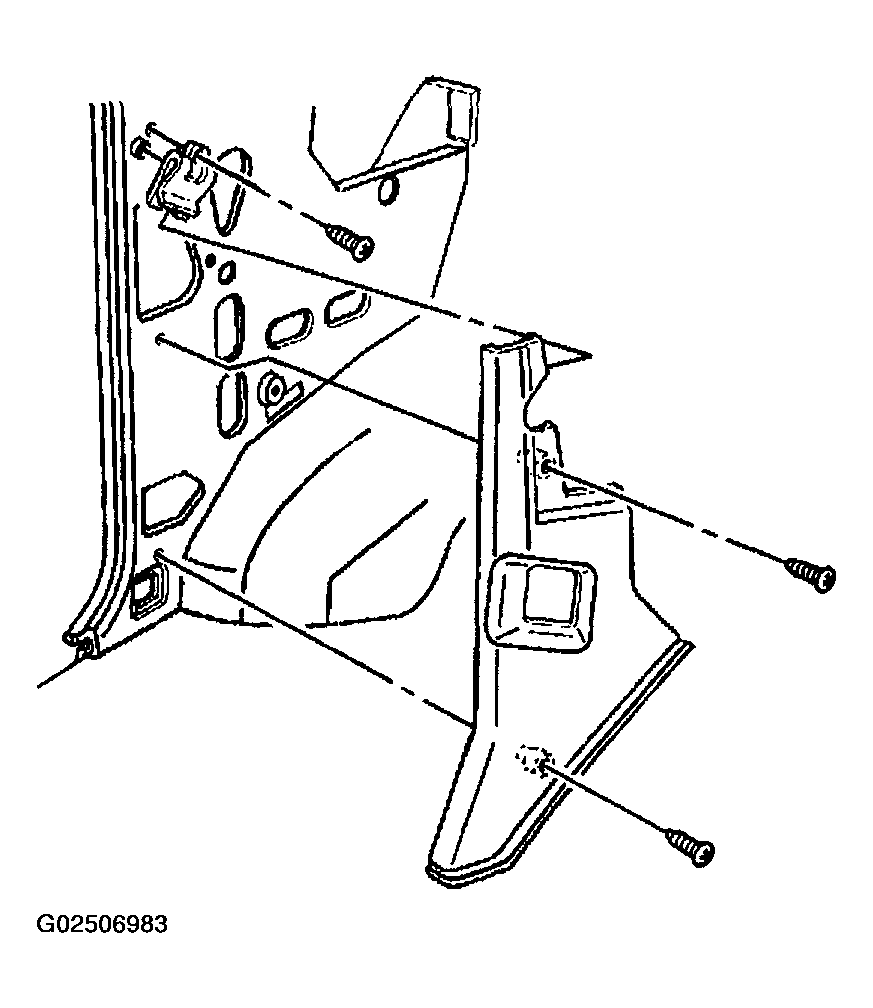

    Fig 1: Installing Cowl Side Trim Panel
    G02506983Courtesy of GENERAL MOTORS CORP.
