Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear audio controls to the trim panel, if equipped. Refer to AUDIO CONTROL REPLACEMENT - REAR SEAT in Entertainment.
  2. Connect the electrical connector to the rear audio controls.
  3. Install the body side front upper trim panel to the vehicle:
    1. 3.1. Align the retaining clips with the holes in the body.
    2. 3.2. Press the panel in order to seat the fasteners into place.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  4. Install the retaining screw to the B pillar.

    Tighten

    Tighten the retaining screw to the B pillar to 2 N.m (18 in. lb.).

  5. Install the intermediate swing-out window latch. Refer to WINDOW REPLACEMENT - SWING OUT in Stationary Windows.
  6. Install the body side front lower trim panel. Refer to Trim Panel Replacement - Body Side Front Lower  .

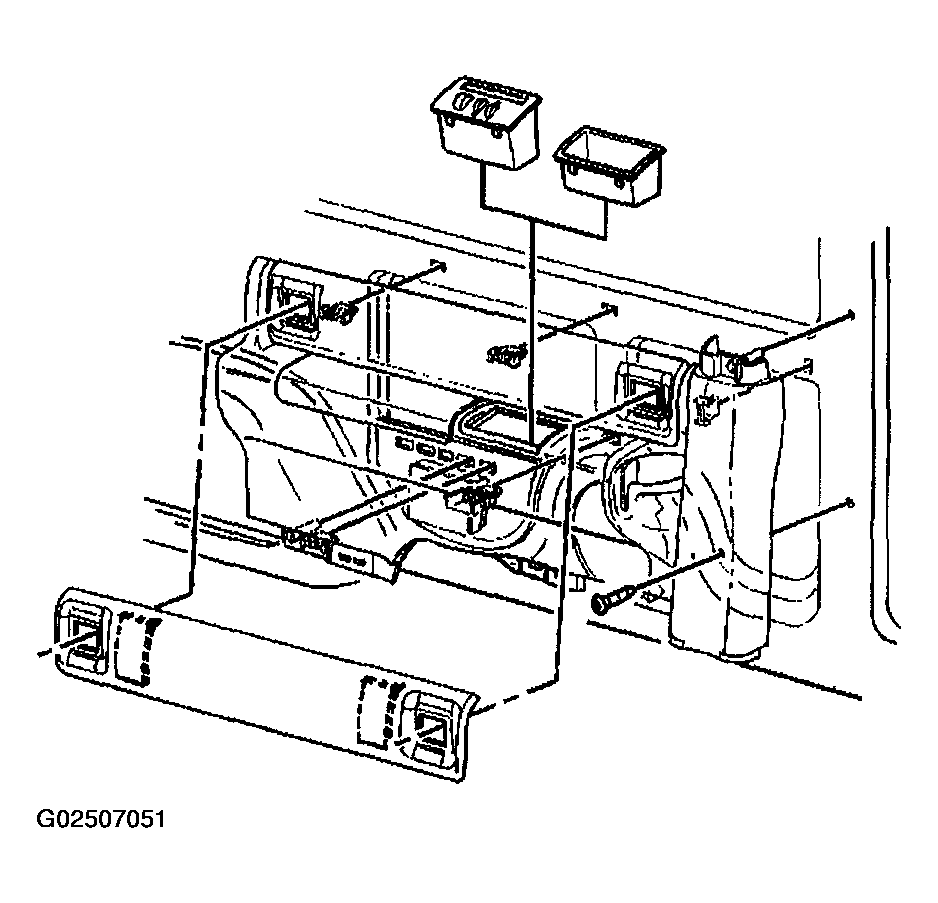

    Fig 1: Installing Upper Body Side Front Trim Panel
    G02507051Courtesy of GENERAL MOTORS CORP.
