Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intermediate seat. Refer to SEAT REPLACEMENT - REAR BENCH (2002) in Seats.
  2. Remove the driver's door stepwell lamp cover retaining screw.
  3. Remove the stepwell lamp assembly from the body side lower storage pocket.
  4. Use the J 38778  in order to remove the body side front lower trim panel from the vehicle.

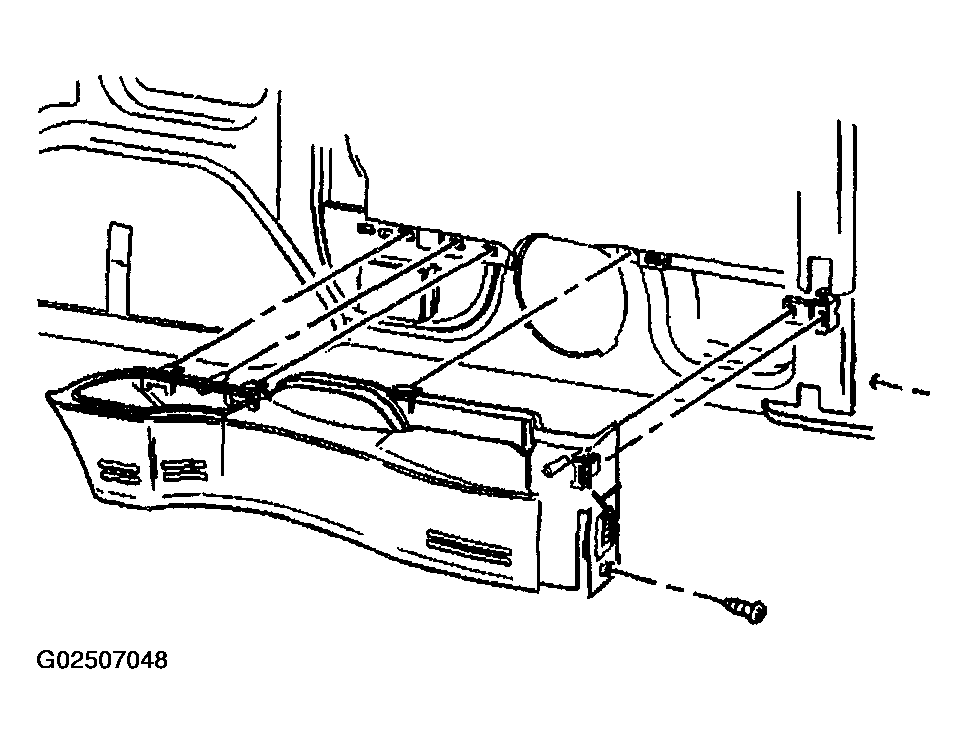

    Fig 1: Removing Body Side Front Lower Trim Panel
    G02507048Courtesy of GENERAL MOTORS CORP.
