Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side trim panel. Refer to the following procedures:
  2. Remove the wheelhouse carpet from the vehicle.

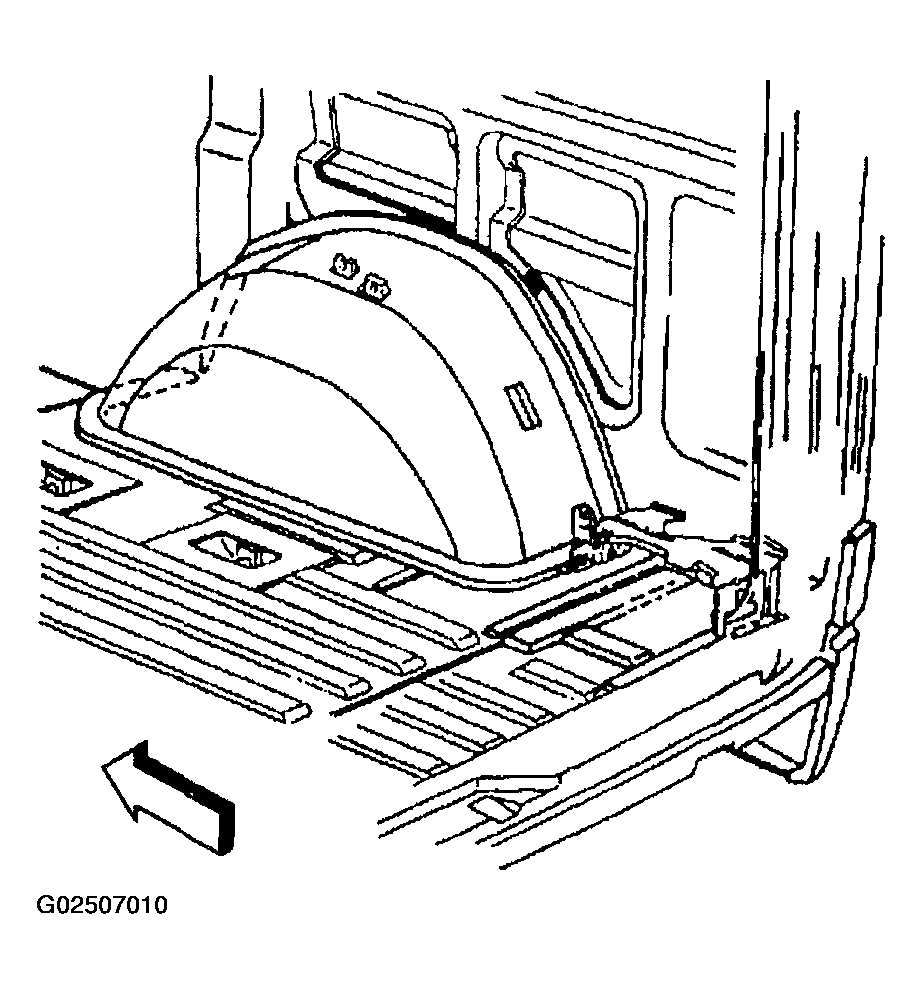

    Fig 1: Removing Rear Wheelhouse Floor Mat/Carpet
    G02507010Courtesy of GENERAL MOTORS CORP.
