Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seats and the risers. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the engine cover. Refer to Engine Cover Replacement  .
  3. Remove the trim plates from the following doors:
  4. Remove the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side  .
  5. Remove the right front side door lock pillar garnish molding. Refer to Garnish Molding Replacement - RF Lock Pillar  .
  6. Remove the body side front lower trim panel. Refer to Trim Panel Replacement - Body Side Front Lower  .
  7. Remove the left body side trim panel. Refer to Trim Panel Replacement - Left Body Side  .
  8. Remove the right body side trim panel. Refer to Trim Panel Replacement - Right Body Side  .
  9. Remove the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.
  10. The carpet bezels are retained by sonic weld and are not to be removed.
  11. Remove the carpet from the vehicle.

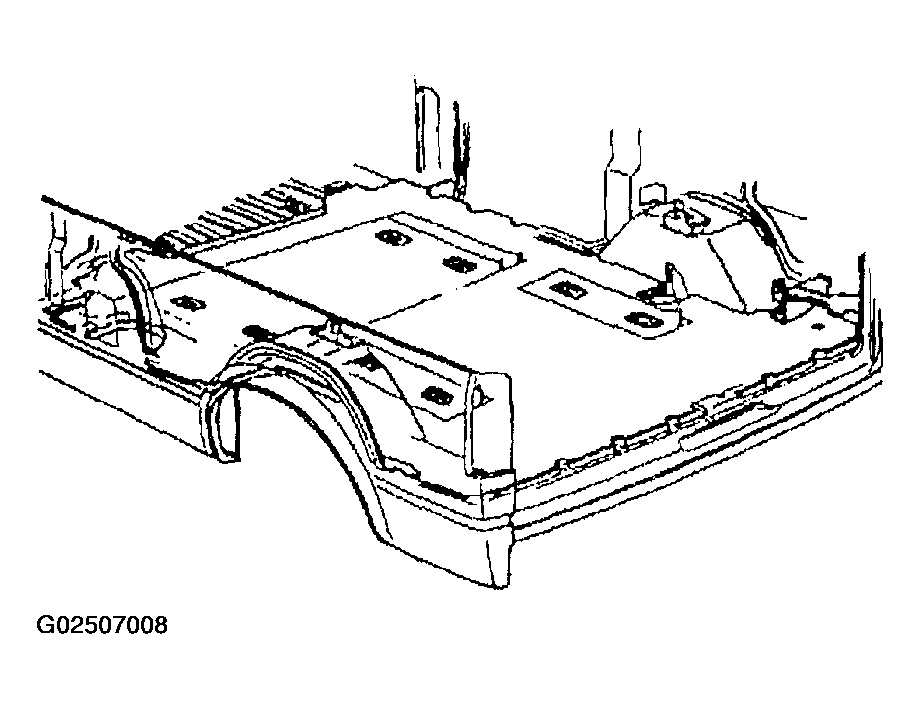

    Fig 1: Removing Rear Floor Mat/Carpet - (B38)
    G02507008Courtesy of GENERAL MOTORS CORP.
