Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the carpet into the vehicle.
  2. The carpet bezels are retained by sonic weld and are not to be removed.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.

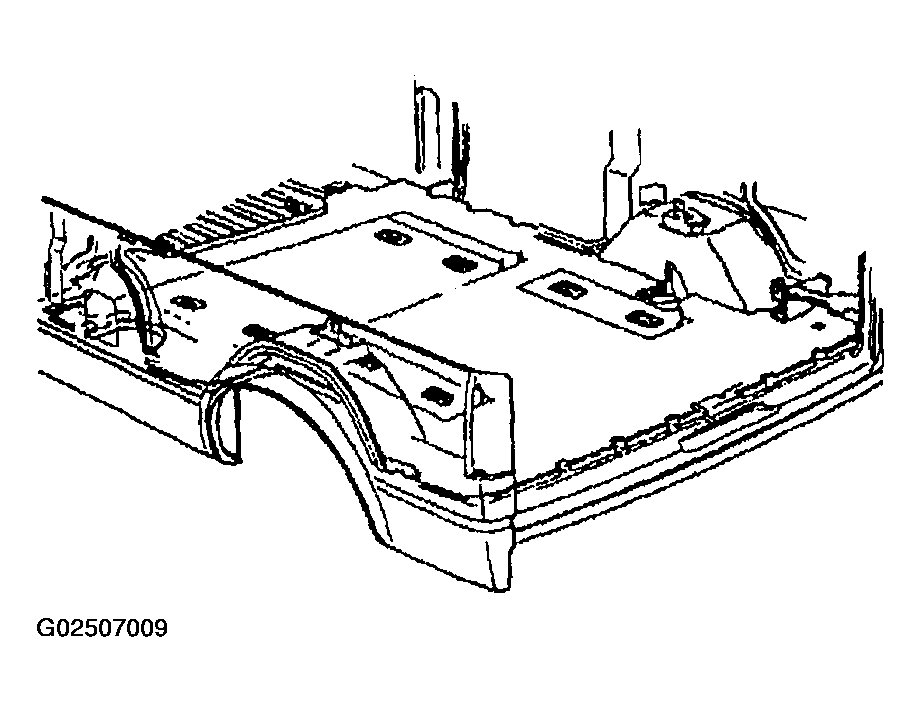

    Fig 1: Installing Rear Floor Mat/Carpet - (B38)
    G02507009Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.

    Tighten

    Tighten the bolt that retains each cargo net anchor to the floor 2 N.m (18 in. lb.).

  4. Install the right body side trim panel. Refer to Trim Panel Replacement - Right Body Side  .
  5. Install the left body side trim panel. Refer to Trim Panel Replacement - Left Body Side  .
  6. Install the body side front lower trim panel. Refer to Trim Panel Replacement - Body Side Front Lower  .
  7. Install the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side  .
  8. Install the right front side door lock pillar garnish molding. Refer to Garnish Molding Replacement - RF Lock Pillar  .
  9. Install the trim plates from the following doors:
  10. Install the engine cover. Refer to Engine Cover Replacement  .
  11. Install the seats and the risers. Refer to SEAT REPLACEMENT - BUCKET .
