Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seats and the risers. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the engine cover. Refer to Engine Cover Replacement  .
  3. Remove the trim plates from the front door openings. Refer to Carpet Retainer Replacement  .
  4. Remove the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side  .
  5. Remove the throttle pedal guard.
  6. Remove the screws from the center floor air duct.
  7. Remove the center floor air duct.
  8. Remove the front side door lock pillar garnish molding. Refer to Garnish Molding Replacement - LF Lock Pillar  .
  9. Remove the carpet/mat from the vehicle.

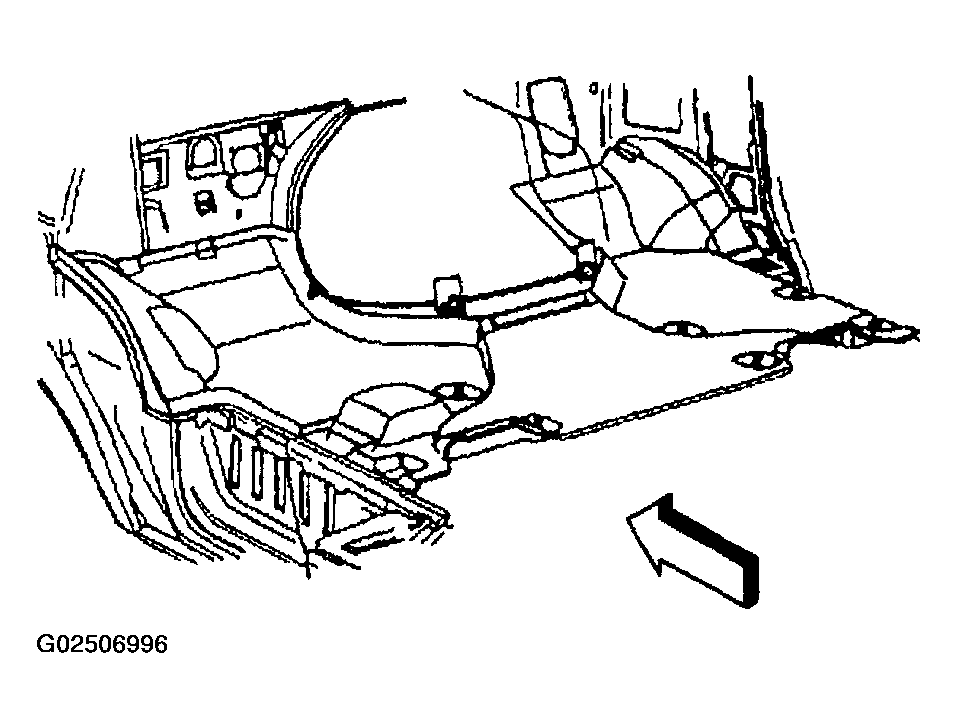

    Fig 1: Removing Carpet/Mat From Vehicle
    G02506996Courtesy of GENERAL MOTORS CORP.
