Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the carpet/mat to the vehicle.
  2. Install the center floor air duct.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the screws to the center floor air duct.

    Tighten

    Tighten the screws to the center floor air duct to 2 N.m (18 in. lb.).

  4. Install the front side door lock pillar garnish molding. Refer to Garnish Molding Replacement - LF Lock Pillar  .
  5. Install the trim plates to the front door openings. Refer to Carpet Retainer Replacement  .
  6. Install the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side  .
  7. Install the engine cover. Refer to Engine Cover Replacement  .
  8. Install the seats and the risers. Refer to SEAT REPLACEMENT - BUCKET .

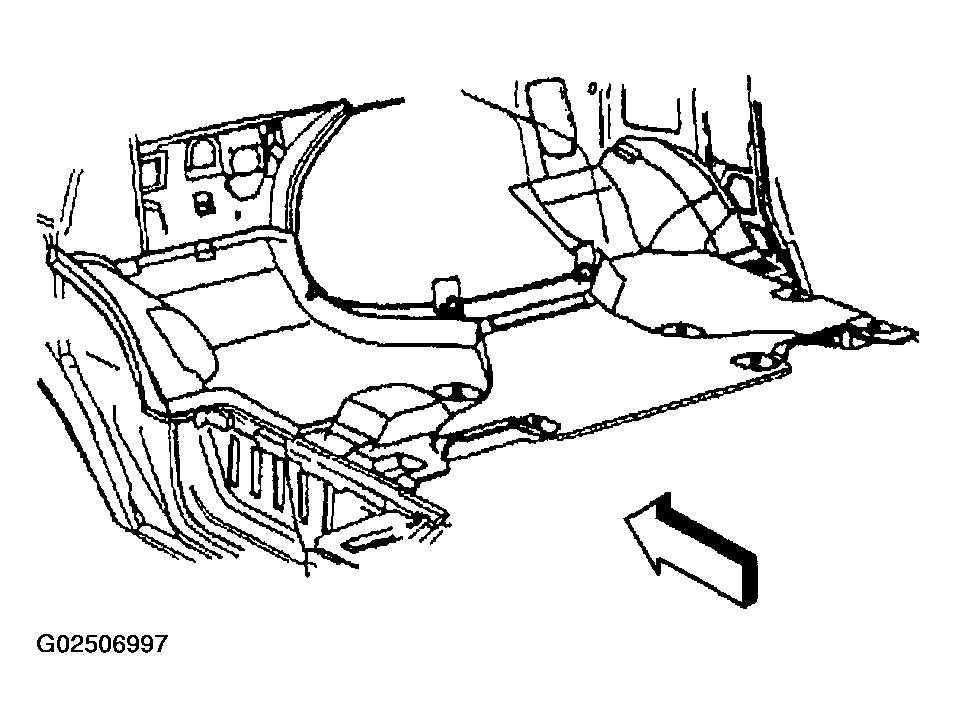

    Fig 1: Installing Carpet/Mat Into Vehicle
    G02506997Courtesy of GENERAL MOTORS CORP.
