Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the step panel cover.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the step panel cover screws.

    Tighten

    Tighten the step panel cover screws to 2 N.m (18 in. lb.).

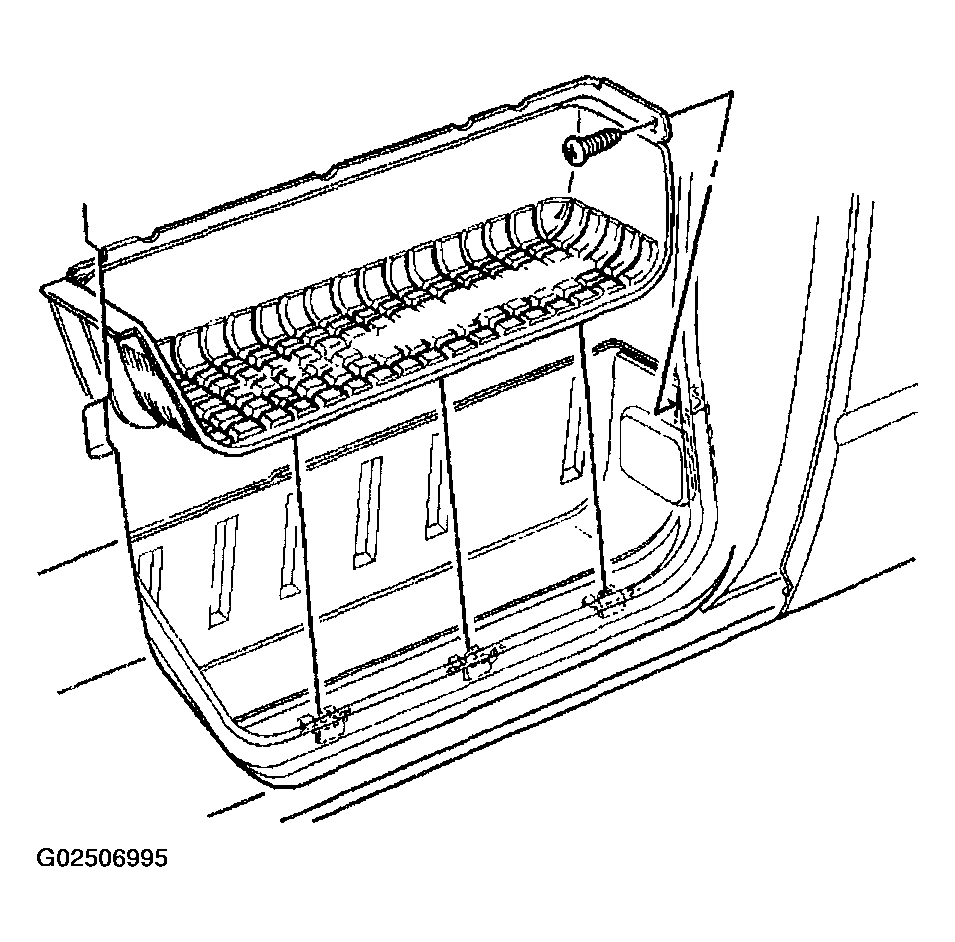

    Fig 1: Installing Step Panel Cover & Screws
    G02506995Courtesy of GENERAL MOTORS CORP.
