Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the sunshades. Refer to Sunshade Replacement .
- Remove the overhead console, if equipped. Refer to Console Replacement - Overhead .
- Refer to the following procedures in order to remove the necessary moldings:
- Garnish Molding Replacement - Rear Upper
- Garnish Garnish Molding Replacement - Side Door Opening Frame
- Garnish Molding Replacement - LF Lock Pillar
- Garnish Molding Replacement - RF Lock Pillar
- Trim Replacement - Third Pillar Left
- Trim Replacement - Third Pillar Right
- Trim Replacement - Fourth Pillar Left
- Trim Replacement - Fourth Pillar Right

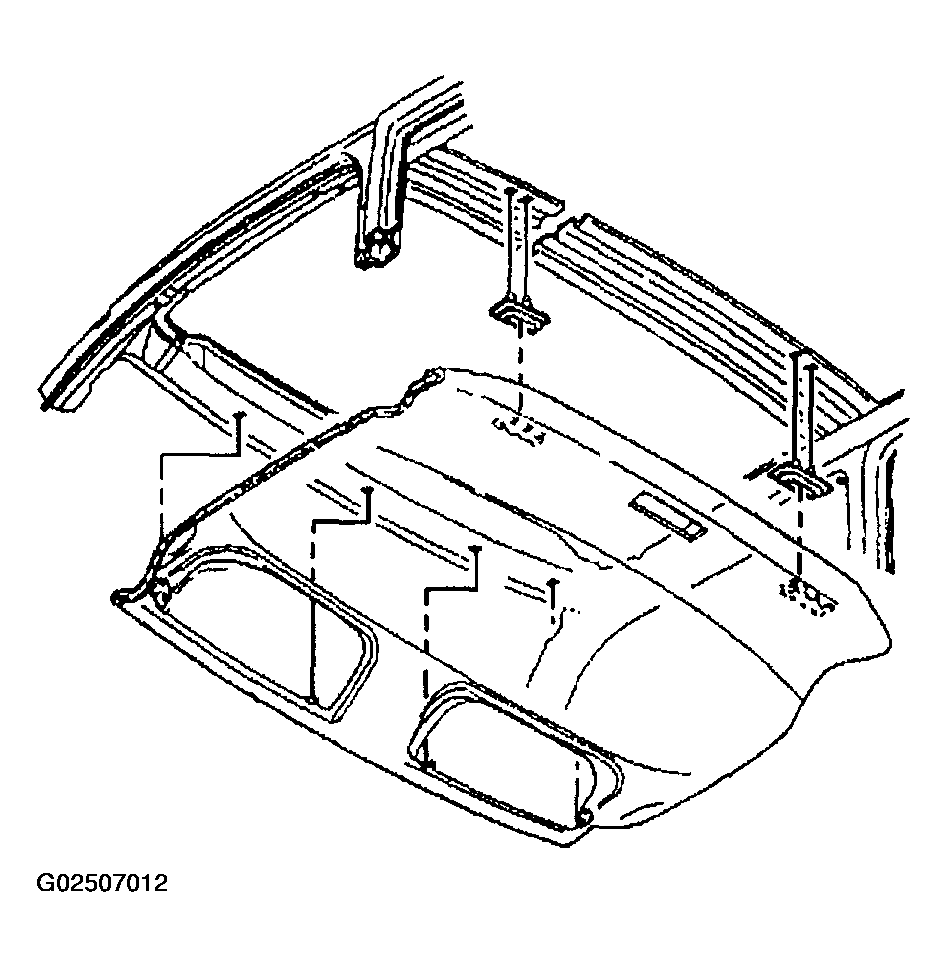

- Release the front headliner from the roof panel by separating the retaining strips.
- Remove the front headliner from the vehicle.
- Remove the right seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT -RIGHT FRONT .
- Remove the dome lamp from the rear headliner. Refer to DOME LAMP REPLACEMENT in Lighting Systems.
- Remove the sliding door track garnish molding. Refer to Garnish Molding Replacement - Sliding Door .
- Remove the coat hooks. Refer to Coat Hook Replacement .

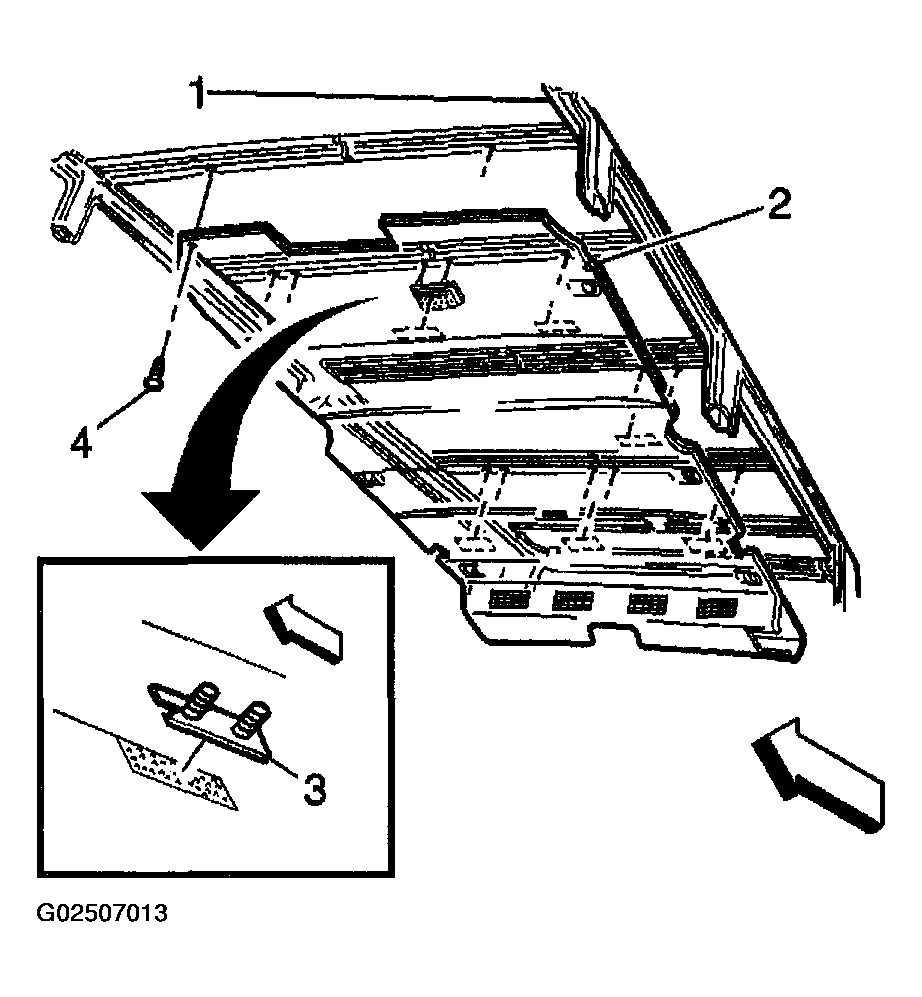

- Remove the 2 push-in retainers (4) at the front edge of the rear headliner (2).
- Detach the rear headliner (2) from the retaining strips (3).
- Remove the rear headliner (2) from the roof panel (1).
- With the aid of an assistant, remove the rear headliner from the vehicle.
