Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.

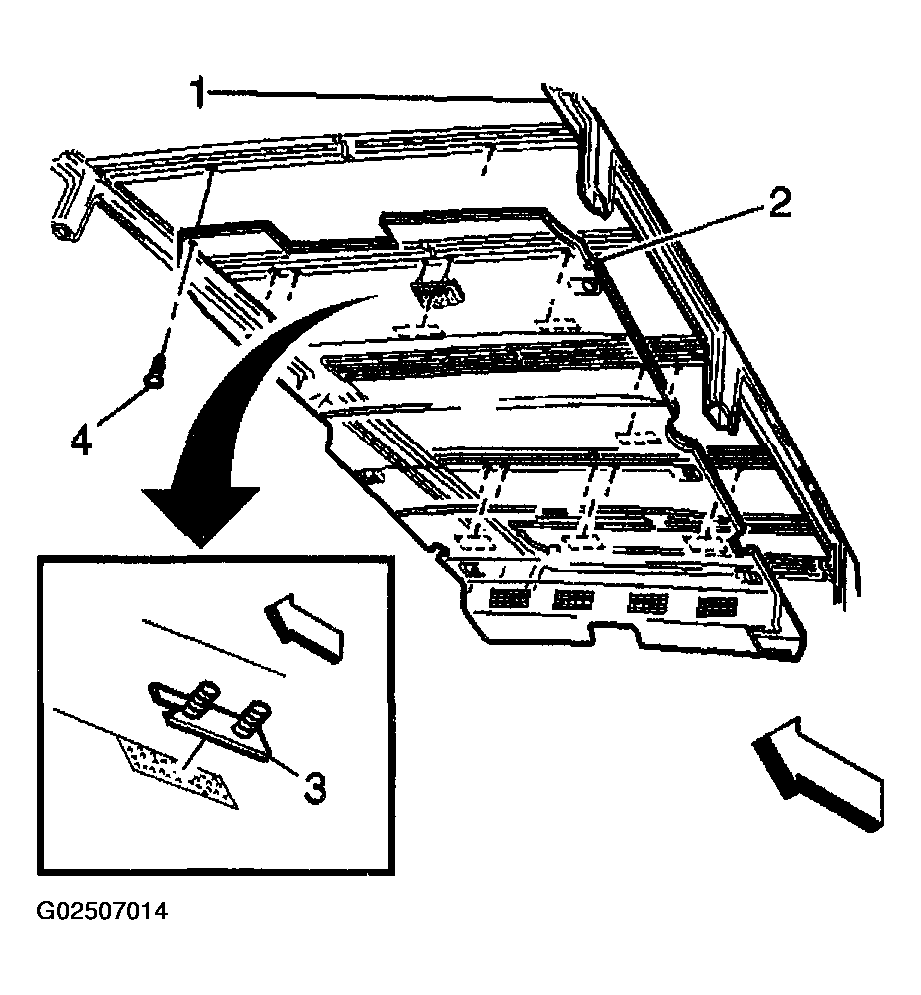

- In order to install the rear headliner to the roof panel perform the following:
- 1.1. With the aid of an assistant, position the rear headliner to the roof panel.
- 1.2. Attach the rear headliner to the retaining strips.
- 1.3. Install the 2 push-in retainers (4) at the front edge of the rear headliner.
- Install the coat hooks. Refer to Coat Hook Replacement .
- Install the sliding door track garnish molding. Refer to Garnish Molding Replacement - Sliding Door .
- Install the dome lamp to the rear headliner. Refer to DOME & READING LAMP BULB REPLACEMENT in Lighting Systems.
- Install the right seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT .

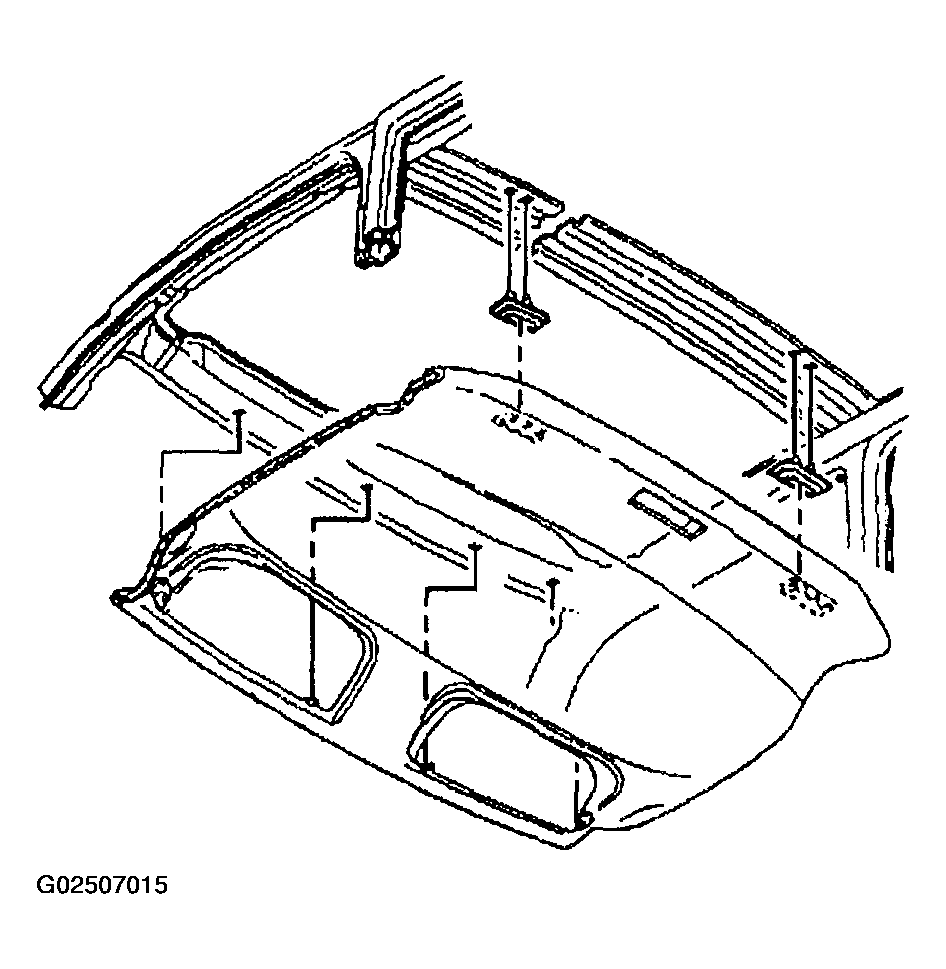

- Position the front headliner to the roof panel.
- Fasten the front headliner to the roof panel, ensuring that the retaining strips are fully engaged.
- Install the front side door opening frame garnish molding. Refer to Garnish Molding Replacement - Side Door Opening Frame .
- Refer to the following procedures in order to install the necessary moldings:
- Trim Replacement - Fourth Pillar Right
- Trim Replacement - Fourth Pillar Left
- Trim Replacement - Third Pillar Right
- Trim Replacement - Third Pillar Left
- Garnish Molding Replacement - RF Lock Pillar
- Garnish Molding Replacement - LF Lock Pillar
- Garnish Molding Replacement - Rear Upper
- Install the overhead console. Refer to Console Replacement - Overhead .
- Install the sunshades. Refer to Sunshade Replacement .
