Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retaining screws from the upper garnish molding.
  2. Use J 38778 in order to release the molding retainers.

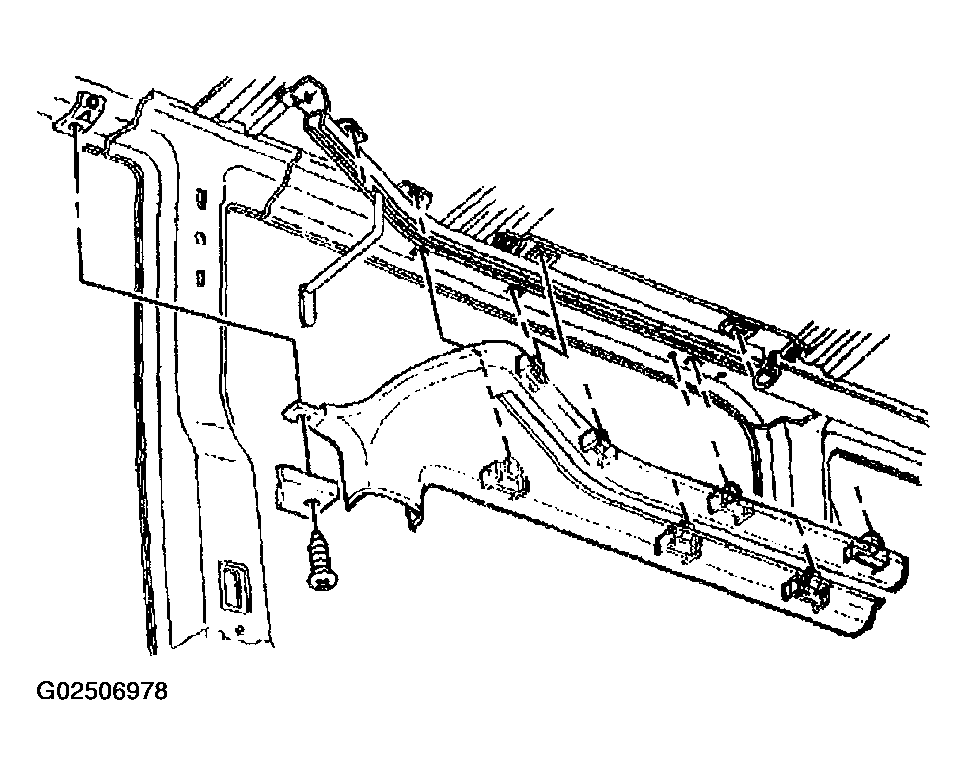

    Fig 1: Removing Upper Roller Track Garnish Molding
    G02506978Courtesy of GENERAL MOTORS CORP.
