Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fasteners with the slots in the body.
  2. Press the panel firmly into position, ensuring that all fasteners are fully seated.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the retaining screws to the upper garnish molding.

    Tighten

    Tighten the retaining screws to the upper garnish molding to 2 N.m (18 in. lb.).

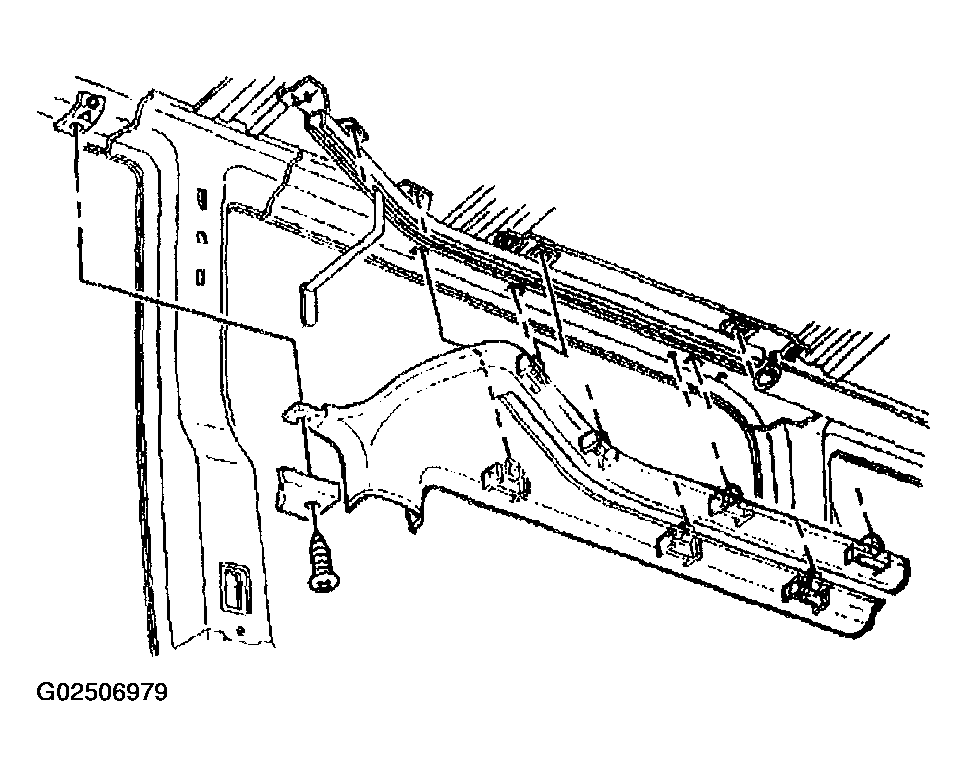

    Fig 1: Installing Upper Roller Track Garnish Molding
    G02506979Courtesy of GENERAL MOTORS CORP.
