Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door garnish molding to the vehicle:
    1. 1.1. Align the retainers to the holes in the door.
    2. 1.2. Press the panel in order to engage the retainers into the door.

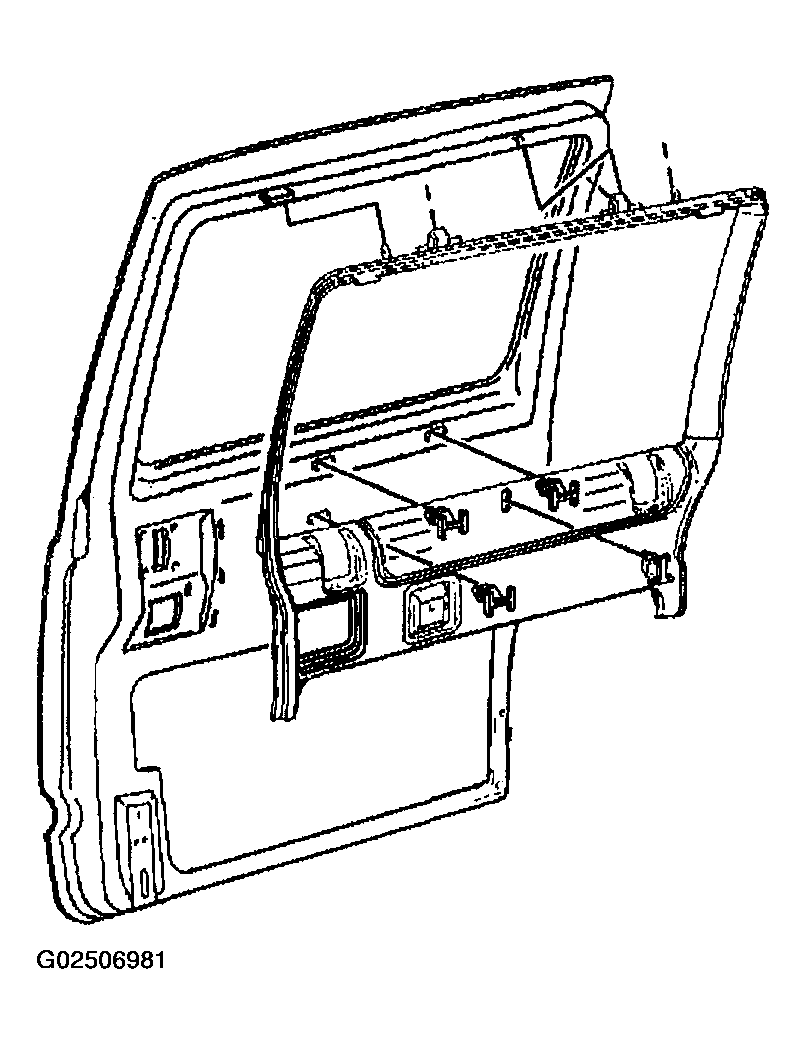

    Fig 1: Installing Sliding Door Garnish Molding
    G02506981Courtesy of GENERAL MOTORS CORP.
  2. Install the door handle bezel to the door.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the door handle bezel screws.

    Tighten

    Tighten the door handle bezel screws to 2 N.m (18 in. lb.).

  4. Install the swing-out window latch to the door, if equipped. Refer to WINDOW REPLACEMENT - SWING OUT .
