Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the garnish molding screw.
  2. Use the J 38778  in order to remove the door opening garnish molding on the retainers at the windshield pillar.
  3. Remove the molding from one retainer in the center of the door opening.

    This retainer will stay with the vehicle, not the molding.

  4. Slide the molding up past the following components in order to remove the molding from the vehicle:
    • The cowl side trim panel
    • The knee bolster
    • The instrument panel

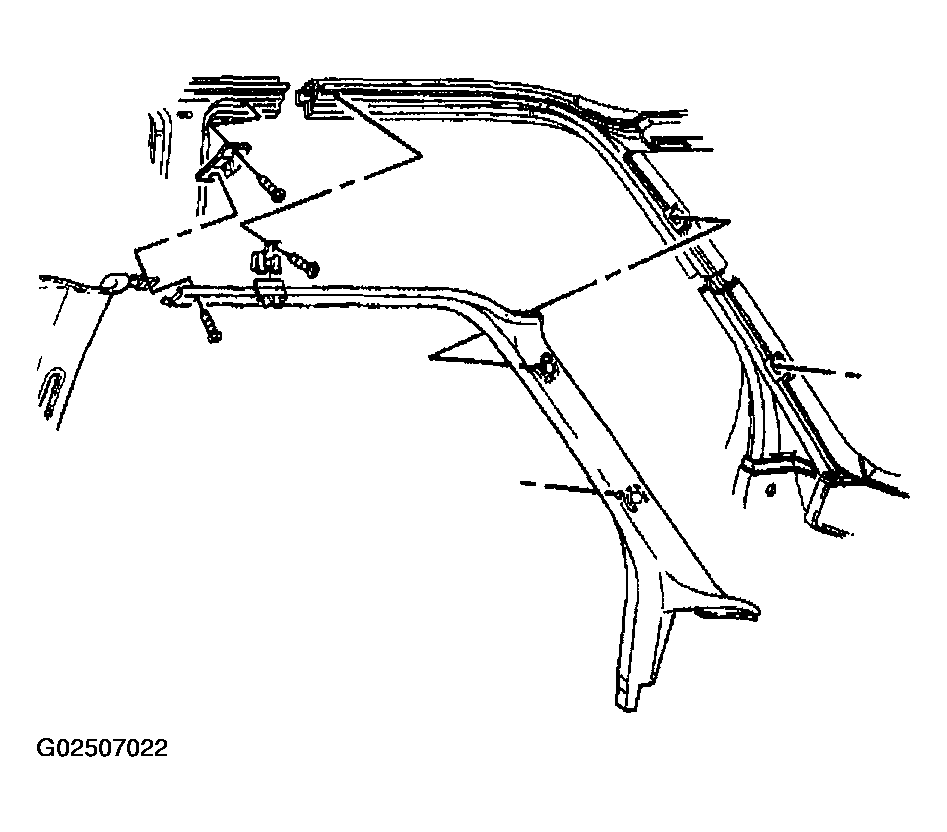

    Fig 1: Removing Side Door Opening Frame Garnish Molding
    G02507022Courtesy of GENERAL MOTORS CORP.
