Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the molding to the roof.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the roof retaining screws.

    Tighten

    Tighten the roof retaining screws to 2 N.m (18 in. lb.).

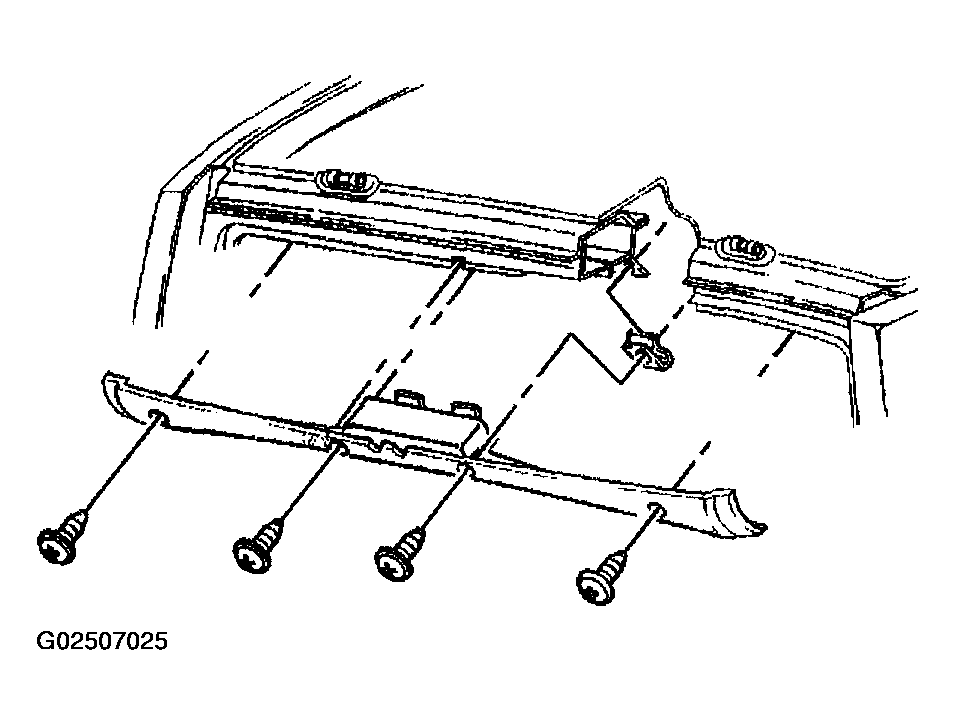

    Fig 1: Installing Rear Upper Garnish Molding
    G02507025Courtesy of GENERAL MOTORS CORP.
