Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the garnish molding screws.
  2. Remove the front passenger's seat belt upper retainer. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FR in Seat Belts.
  3. Remove the bolts that retain the assist handle to the pillar.

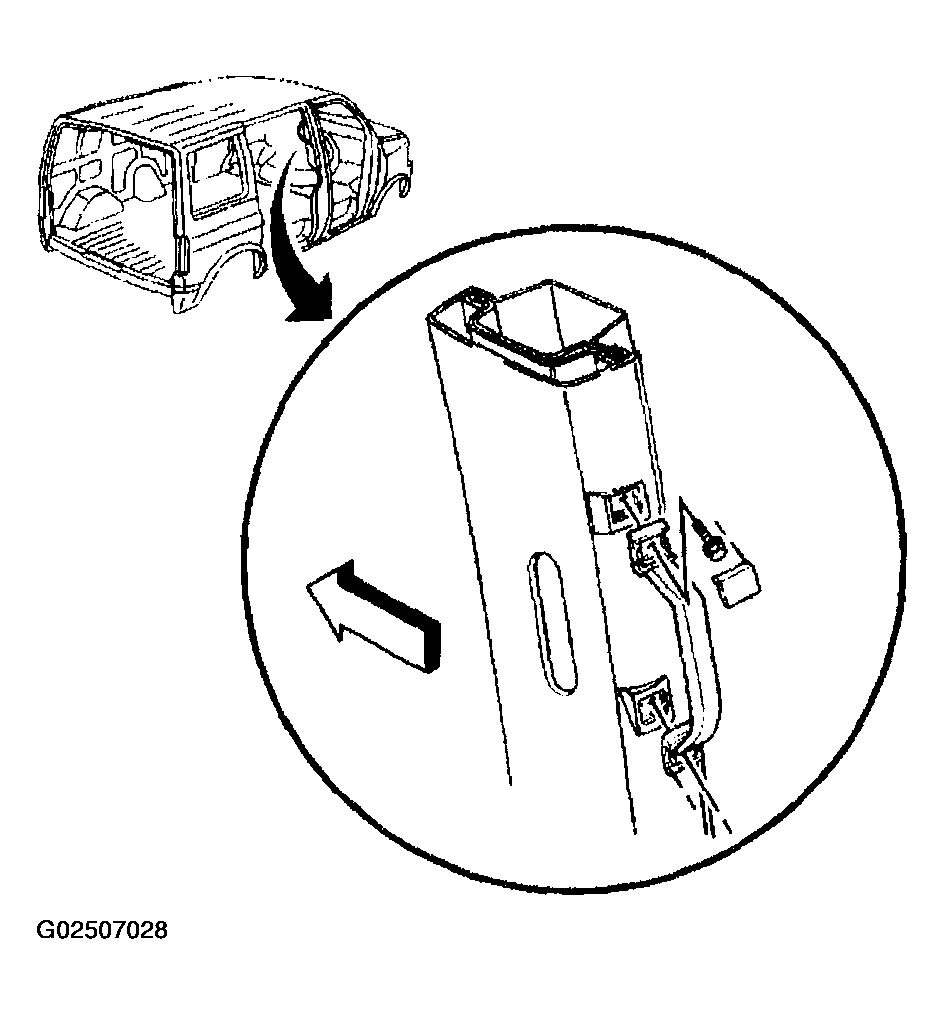

    Fig 1: Removing Screws Retaining Assist Handle To RF Lock Pillar
    G02507028Courtesy of GENERAL MOTORS CORP.
  4. Pull back on the garnish molding to release the fasteners.
  5. Remove the garnish molding.
  6. Disconnect the electrical connector from the rear side door stepwell lamp.

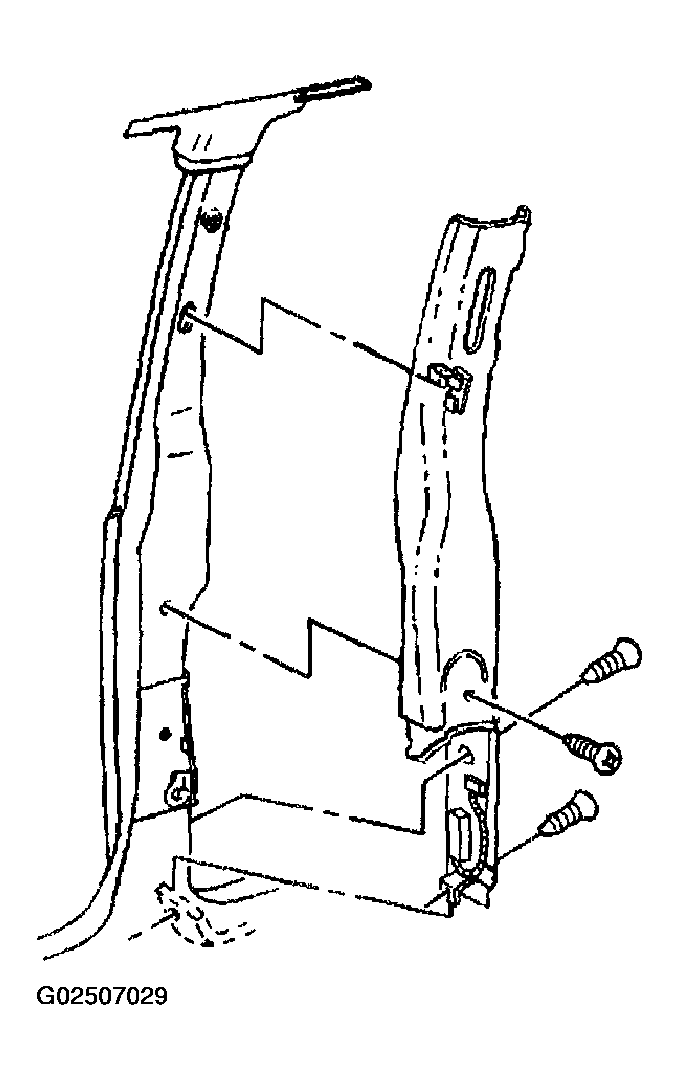

    Fig 2: Removing Garnish Molding Screws
    G02507029Courtesy of GENERAL MOTORS CORP.
